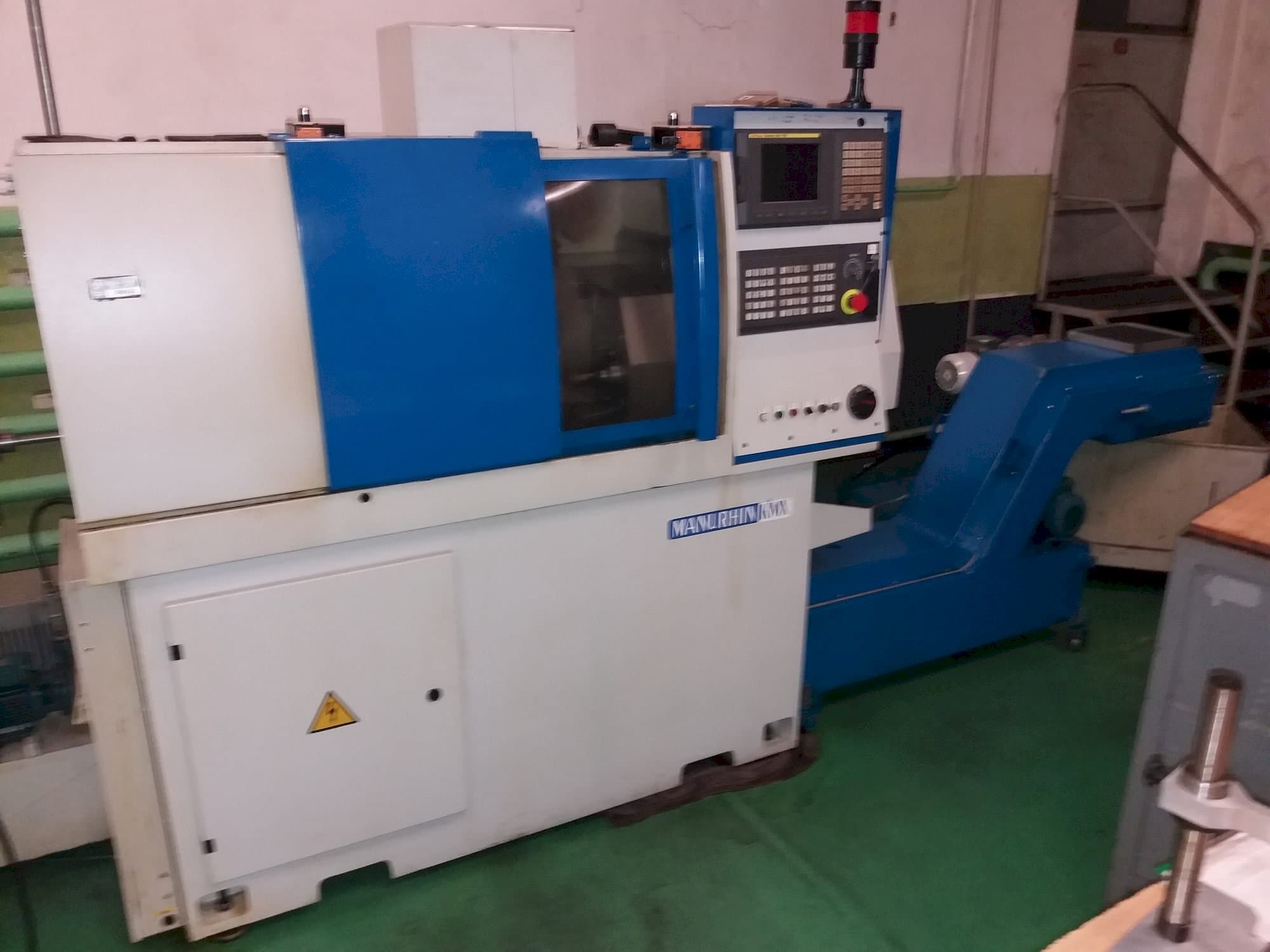

Manurhin KMX 413 Lathe machine

This Manurhin KMX 413 Lathe machine was manufactured in Czech Republic in 2004. This machine has been working for 13931 hours of witch 5700 are cutting hours. It is equipped with a GE FANUC Series 18i-TB control unit. This 6 axis machine includes a Bar feeder IEMCA Smart 320. The machine is in very good condition.

Overview

brand: Manurhin
year: 2004
MODEL: KMX 413
production hours: 13931
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Manurhin KMX 413

General Data

Measurements width: 6212 mm
Measurements height: 1784 mm
Machine weight: 2000 kg

Control Unit

Model: Series 18i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 6

Turret

Number of turrets: 1

Media

Power consumption: 26 kVA

Additional Equipment

- Bar feeder IEMCA Smart 320

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar diameter 13 mm
- - Spindle boring : 18 mm
- - Main spindle stroke : 130 mm
- - Main spindle motor power 3. 7/5. 5kw
- - Max diameter in sub-spindle : 13 mm
- - Live tool posts: 3
- - Driven tools rotation speed : 6 000 rpm
- - Fixed tool posts: 12
- - 4 linear cnc axis (x1, y1, z1, z2)
- - 2 rotating axis (c1, c2)
Qualitative Machine Benefits:
- - Very good condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
