MARLA - S-CUT 3010PL-SHE-MAR-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

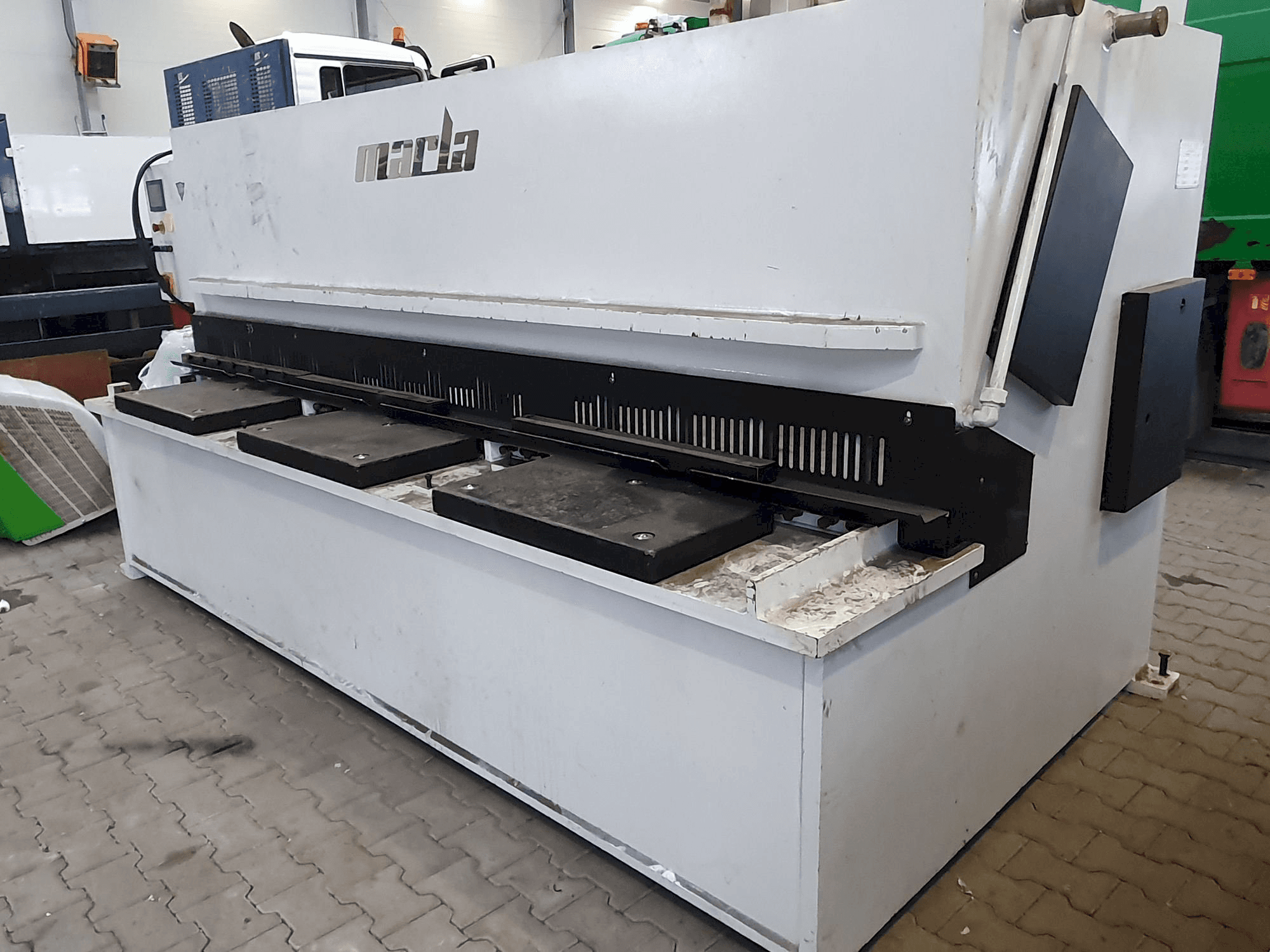

This MARLA S-CUT 3010 Shearing Machine was built in the year 2017 in Turkey. This machine can work with a cutting length 3100 mm and a Backgauge Force 1kW. It is operated through a CYBELEC CybTouch 6 control unit. This machine includes safety light curtains. It is in very good conditions and it is ready for tests.

Overview

brand: MARLA
year: 2017
MODEL: S-CUT 3010
application type: Shearing
Location: Poland
machine type: Hydraulic Shearing Machine
availability: Sold
control unit brand: CYBELEC

Technical Information - MARLA S-CUT 3010

General Data

Measurements width: 4200 mm
Measurements depth: 3600 mm
Measurements height: 2100 mm
Machine weight: 9000 Kg

Control Unit

Model: CybTouch 6
Brand: CYBELEC

Main drive

Throat: 50 mm
Backgauge adjustment: 1000 mm
Main motor power: 11 kW
Stroke: 13 rpm

Table

Outer length: 3515 mm
Outer width: 580 mm
Height adjustment: 865 mm

Media

Main electronic connection: 400 V / 50 Hz
Oil tank: 200 Lt.

Additional Equipment

- Safety light curtains included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cutting thickness: ms (450 n/mm²) – 10 mm, ss (700 n/mm²) – 6 mm
- - Cutting angle – 1 deg. 30’
- - Cutting length – 3100 mm
- - Holddown force – 22 tons
- - Back gauge force – 1kw
- - Back gauge speed – 200 mm/sec
- - Front armas – 2 psc
- - Holddowns – 16 pcs
Qualitative Machine Benefits:
- - Very good condition.
- - Not used at the moment but it could be prepared for test. Ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
