Mazak - Integrex 400-IV SCZ-TUR-MAZ-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

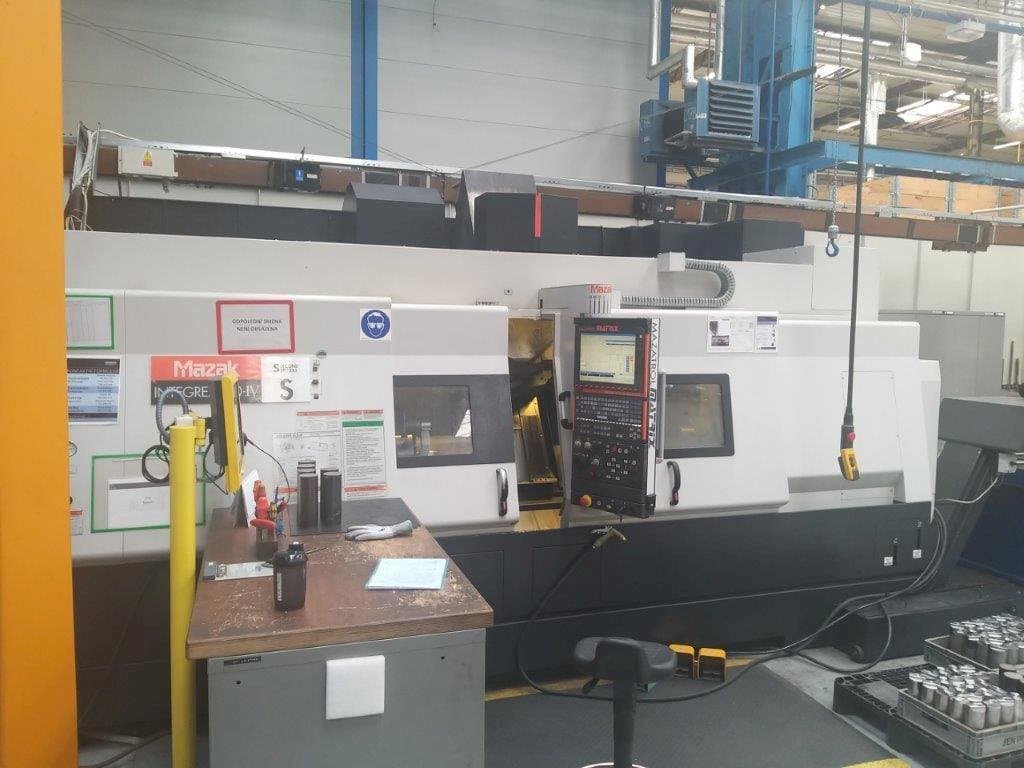

Mazak Integrex 400-IV S lathe machine

This Mazak Integrex 400-IV S lathe machine was manufactured in 2009 in Japan. The 6-axis machine is operated through a Mazak Mazatrol Matrix control unit. It works with a spindle speed from 35 to 3300 rpm. It has been on for 52137 hours. This machine is in perfect condition.

Overview

brand: Mazak
year: 2009
MODEL: Integrex 400-IV S
production hours: 52137
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400-IV S

General Data

Measurements width: 5110 mm
Measurements depth: 2191 mm
Measurements height: 2798 mm
Machine weight: 13000 kg

Control Unit

Model: Mazatrol Matrix
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 35 - 3300 1/MIN
Number of axis: 6

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: +/- 115 mm
Z-AXIS Movement: 1585 mm
B-AXIS Movement: -30 /+195 DEGREES mm

Tools

Slots in storage: 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 760 mm
- - Maximum cutting length 1524 mm
- - Maximum cutting diameter 420mm
- - Bar capacity 105 mm
- - Milling 12000 rpm
- - Rapid feedrates xyz: 38 x 26 x 38m/min
- - Spindle power (cont/30min) 30 kw
- - Sub-spindle speed 4000 rpm, power 26 kw, c axis 0. 001 degrees
- - 3 jaw chuck, tool setter, coolant, swarf conveyor, b axis
Qualitative Machine Benefits:
- - Very good condition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
