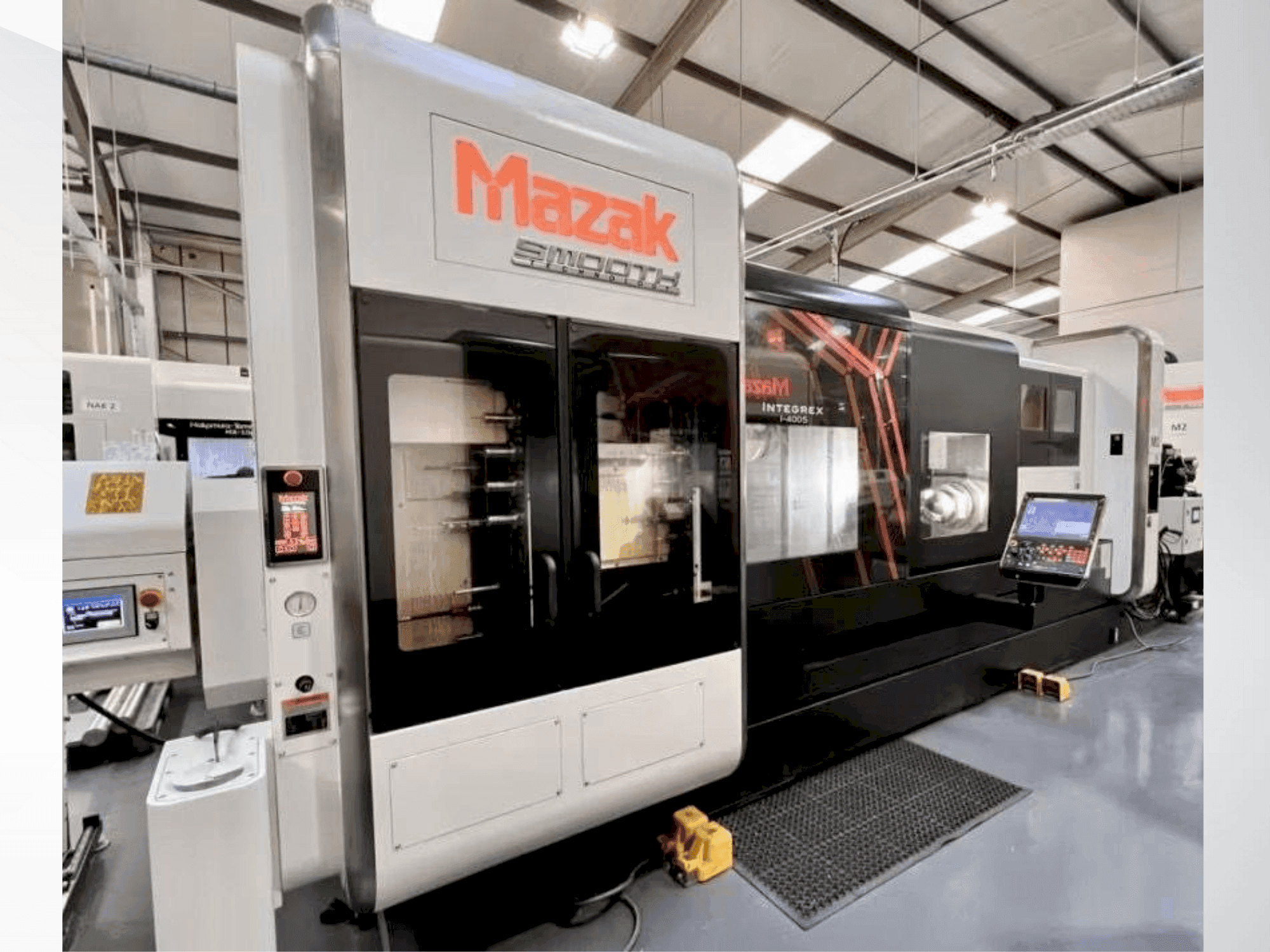

Front view of Mazak INTEGREX i-400 S  machine

Mazak - INTEGREX i-400 SGB-MIL-MAZ-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis Mazak INTEGREX i-400 S was manufactured in 2018 and features advanced Mazatrol SMOOTH X Control and a full 5-axis capability. It offers a maximum machining diameter of ø658 mm and a length of 2,497 mm. Equipped with a 12" main spindle chuck and a rapid traverse rate up to 50 m/min on the X-axis. Ideal for complex and precise machining tasks. For more information about this universal machining center, please reach out to us.

Overview

  • brand: Mazak
  • year: 2018
  • MODEL: INTEGREX i-400 S
  • application type: Turning
  • Location: United Kingdom
  • machine type: Turn-Mill Centre
  • availability: Sold
  • control unit brand: Mazak

Technical Information - Mazak INTEGREX i-400 S

Control Unit

  • Brand: Mazak
  • Model: Mazatrol SMOOTH X

Main drive

  • Spindle speed range: 12000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 615 mm
  • X-AXIS Rapid traverse: 50 m/min
  • Y-AXIS Movement: 260 mm
  • Y-AXIS Rapid traverse: 40 m/min
  • Z-AXIS Movement: 2563 mm
  • Z-AXIS Rapid traverse: 40 m/min
  • W-Axis Movement: 2175 mm
  • W-Axis Rapid traverse: 30 m/min
  • B-AXIS Movement: -30° to 210° MM

Workpiece

  • Workpiece drm over bed: 658 mm
  • Workpiece drm: 658 mm
  • Workpiece x: 2497 mm

Tools

  • Max weight: 12 kg
  • Max tool diameter: 90 mm
  • Max tool length: 400 mm

    Additional Equipment

    • - Hydrafeed MSV110 Barfeed
    • - Milling Spindle Type: Spindle turret with ATC

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Bar work capacity: ø102 mm
        • - Main spindle chuck size: 12"
        • - Main spindle nose: a2-8
        • - Main spindle bore: 112 mm
        • - Bearing id: 150 mm
        • - Second spindle hydraulic chuck: 10" through-hole chuck b-210a0815x
        • - Second spindle nose: a2-8
        • - Second spindle bore: 91 mm
        • - Bearing id: 130 mm
        • - Max. Milling spindle torque: 120 n:m
      • Qualitative Machine Benefits:
        • - Turning tool shank height: 25 mm
        • - Boring bar shank diameter: 40 mm
        • - Tool storage capacity: 72 tools
        • - Precision control with mazatrol smooth x, high torque milling spindle for robust operations
        • - No tooling included

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
