Mazak Quick Turn Smart 100 S

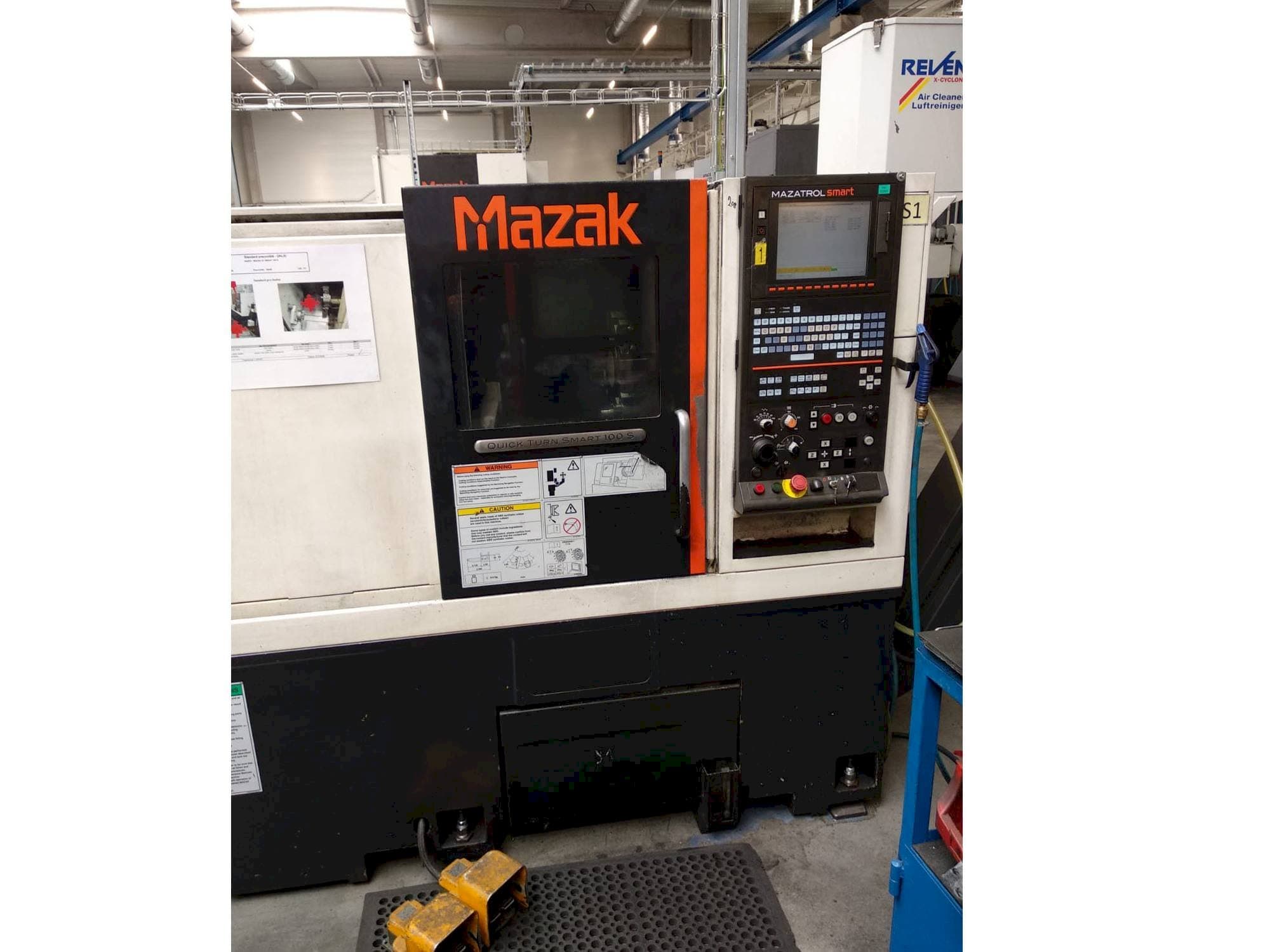

This Mazak Quick Turn Smart 100 S lathe was built in 2011 in Singapore. This 2 axis machine has a record of 36447 production hours. It is operated through a MAZATROL smart control unit. This machine works with a spindle speed up to 6000 rpm and a machining length 310 mm. It is in very good conditions.

Overview

brand: Mazak
year: 2011
MODEL: Quick Turn Smart 100 S
production hours: 36447
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn Smart 100 S

General Data

Measurements width: 1700 mm
Measurements depth: 1630 mm
Measurements height: 1800 mm
Machine weight: 3500 kg

Control Unit

Brand: MAZATROL
Model: smart

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: (30min/100%) 11/7.5 kW
Number of axis: 2

Movement

X-AXIS Movement: 200 mm
X-AXIS Rapid traverse: 33 m/min
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 340 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 50/60 hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing over bed 580 mm
- - Maximum machining diameter 280 mm
- - Maximum machining length 310mm
- - Maximum bar work capacity 52 mm
- - Chuck size 6 in
- - Tailstock, coolant
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
