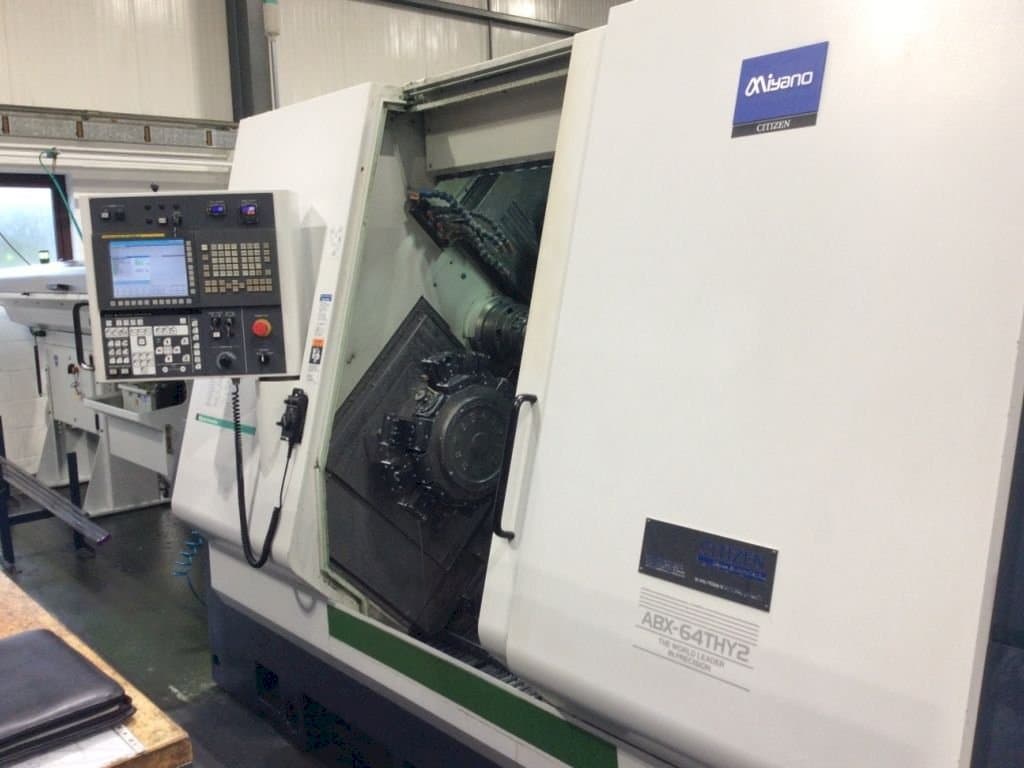

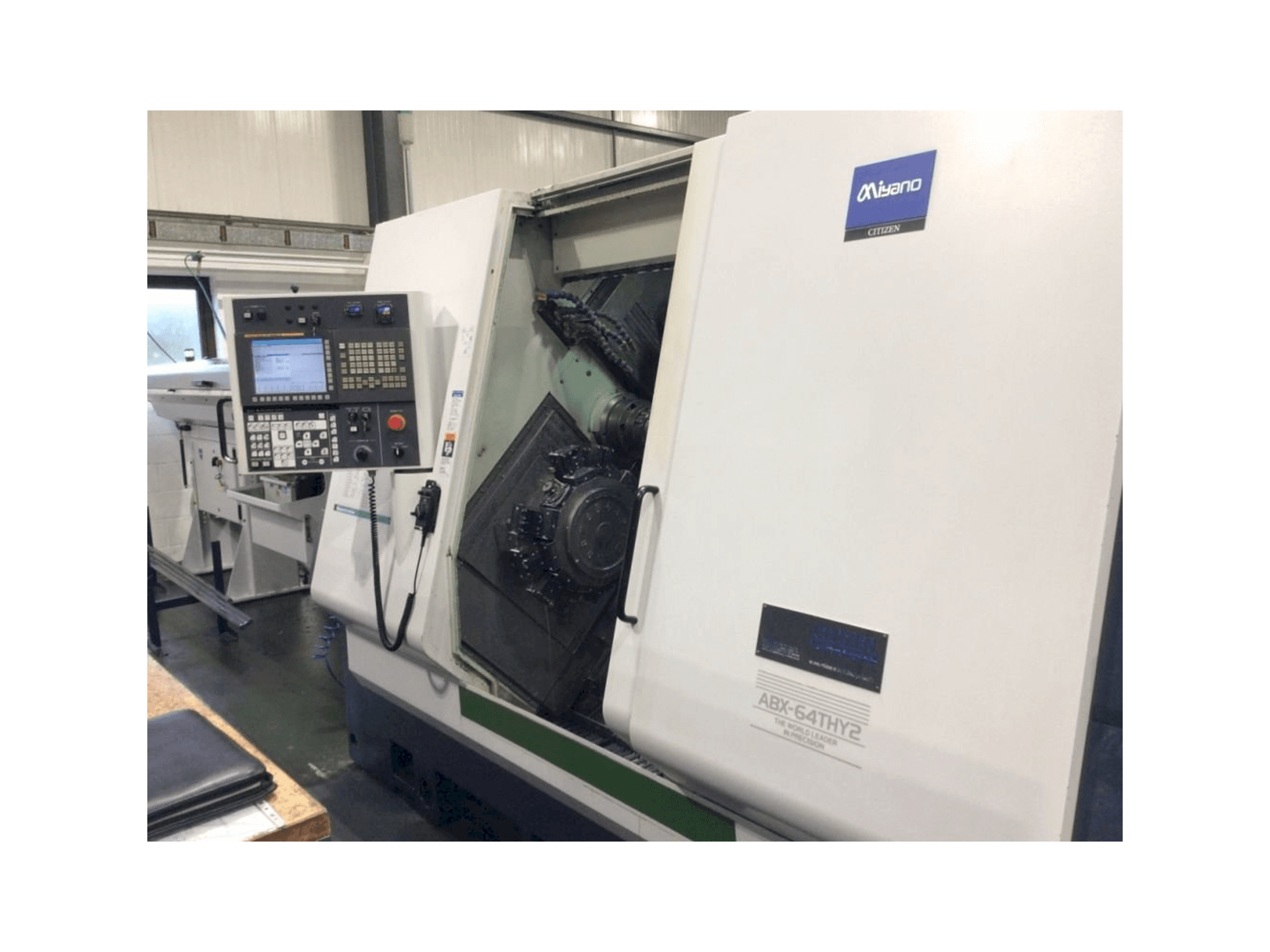

Miyano ABX 64 THY2 Lathe

This Miyano ABX 64 THY2 Lathe was manufactured in 2014 in Japan and has been operative for 18000 hours. Equipped with a FANUC Series 31i Model B Control unit, this machine stands out for being a 3 turret, twin spindle lathe. The machine comes with tooling value around 30000€ worth.

Overview

brand: Miyano
year: 2014
MODEL: ABX 64 THY2
production hours: 18000
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Miyano ABX 64 THY2

General Data

Measurements width: 3290 mm
Measurements depth: 2204 mm
Measurements height: 2220 mm
Machine weight: 11350 kg

Control Unit

Model: Series 31i Model B
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 190 mm
Y-AXIS Movement: 80 mm
Z-AXIS Movement: 270/550 mm

Turret

Number of turrets: 3

Tools

Slots in storage: 36
Max tool diameter: 40 mm

Media

Main electronic connection: 400 V
Power consumption: 49 kVA

Additional Equipment

- Hydrajet MHP30-1000-3 High Pressure Coolant System
- Iemca Master 865-33, 3 Metre Bar Feed
- Large Selection of Tooling (see list)
- 2 x 6" Hydraulic Chucks

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle 1 - 5000rpm
- - Spindle 2 - 4000rpm
- - 64mm bar work
Qualitative Machine Benefits:
- - Annually serviced

Extra information

- Available for download additional tooling list

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
