MORI SEIKI - NL 2000 SY /500DE-TUR-MOR-2007-00001

Name: MORI SEIKI NL 2000 SY /500
Brand: MORI SEIKI
SKU: DE-TUR-MOR-2007-00001
Price: 60000 EUR
Availability: InStock

60,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NL 2000 SY /500 For Sale | gindumac.com

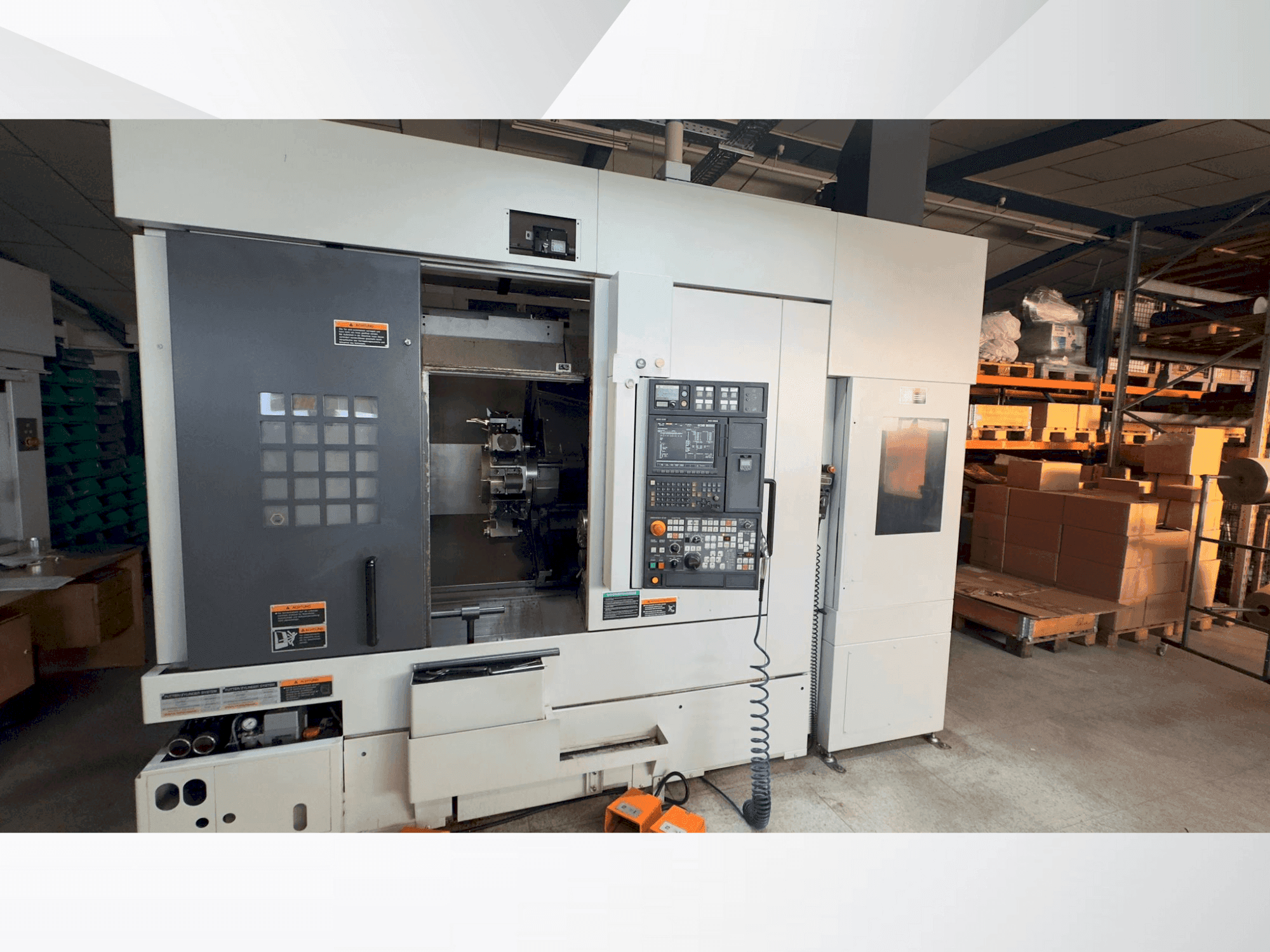

This 4-axis MORI SEIKI NL 2000 SY /500 turn-mill centre was manufactured in 2007. Ideal for precision machining, it features a robust design and advanced control system. If you are looking to get high quality turning and milling capabilities consider the MORI SEIKI NL 2000 SY /500 machine we have for sale. Contact us for more information.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NL 2000 SY /500
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Immediately

Technical Information - MORI SEIKI NL 2000 SY /500

General Data

Measurements width: 2050 MM
Measurements depth: 2695 MM
Measurements height: 2120 MM
Machine weight: 5800 KG

Main drive

Spindle speed range: 5000 / Sub-spindle: 6000 rpm 1/MIN
Spindle motor power: 15/15/11 kW Sub-spindle: 11/7.5 kW
Spindle bore: 73 mm / Sub-spindle: 43 mm
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
X-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Movement: 100 (±50 mm)
Y-AXIS Rapid traverse: 10000 mm/min
Z-AXIS Movement: 590 mm
Z-AXIS Rapid traverse: 30000 mm/min
B-AXIS Movement: 564 mm
B-AXIS Rapid traverse: 400 min⁻¹

Workpiece

Workpiece drm over bed: 923.8 mm (579.8 mm with front cover)
Workpiece drm over support: 755 mm
Workpiece drm: 356 mm

Additional Equipment

- Gantry loader for automatic loading and unloading

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Standard turning diameter: 275 mm
- - Max. Turning length: 510 mm
- - Max. Bar capacity: 65 mm
- - Number of tool stations: 12 (10)
- - Shank height for square tool: 25 mm
- - Boring bar tool shank: main spindle: max. 50 mm / sub-spindle max. 32 mm
- - Turret switching time: 0. 25 s
- - Spindle nose: main spindle: jis a2-6 / sub-spindle: jis a2-5
- - Spindle bearing (inner diameter): main spindle: 120 mm / sub-spindle: 85 mm
- - Drive motor for driven tools: 5. 5/5. 5/3. 7 kw
Qualitative Machine Benefits:
- - Feed motor power: x/y/b: 2. 0 | z: 3. 5 kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
