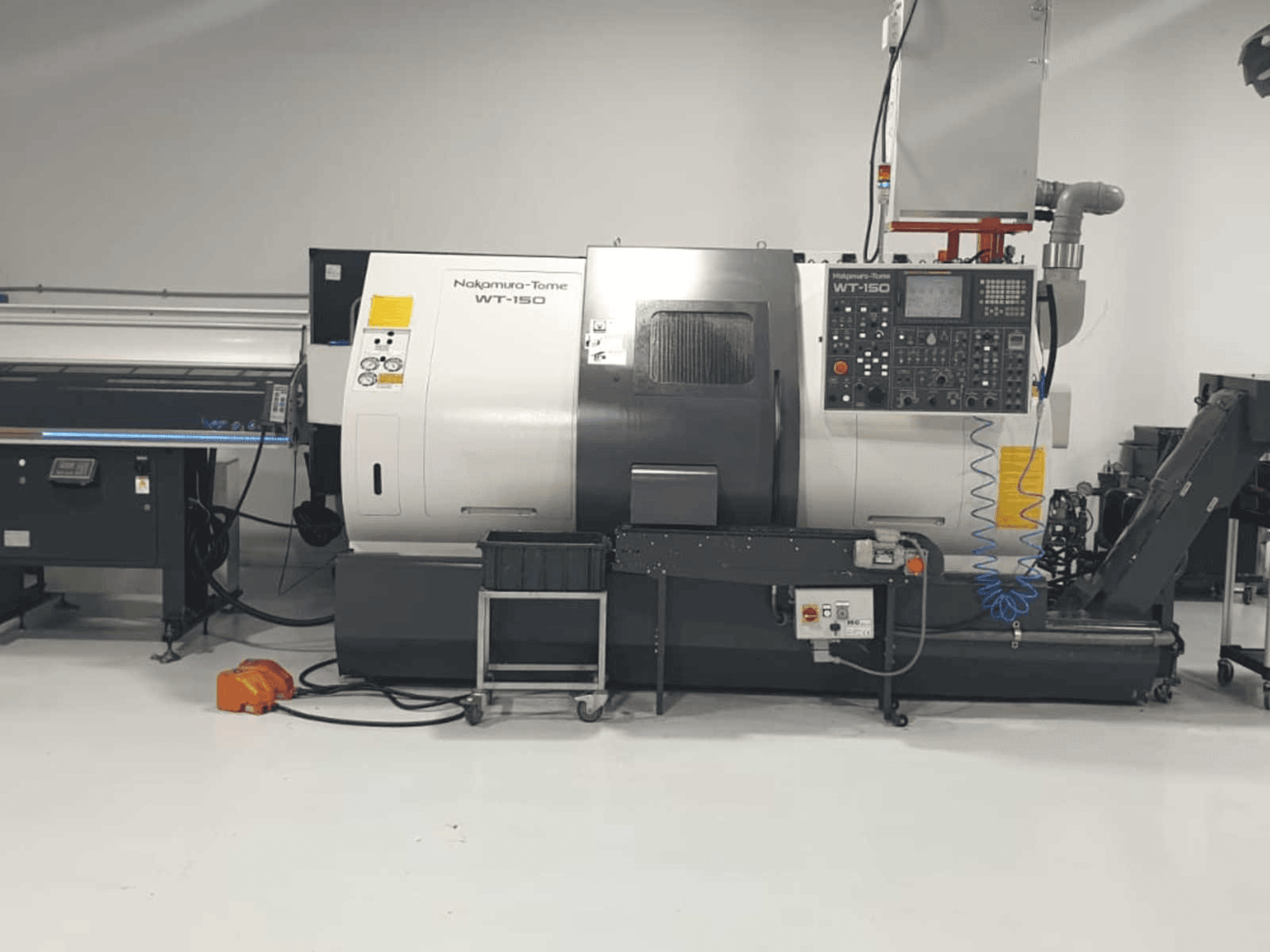

NAKAMURA-TOME WT-150 twin spindle twin turret turning center machine

This NAKAMURA-TOME WT-150 twin spindle twin turret turning center machine was manufactured in the year 2011 in Japan and has 55938 production hours of which 27243 are cutting hours. It is equipped with a FANUC 18i-TB 2-PATH control unit. The machine has a spindle speed of 5000 rpm, it includes a bar feeder, chip conveyor, transformer, and tool holders made by Heimatec GmbH, Germany.

Overview

brand: NAKAMURA-TOME
year: 2011
MODEL: WT-150
production hours: 55938
application type: Turning
Location: Israel
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - NAKAMURA-TOME WT-150

General Data

Measurements width: 3615 mm
Measurements depth: 1985 mm
Measurements height: 1860 mm
Machine weight: 8900 kg

Control Unit

Model: 18i-TB 2-PATH
Brand: FANUC

Main drive

Spindle speed range: 5000 1/MIN

Tools

Number of stations: 24

Additional Equipment

- The machine includes a bar feeder, chip conveyor, transformer and tool holders made by heimatec GmbH, Germany

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter: 190 mm
- - Standard turning diameter: 170 mm
- - Distance between centers: 200 - 750 mm
- - Max. Turning length: 515 mm
- - Bar capacity: 51 - 65 mm
- - Chuck size (both): 165 mm
- - 12 milling stations in all turret (12/24)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
