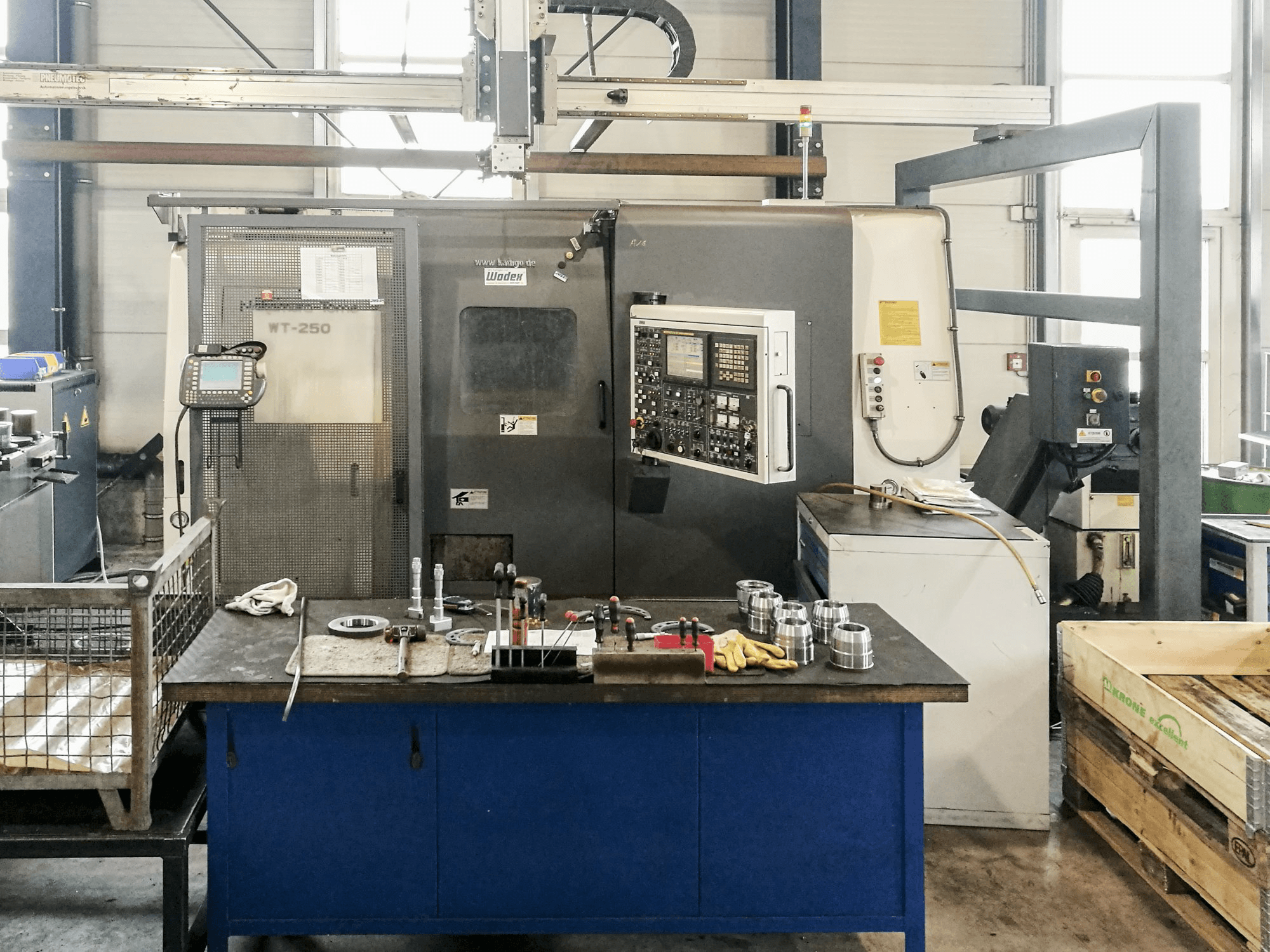

NAKAMURA WT-250 Machining Center

This NAKAMURA WT-250 Machining Center from Japan has a working record of 50500 production hours and was manufactured in 2006. Operated through a FANUC 18i-TB Control unit, this machine incorporated two BMT 65 live tools as well as a workpiece loader, supporting process automation. During the past, this model has mainly worked with stainless steel bars with up to 90 mm of diameter, producing piston rods for the automotive industry. Due to regular inspections, this machine is in good working conditions.

Overview

brand: NAKAMURA
year: 2006
MODEL: WT-250
production hours: 50500
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - NAKAMURA WT-250

General Data

Measurements width: 5000 mm
Measurements depth: 2500 mm
Measurements height: 3000 mm
Machine weight: 6000 kg

Control Unit

Brand: FANUC
Model: 18i-TB

Main drive

Number of spindles: 2
Spindle speed range: 4500 1/min

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 105 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece drm: 210 mm
Workpiece x: 400 mm
Workpiece y: 300 mm
Workpiece z: 600 mm
Workpiece weight: 2x 700 kg

Turret

Number of turrets: 24
Max tool length: 400 mm

Tools

Max weight: 10 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Main electronic connection: 380 V
Power consumption: 75 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 2x Driven tools BMT 65
- Workpiece loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
