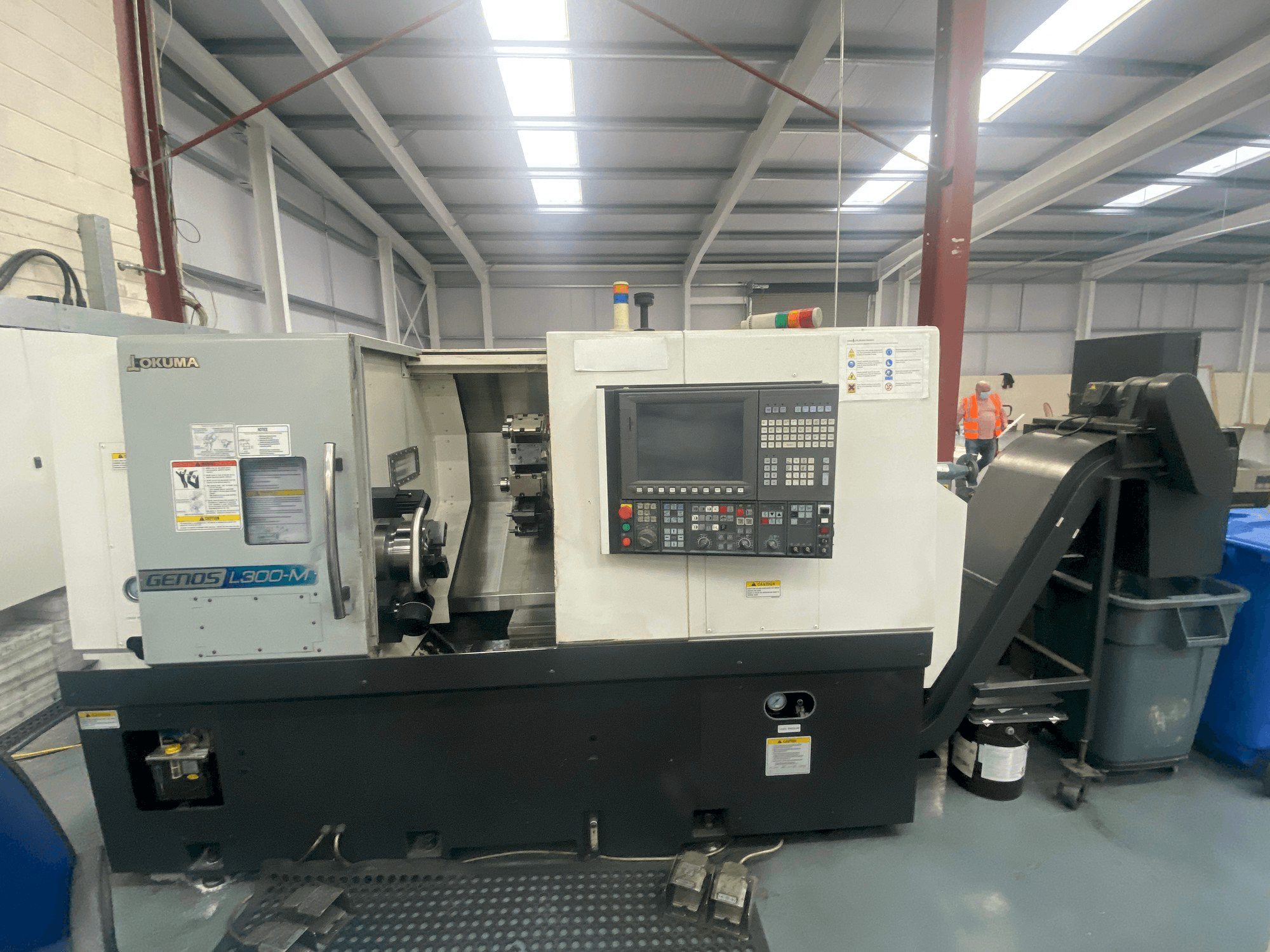

Okuma Genos L300MW Lathe

This Okuma Genos L300MW Lathe was made in Taiwan in 2013. It shows 6705 operating hours. It is equipped with a control unit of the same brand. This 4 axis machine can works with a spindle speed up to 3000 rpm. Includes tool holders with driven holders, sets of chuck jaws and a machine manual. It has been working for medical device industry. Very Good Condition.

Overview

brand: Okuma
year: 2013
MODEL: Genos L300MW
production hours: 6705
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma Genos L300MW

General Data

Measurements width: 3030 mm
Measurements depth: 2240 mm
Measurements height: 2210 mm
Machine weight: 5300 KG

Control Unit

Model: OSP-P300L-R
CNC main language: ENGLISH
CNC language customizable: Yes
Brand: OKUMA

Main drive

Number of spindles: 2
Spindle speed range: 3000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 237 mm
Z-AXIS Movement: 460 mm
C-AXIS Movement: 360 Deg MM

Workpiece

Workpiece drm: 300 mm
Workpiece z: 150 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 3 x 380V / 60Hz
Power consumption: 25.2 kVA
Chip conveyor: Yes

Additional Equipment

- Tool Holders Including Driven Holders
- Sets of Chuck Jaws
- 250mm Hydraulic Chuck on Main Spindle
- 150mm Hydraulic Chuck on Sub Spindle
- Manual Tool Setter
- Shamchully 4 Jaw Chuck
- Transformer
- Set of Collets

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Sub spindle lathe
- - 12 station driven tool turret
- - Full c axis
Qualitative Machine Benefits:
- - Machine manual
- - Low hours
- - Very good condition
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

GENOS-L-E-7a-300Mar2015.pdf
