➤ Used Okuma LB 15-II M For Sale | gindumac.com

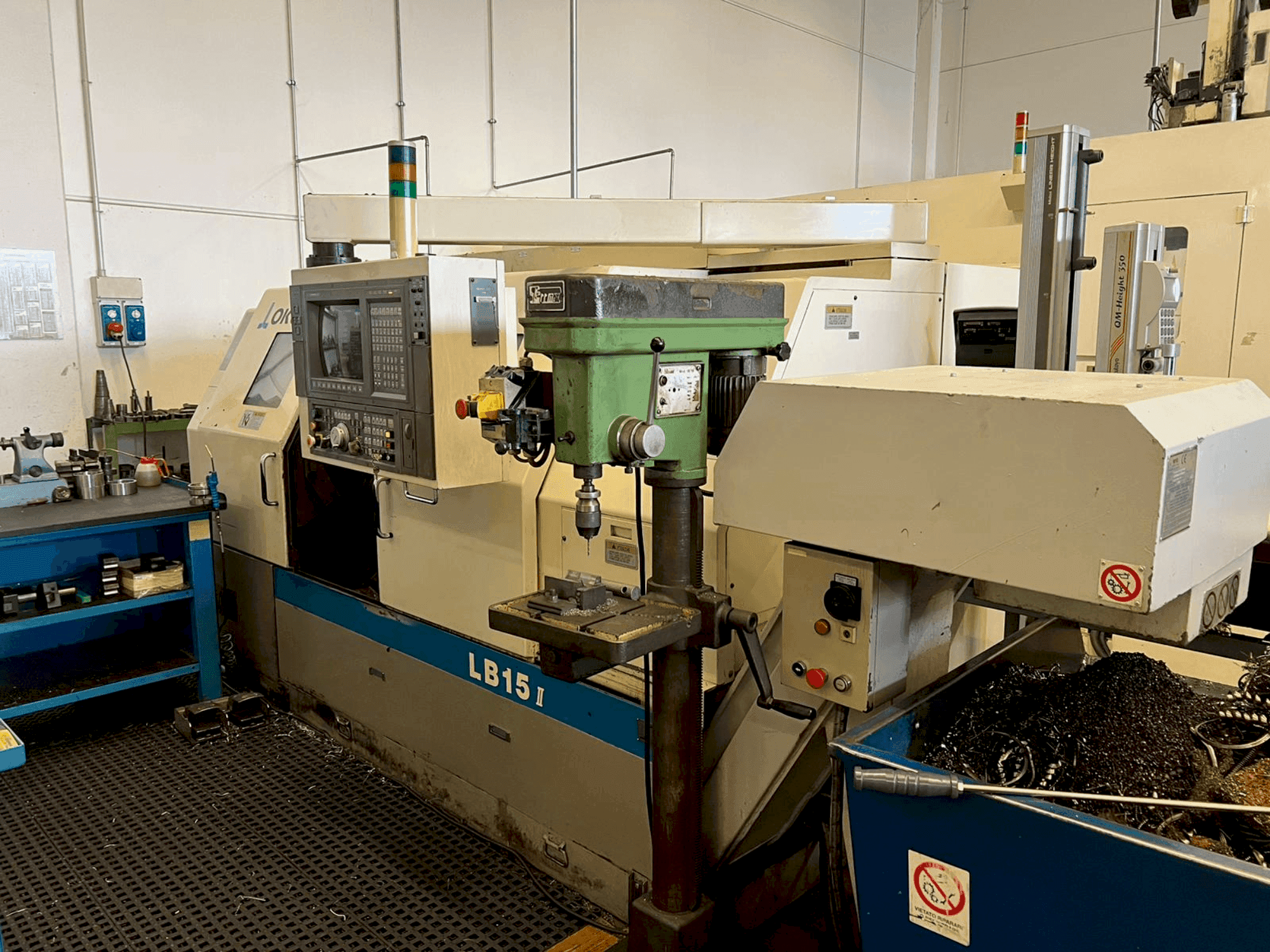

This 3-axis Okuma LB 15-II M horizontal turning machine was manufactured in 1995. It features an OSP 7000 L control, a 12-station tool holder, hydraulic tailstock, and a chip removal system. The machine supports a maximum turning diameter of Ø 340 mm and a distance between centers of 1020 mm. It's equipped with a spindle speed up to 3500 rpm and a rapid feed rate on the Z axis of 20,000 mm/min. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: Okuma
year: 1995
MODEL: LB 15-II M
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: OKUMA

Technical Information - Okuma LB 15-II M

General Data

Measurements width: 1895 MM
Measurements depth: 3485 MM
Measurements height: 2030 MM
Machine weight: 5900 KG

Control Unit

Model: OSP 7000 L
Brand: OKUMA

Main drive

Spindle speed range: 45 - 3500 1/MIN
Spindle motor power: 15/11 kW - 20/15 hp (20 min/cont.)
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
X-AXIS Working Feed: 0.001 - 1,000,000 mm/rev
X-AXIS Rapid traverse: 15,000 mm/min
Z-AXIS Movement: 1020 mm
Z-AXIS Working Feed: 0.001 - 1,000,000 mm/rev
Z-AXIS Rapid traverse: 20,000 mm/min
C-AXIS Movement: 360° (0.001° unit) MM
C-AXIS Working Feed: 200 min⁻¹

Workpiece

Workpiece drm: 530 mm
Workpiece x: 1000 mm

Additional Equipment

- Self-centering: 250 mm SMW AUTOBLOK
- Tool Presetting
- 12-station Tool Holder
- Hydraulic Tailstock
- Chip Removal System
- Lighting System
- ll necessary documentation: Operating and Maintenance Manual, Programming Manual, Electrical Schematics Manual

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C-axis rapid feed rate: 200 min⁻¹
- - Simultaneous tri-axial control (x, z, and c axes)
- - Linear interpolation and circular interpolation
- - Speed control: direct sb control with 4 digits
- - Manual intervention mechanism: adjustable from 50 to 200%
- - Various drilling and cutting cycles with repeat function
- - Tailstock spindle diameter: 90 mm
- - Conical hole of tailstock spindle: cm5
- - Tailstock spindle travel: 120 mm
- - Power supply voltage: 400 v - 50 hz
Qualitative Machine Benefits:
- - Machine has always been maintained by the manufacturer and is in excellent working condition

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
