➤ Used OKUMA LB300 - 2014 - Lathe For sale | gindumac.com

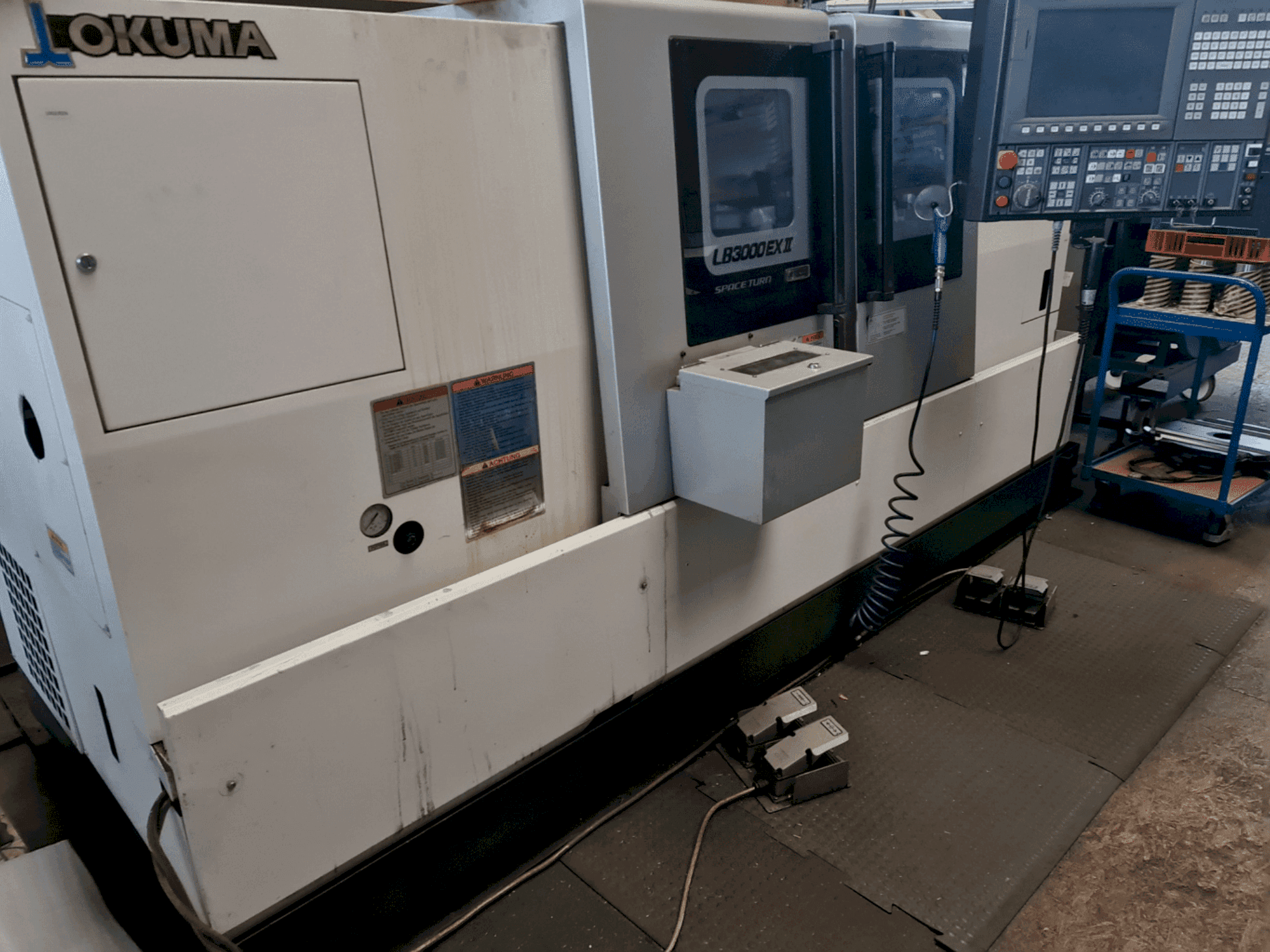

This 3-Axis OKUMA LB3000 EX II lathe was manufactured in 2014, equipped with an OSP-P300L control unit for precision and efficiency. It features a main spindle with a speed range up to 5000 1/min and a 12-station tool turret. The machine offers a c-axis resolution of 0.001° and a rapid traverse on the NC tailstock of 12 m/min. Additional features include a 3-jaw power chuck and a hinged belt chip conveyor. Reach out for further details regarding this lathe.

Overview

brand: Okuma
year: 2014
MODEL: LB3000 EX II
production hours: 12781
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma LB3000 EX II

General Data

Measurements depth: 1000 mm

Control Unit

Model: OSP-P300L
Brand: OKUMA

Main drive

Spindle speed range: 45-5000 rpm 1/MIN
Spindle bore: 80 mm
Number of axis: 3

Workpiece

Workpiece drm over bed: 250 mm
Workpiece weight: 5.8 kg

Turret

Number of turrets: 1

Tools

Number of stations: 12

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- hollow clamping cylinder diameter 70mm; 47 kN
- 3-jaw power chuck: bore diameter 75mm, outside diameter 275mm, max. speed 4200 1/min, confirmation force 43 kN, incl. base jaws and t-nuts
- Hinged belt chip conveyor: discharge height approx. 1200mm, chip discharge to the right, without chip cart, bed length 1000mm
- submersible pump with motor
- reinforced coolant pump
- Interface bar feeder magazine
- workpiece catcher for parts up to a diameter of 80 x 150 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ø 250 x 1000mm
- - Front bearing diameter 120mm
- - 40. 4 nm
- - C-axis with 0. 001° resolution
- - Nc tailstock rapid traverse 12 m/min; 5 kn
- - Square cross holder; chisel cross-section 25 x 25 mm left long
- - Square cross holder; chisel cross section 25 x 25 mm left short
- - Automatic bar gripper

Extra information

- Main spindle details, c-axis resolution, spindle time, NC running time. Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
