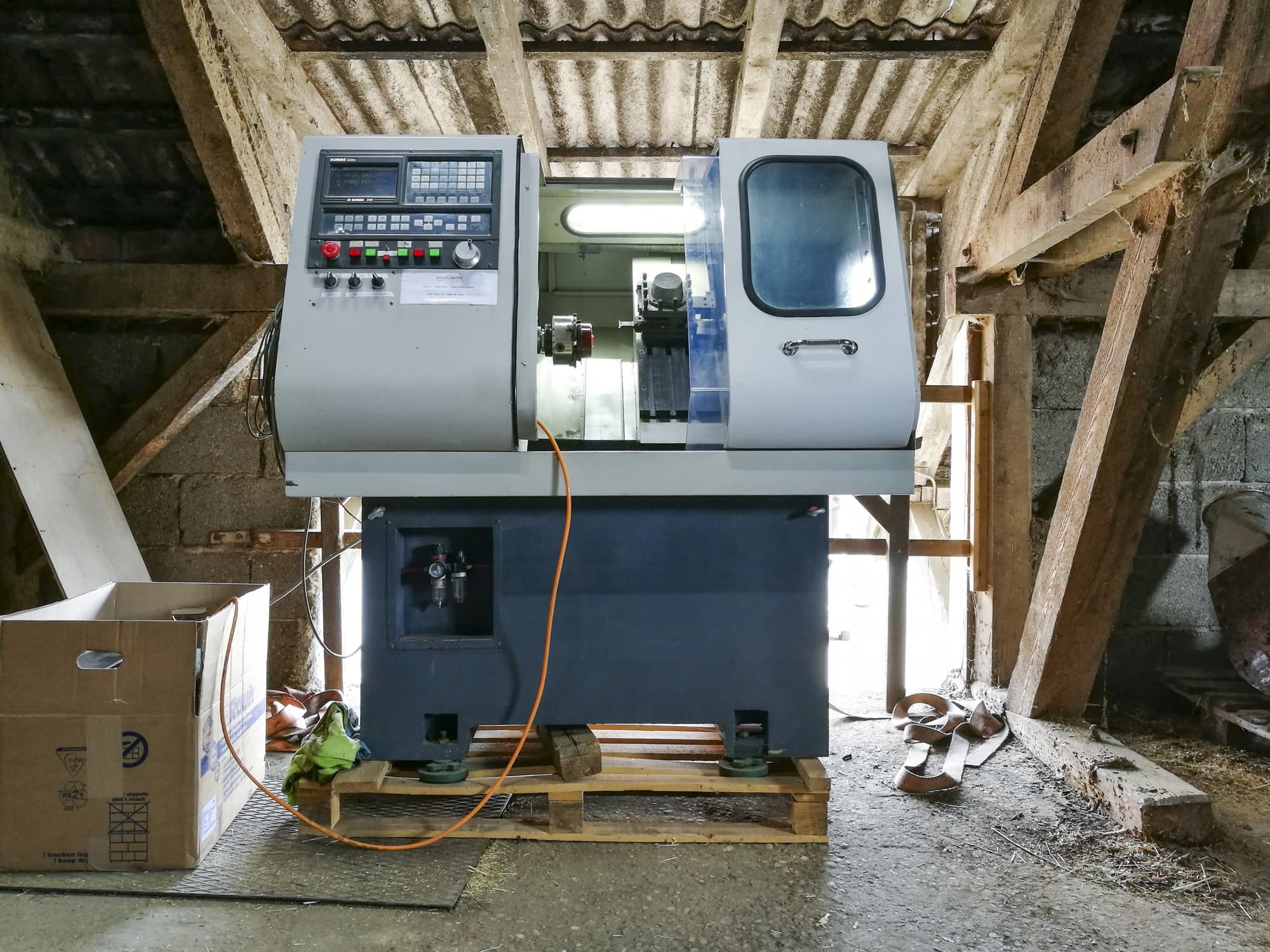

OZ-Seals Simploz6040 CNC Lathe

The Simploz6040 CNC is a Lathe built by OZ-Seals in 2009 that has a record of approximately 16640 working hours. OZ-Seals delivers a machine that is easy to handle, move and build up, and that is especially fit for the production of sealings. As additional equipment, this machine comes with a programming PC that complements the machine’s own GSK928TE Control unit.

Overview

brand: OZ-Seals
year: 2009
MODEL: Simploz6040 CNC
production hours: 16640
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - OZ-Seals Simploz6040 CNC

General Data

Measurements width: 1380 mm
Measurements depth: 950 mm
Measurements height: 1550 mm
Machine weight: 850 kg

Control Unit

Model: 928TE

Main drive

Number of spindles: 1
Spindle speed range: 50-2500 1/min
Spindle motor power: 3 kW
Spindle bore: 48 mm

Movement

X-AXIS Movement: 250 mm
X-AXIS Feed Force: 4 Nm
X-AXIS Rapid traverse: 15 m/min
X-AXIS Accuracy: 0.001
X-AXIS Backlash: 0.05 mm
Z-AXIS Movement: 200 mm
Z-AXIS Feed Force: 4 Nm
Z-AXIS Rapid traverse: 15 m/min
Z-AXIS Accuracy: 0.001
Z-AXIS Backlash: 0.05 mm

Turret

Number of turrets: 1
Number of tool slots: 4
Tool taper: 20x20 mm

Media

Main electronic connection: 380 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
