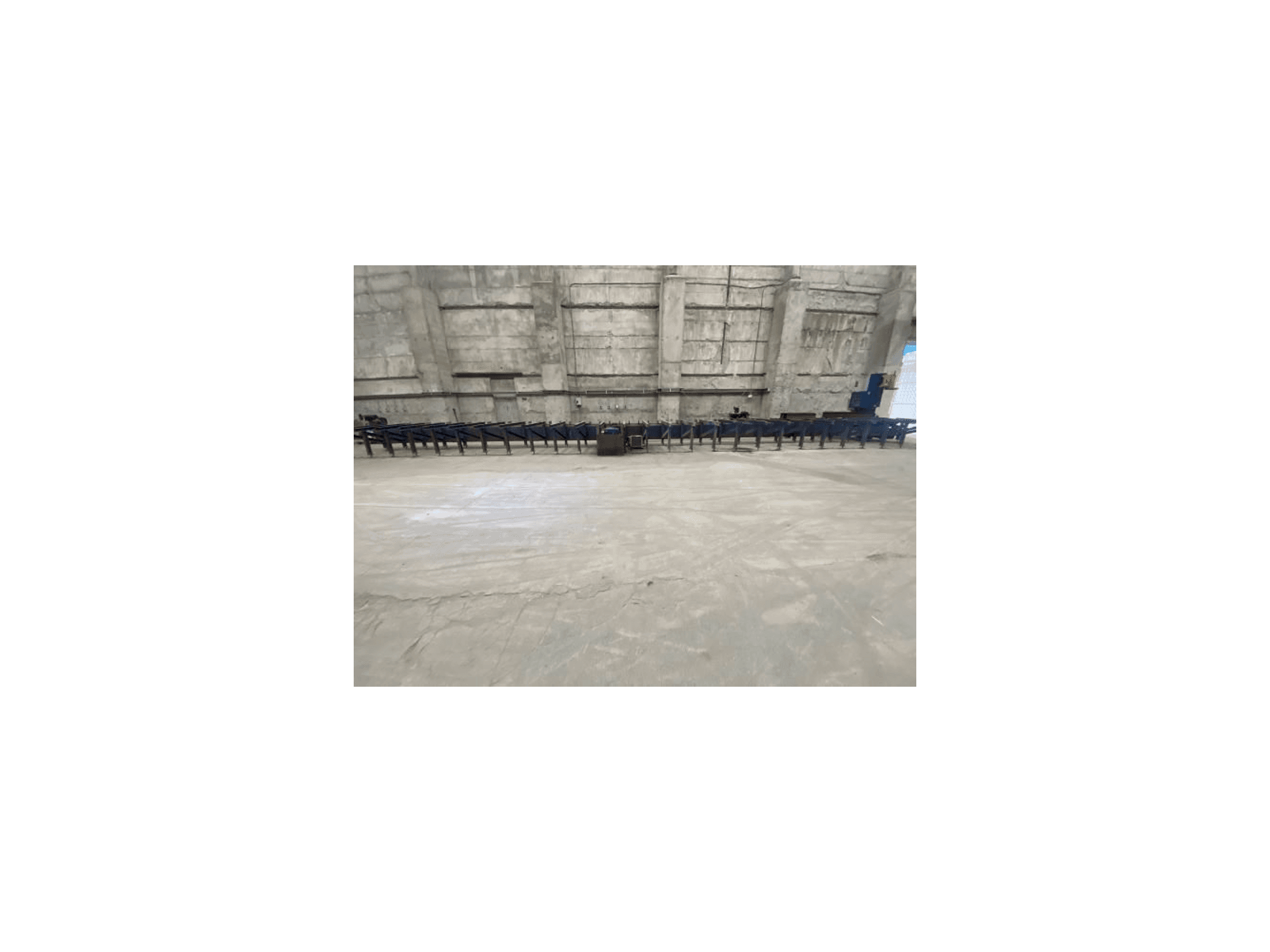

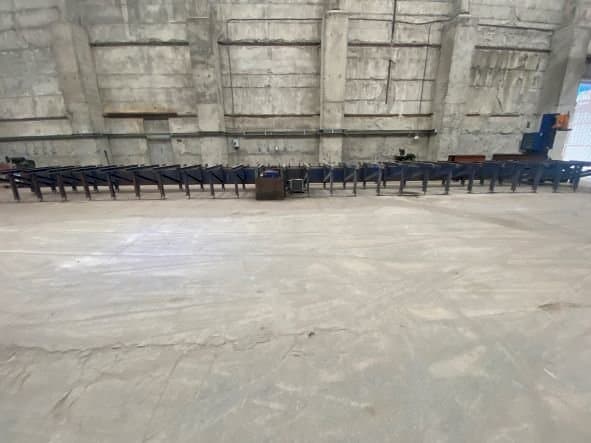

Peddinghaus Avenger MDL1000B Drilling machine

This Peddinghaus Avenger MDL1000B Drilling machine was manufactured in the year 2005 in the United States. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a table of 1830 x 1000 mm, and includes a Rush 250A Drill Grinder and a Selection of Drills as additional equipment.

Overview

brand: Peddinghaus
year: 2005
MODEL: Avenger MDL1000B
application type: Other Machine Tools
Location: Ireland
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: SIEMENS

Technical Information - Peddinghaus Avenger MDL1000B

General Data

Measurements width: 2050 mm
Measurements depth: 3500 mm
Measurements height: 2560 mm

Control Unit

Model: Sinumerik 840D
CNC main language: English
Brand: SIEMENS

Movement

X-AXIS Movement: 1830 mm
Y-AXIS Movement: 330 mm

Workpiece

Workpiece x: 1830 mm
Workpiece y: 1000 mm

Table

Outer length: 1830 mm
Outer width: 1000 mm

Tools

Max tool diameter: 50 mm

Media

Main electronic connection: 400 V
Power consumption: 14,9 kW

Additional Equipment

- Rush 250A Drill Grinder
- Selection of Drills

Additional Information

Machine history

End product: Structural steel beams
Industries: Structural steel industry

Machine Benefits

Technical Machine Benefits:
- - New machine control in 2017
- - Includes a rush 250a drill grinder worth €6,000
- - Table: 60 ft
- - Average output: 200 to 400 holes per hour
- - Max beam size: 60ft x 40" (18. 3m x 1000mm)
- - Max beam weight: 730lbs/ft (1088kg/m)
- - Min drill diameter: 1/4" (6. 5mm)
- - Max drill diameter: 2" (50mm)
- - Max thickness: up to 10" (250mm)
- - Max speed x-axis: 120 ft/min (37m/min. )
Qualitative Machine Benefits:
- - Max speed y-axis: 120 ft/min (37m/min. )
- - Spindle power: 13 3/4hp (10kw)
- - Drilling feed rate: 2" – 10" per min (50-254mm/min) infinitely variable

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
