Peddinghaus - FDB 600IE-DRI-PED-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

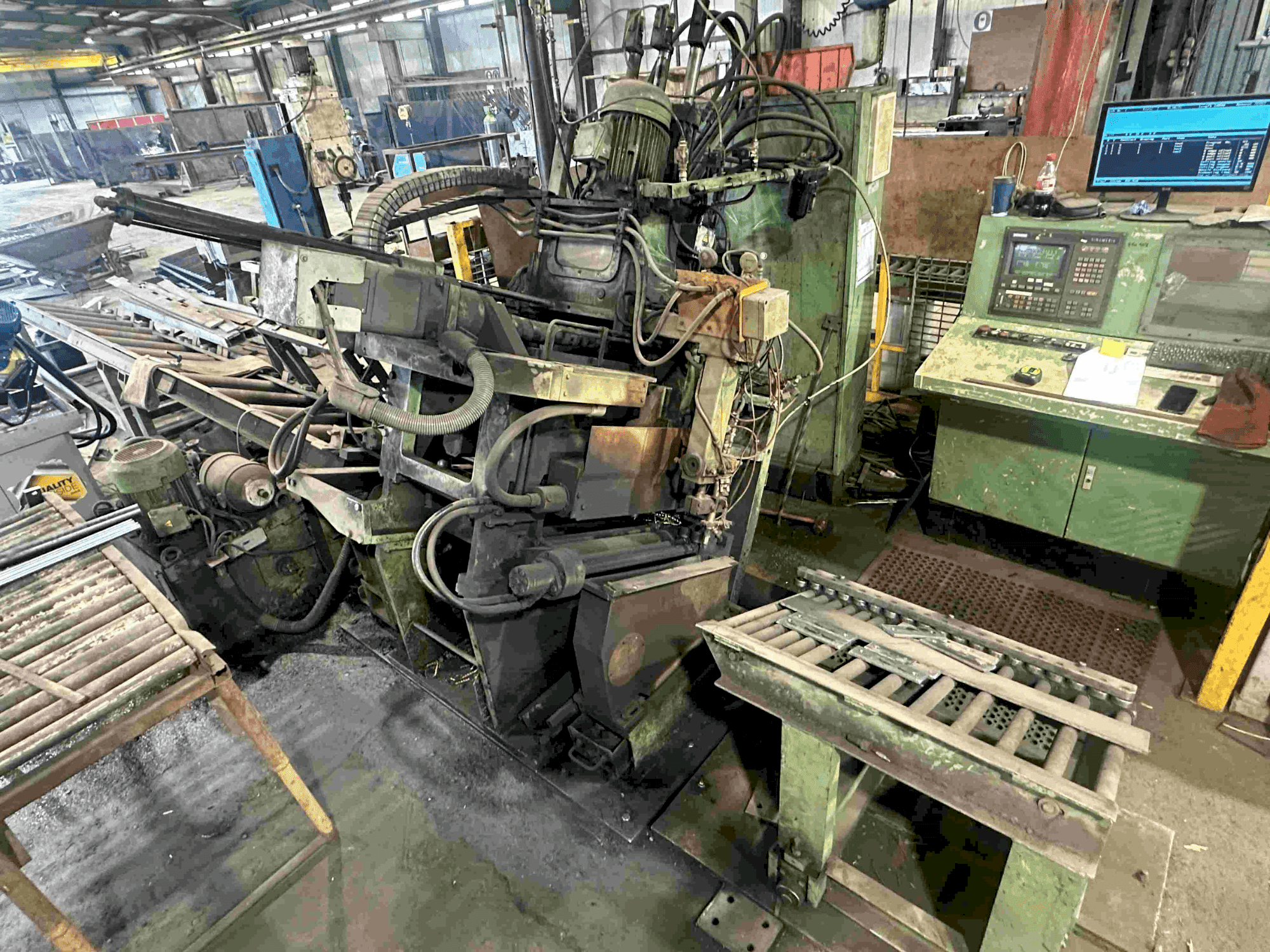

➤ Used Peddinghaus FDB 600 For sale | gindumac.com

This Peddinghaus FDB 600 was manufactured in 2000. A robust drilling machine from Germany, it features a Siemens Sinumerik control unit, chip conveyor, and internal cooling. It's designed for the construction industry, handling steel plates with a maximum thickness of 50mm and length up to 6000mm. Ideal for structural steel plates, the Peddinghaus FDB 600 machine we have for sale is immediately available. Contact us for further details regarding this drilling machine.

Overview

brand: Peddinghaus
year: 2000
MODEL: FDB 600
production hours: 48447
application type: Other Machine Tools
Location: Ireland
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: SIEMENS

Technical Information - Peddinghaus FDB 600

General Data

Measurements width: 1900 mm
Measurements depth: 2000 mm
Measurements height: 2800 mm
Machine weight: 6500 kg

Control Unit

Model: Sinumerik
Brand: SIEMENS

Workpiece

Workpiece x: 50 mm
Workpiece y: 600 mm
Workpiece z: 6000 mm

Tools

Max tool diameter: 40 mm

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Steel plate
material thickness: 20 mm
End product: Structural steel plates
Industries: Construction industry

Machine Benefits

Technical Machine Benefits:
- - 3 drilling spindles
- - Oxy fuel cutting
- - Max drilling capacity: 40 mm
- - Min drilling capacity: 8 mm
- - No of drill spindles: 3
- - Min plate thickness: 6 mm
- - Max plate thickness: 50 mm
- - Min plate width: 80 mm
- - Max plate width: 600 mm
- - Max plate length: 6000 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
