Pinette - 2500 TonPL-INJ-PIN-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Pinette 2500 Ton Compression Moulding Machine

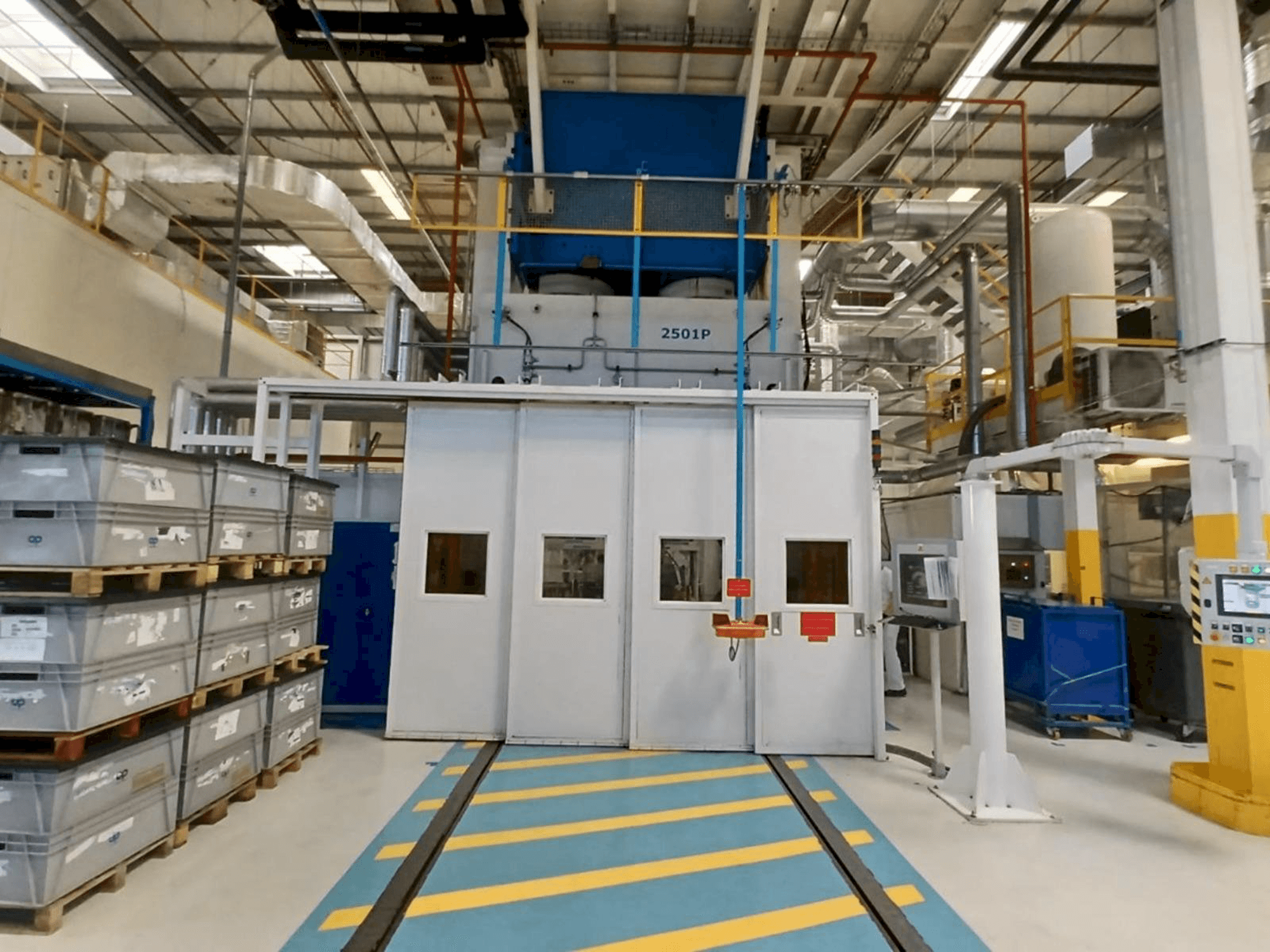

This Pinette 2500 Ton Compression Moulding Machine was built in the year 2014 in Finland. It shows 19500 working hours. The machine is capable of operating with a closing force 25000 kN, fast closing 30 m/min, and an ejection 200 bar.
Overview
- brand: Pinette
- year: 2014
- MODEL: 2500 Ton
- production hours: 19500
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: Schneider
Technical Information - Pinette 2500 Ton
Control Unit
- Brand: Schneider
Clamping unit
- Clamping force: 25000 kn
Additional Information
- Technical Machine Benefits:
- - Closing (t): 2500
- - Opening (t)brut: 107 (495cm2)
- - Opening (t) max: 400
- - Parallel reaction (t) max: 400
- - Parallel reaction (t/bar): 400
- - Stroke parallel cylinder (mm): 100
- - Diameter parallel cylinder (mm): 320
- - Pressure by parallel cylinder (bar): 155
- - Sise platen (m): 3 x 2,5
- - Weight max mold (t): 50
- Qualitative Machine Benefits:
- - Type block: sistema k160r
- - Type pomp: qt54-063r
- - Work pressiure (bar): 265
- - Power instal (kw): 190
- - Ejection hydraulic (bar): 200
- - Pressure auxiliary (bar): 200
- - Size between the column: 3
- - The additional equipment shown in the pictures can be purchased for an extra price.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
