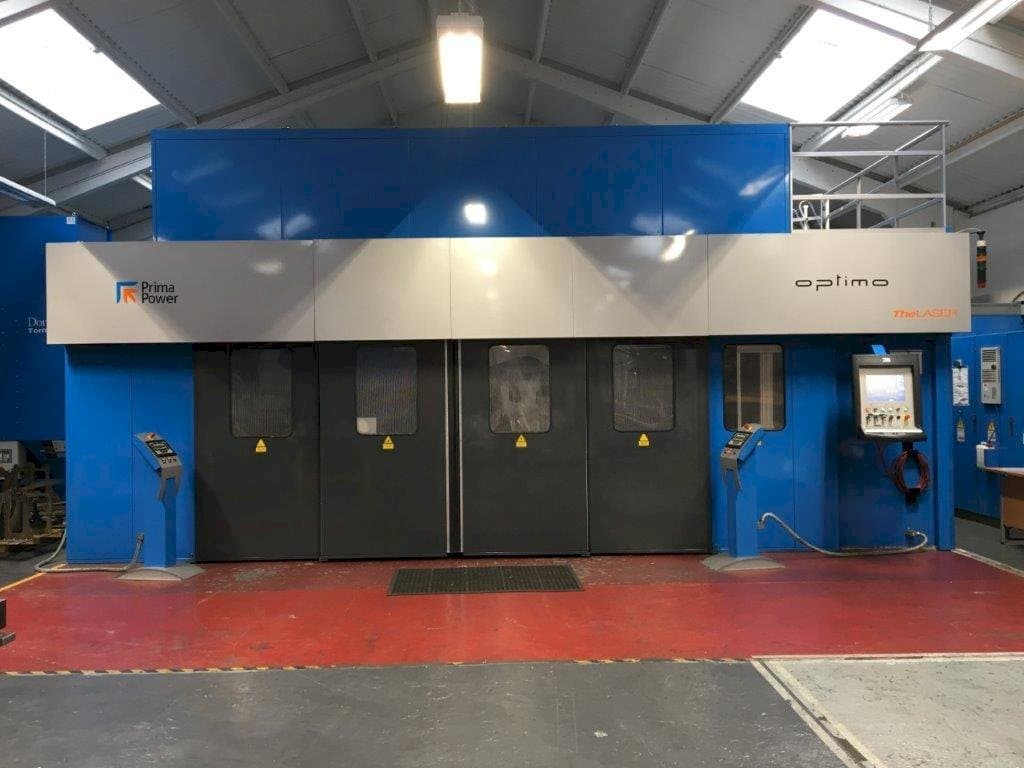

Prima Power OPTIMO CV 4000 Laser Cutting Machine

This Prima Power OPTIMO CV 4000 Laser Cutting Machine was manufactured in 2015 and has a total of only 11760 laser hours since then. With a power of 4 kW, this 3D machine can perform cutting and welding for large work pieces. Its main features include; self-calibrating, hand teach box with joy stick, 3D editor, teleservice connection, full tracking, auto square cutting head, shape storing, split cabin facility, laser piercing monitoring, plasma monitoring, focal point control and VIVIDA head (for short and very fast movements). It presents excellent conditions, as it has been given annual service. Complete documentation is available.

Overview

brand: Prima Power
year: 2015
MODEL: OPTIMO CV 4000
production hours: 11760
application type: Cutting
Location: United Kingdom
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - Prima Power OPTIMO CV 4000

General Data

Measurements width: 8200 mm
Measurements depth: 5300 mm
Measurements height: 4100 mm
Machine weight: 24500 kg

Main drive

Laserpower: 4 kW
Laser type: CO2

Movement

X-AXIS Accuracy: 0.6 mm
Y-AXIS Accuracy: 0.6 mm
Z-AXIS Accuracy: 0.6 mm
A-AXIS Movement: 360º MM
B-AXIS Movement: +/- 135 degreeº MM
C-AXIS Movement: +/- 10 mm
V-AXIS Movement: +/- 10 mm

Table

Outer length: 4500 mm
Outer width: 2500 mm
Height adjustment: 1020 mm

Media

Main electronic connection: 400 V
Power consumption: 76 kVA

Additional Equipment

- Dust extractor
- Chiller

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 tables
- - Speed trajectory: 85 m/min
- - Acceleration trajectory: 0. 7 g
Qualitative Machine Benefits:
- - Full annual service
- - Documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
