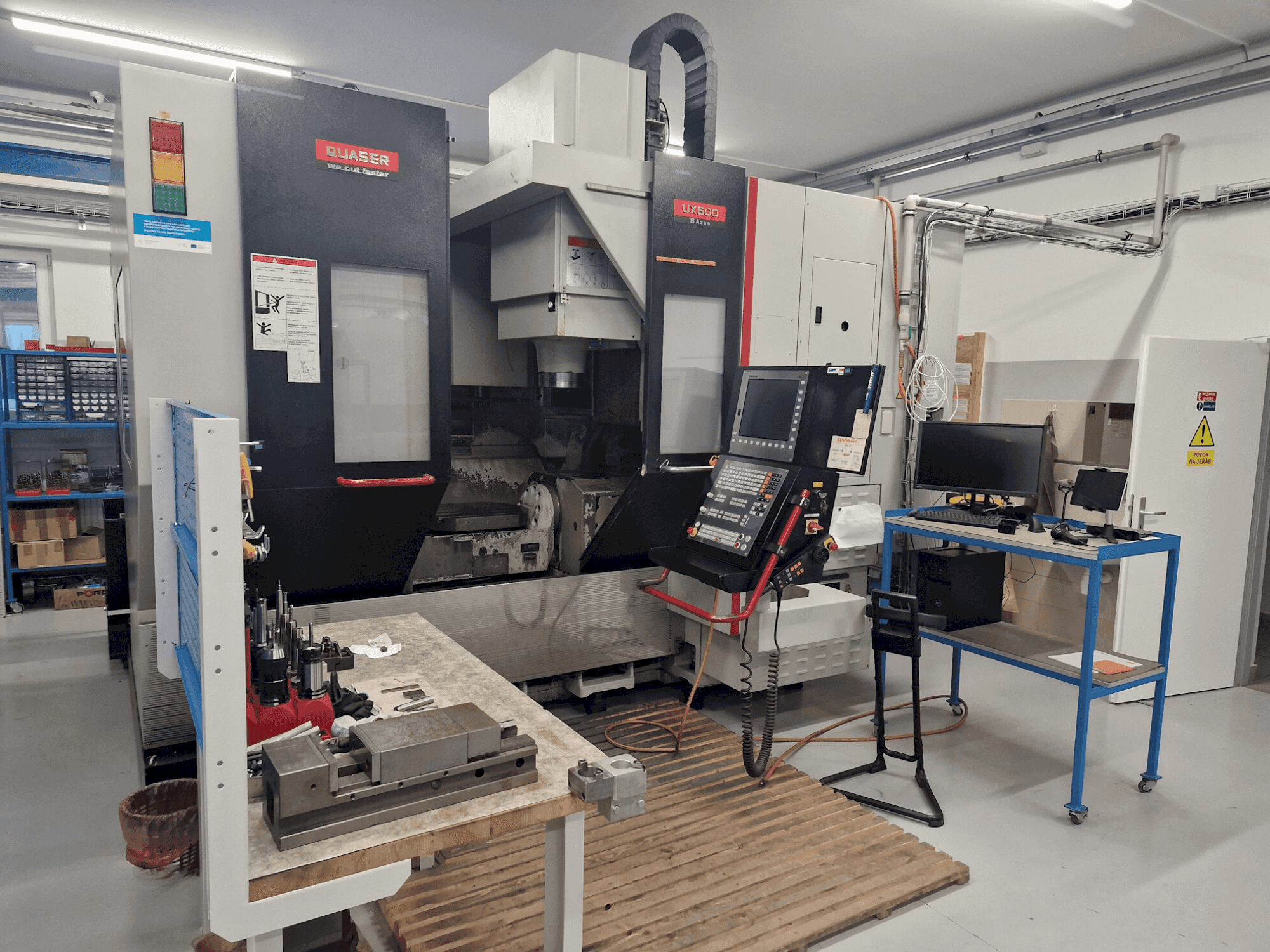

Front view of Quaser UX600/15C  machine

Quaser - UX600/15CCZ-MIL-QUA-2015-00001

60,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Quaser UX600/15C Vertical Machining Center was manufactured in the year 2015 in Taiwan. It is a 5 axis machine with direct measurement on all axis operated by a Heidenhain iTNC 530 control. With SK40 and 15000 rpm it is the ideal solution for sophisticated simultaneaous machining.

Overview

  • brand: Quaser
  • year: 2015
  • MODEL: UX600/15C
  • production hours: 34616
  • application type: Milling
  • Location: Czech Republic
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - Quaser UX600/15C

General Data

  • Measurements width: 3800 MM
  • Measurements depth: 4050 MM
  • Measurements height: 3200 MM
  • Machine weight: 12100 KG

Control Unit

  • Model: iTNC 530
  • Brand: HEIDENHAIN

Main drive

  • Number of spindles: 1
  • Spindle speed range: 15000 1/min

Movement

  • X-AXIS Movement: 885 MM
  • Y-AXIS Movement: 800 MM
  • Z-AXIS Movement: 500 MM

Workpiece

  • Workpiece weight: 300 kg

Table

  • Outer length: 600 MM
  • Outer width: 500 MM

Tools

  • Slots in storage: 48
  • Max weight: 7 kg
  • Max tool diameter: 76.2/125 mm
  • Max tool length: 280 mm
  • Type of tool holder: SK 40

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 5 axis machine with direct measurement on all axis
      • - A axis + 30 / - 120 degrees
      • - C axis 350 degrees (continuous)
      • - Max. Workpiece diameter 640 mm, max. Workpiece weight 500 kg.

    Extra information

    • - 15617 Spindle Hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
