GINDUMAC
Products
Wood Working

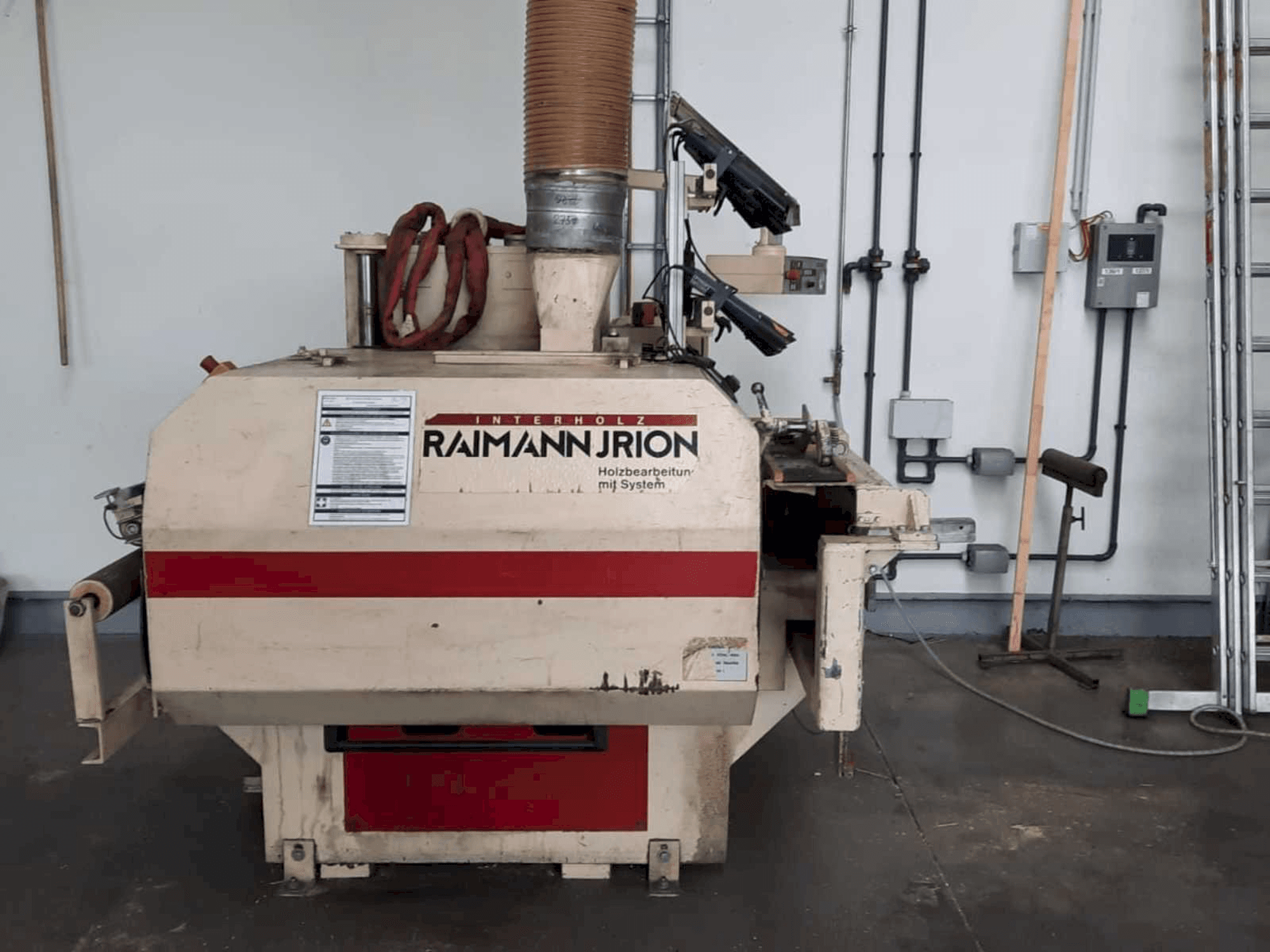

Raimann KS 310 Sawing machine

This Raimann KS 310 Sawing machine was manufactured in the year 1998 in Germany and has 5000 production hours. It is equippped with a chain width of 300mm ad saw shaft diameter of 65mm. The min. saw blade diameter is 250 mm and the max. saw blade diamter is 360 mm. With a saw shaft speed of 3900 rpm it can operate with a max. cutting width of 310 mm. See original tech specs as PDF (German) attached below for more details.

Overview

brand: RAIMANN
year: 1998
MODEL: KS 310
production hours: 5000
application type: Sawing (Wood)
Location: Germany
machine type: Circular Wood Saw
availability: Sold

Technical Information - RAIMANN KS 310

General Data

Machine weight: 2200 kg

Main drive

Main motor power: 37 kW

Media

Main electronic connection: 400 Volt, 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chain width 340mm
- - Saw shaft diameter 65 mm
- - Diameter of the bush 80 mm
- - Max. Saw blade diameter 360 mm // min. Saw blade diameter 250 mm
- - Saw blade bore (dkn 18x3. 5mm) 80 mm
- - Saw shaft speed 3900 rpm
- - Feed speed, infinitely variable 4-48 m/min
- - Max. Cutting width 310 mm // maximum passage width 800 mm //
- - Max. Cutting height with multi-blade equipment: without pressure rake 120 mm // with pressure rake 105 mm
- - Min. Cutting height 10 mm // min. Workpiece length (standard version with pressure rake) 450 mm

Extra information

- The machine was retrofitted with splinter protection and a frequency converter. Frequency inverter: FDS 4000 from Stöber

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Raimann KS 310 (1998) - Tech Specs (GERMAN).pdf
