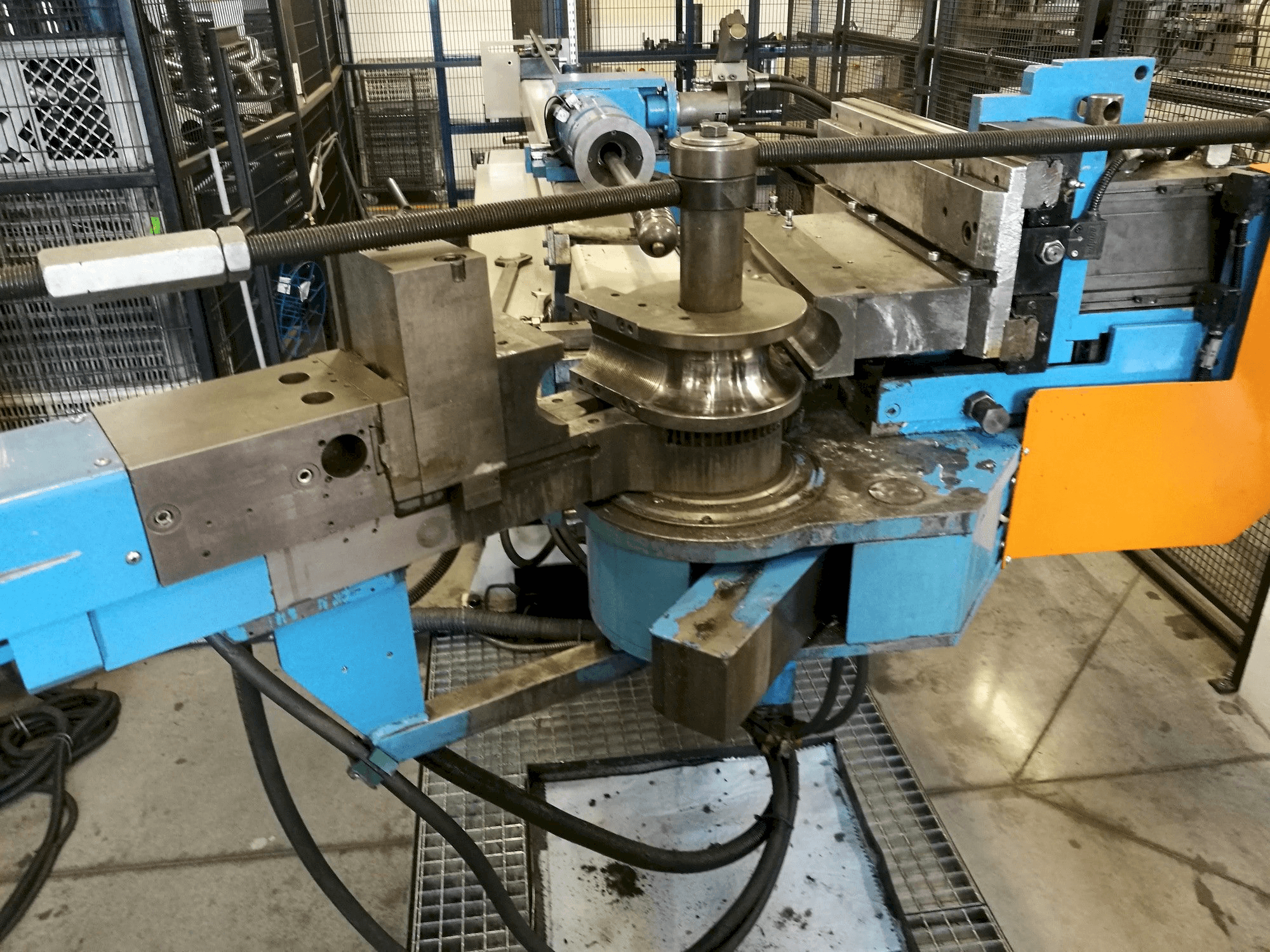

Rasi S 80.5 Pipe Bending Machine

This Rasi S 80.5 Pipe Bending Machine was manufactured in 2009 in Germany. This machine operates under an intuitive machine programming and has the ability to generate bending programs from the 3D model, as well as manually. It stands out for including the possibility of adjusting the elasticity of the pipe and other parameters, facilitating the stabilization of the bending process.

Overview

brand: Rasi
year: 2009
MODEL: S 80.5
application type: Bending
Location: Poland
machine type: Roll Bending Machine
availability: Sold

Technical Information - Rasi S 80.5

General Data

Measurements width: 8000 mm
Measurements depth: 1700 mm
Measurements height: 1300 mm
Machine weight: 5000 kg

Media

Main electronic connection: 400 V
Power consumption: 11 kW

Additional Information

Machine history

Material type: Tubes

Machine Benefits

Technical Machine Benefits:
- - Vertical stroke 110mm
- - Horizontal stroke 140mm
- - Direction of bending right
- - Max. Tube length (up to the beginning of the first bending radius) 3400. 0 mm
- - 180 ° bending angle
- - The feed speed is infinitely adjustable 0-60 m / min
- - The speed of rotation of the head is infinitely adjustable from 0-60 rpm
- - Pipe clamping force max. 8t
- - Diameter x gr. : bending multi-radius (combo)
- - Mandrel bending max. 80. 5 x 1. 5 mm

Extra information

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
