Rosler R4/1300.2 SF

This Rosler R4/1300.2 SF Drag Finishing Machine was built in 2015 in Germany. It has been working for 13835 hours. It is equipped with a SIEMENS Simatic Panel Touch control unit. This machine has 4 powerful, versatile workstations allowing the finishing of large workpiece batches or work pieces up to 600mm and/or high individual piece weights. It includes a cooling unit, a buffer tank, a clean water tank, an hydraulic pack, and a safety fencing.

Overview

brand: Rosler
year: 2015
MODEL: R4/1300.2 SF
production hours: 13835
application type: Other Machine Tools
Location: Ireland
machine type: Machine Tool
availability: Sold
control unit brand: SIEMENS

Technical Information - Rosler R4/1300.2 SF

General Data

Measurements width: 12000 mm
Measurements depth: 3901 mm
Measurements height: 2450 mm

Control Unit

Model: Simatic Panel Touch
CNC main language: English
Brand: SIEMENS

Tools

Number of stations: 4

Additional Equipment

- Cooling Unit
- Buffer Tank
- Clean Water Tank
- Hydraulic Pack
- Electrical Cabinets
- Safety Fencing

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of bowls 2

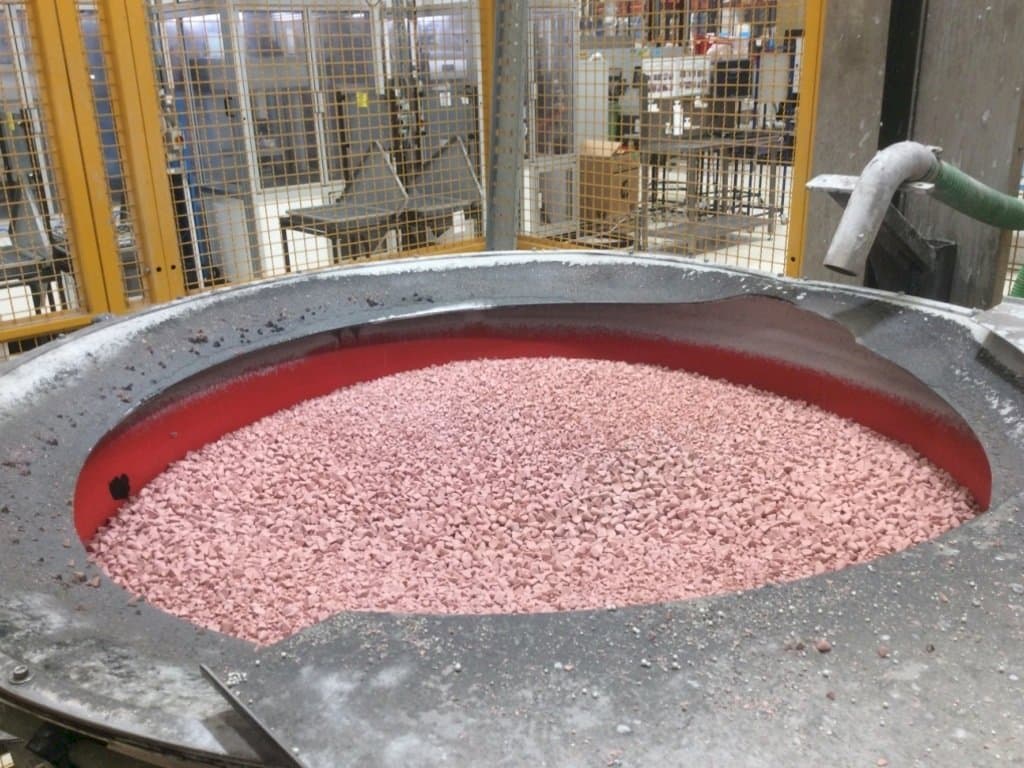

- - Work bowl diameter 1280 mm
- - Max work bowl height 460 mm
- - Total work bowl volume 850 l
- - Usable work bowl volume 590 l
- - Power of main drive 15 kwh
- - Power of spindle drives 0. 8kwh (direct drive)
- - A sturdy single column holds the spinnerm including all drive units and provides the hydraulically activated up and down movement
- - Modular concept allows the expansion into systems of two of three processing stations
- - Independent spinner and work station drives with adjustable speed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
