- SAHOS GALAXY SH1800 CNC Wood Lathe

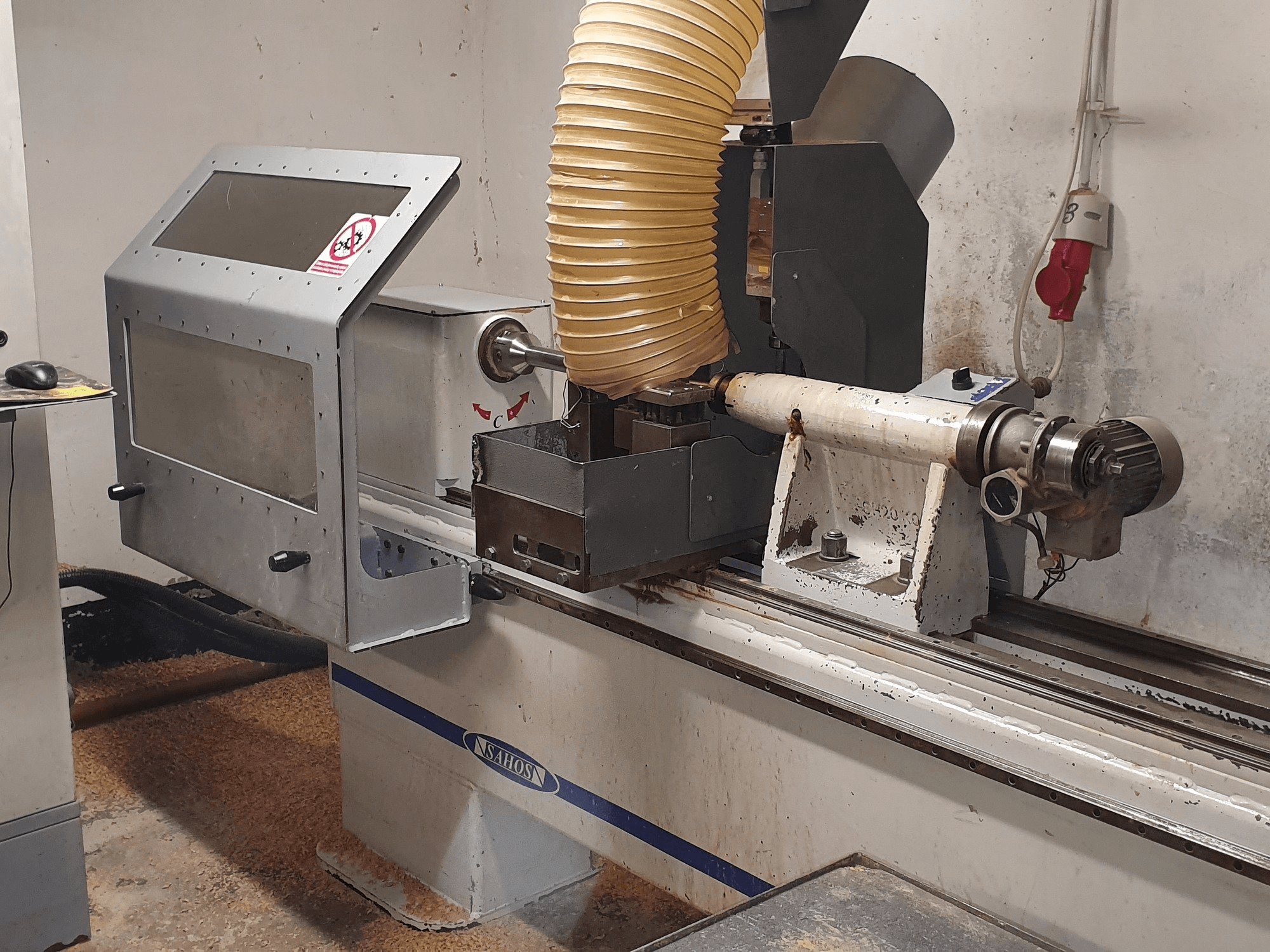

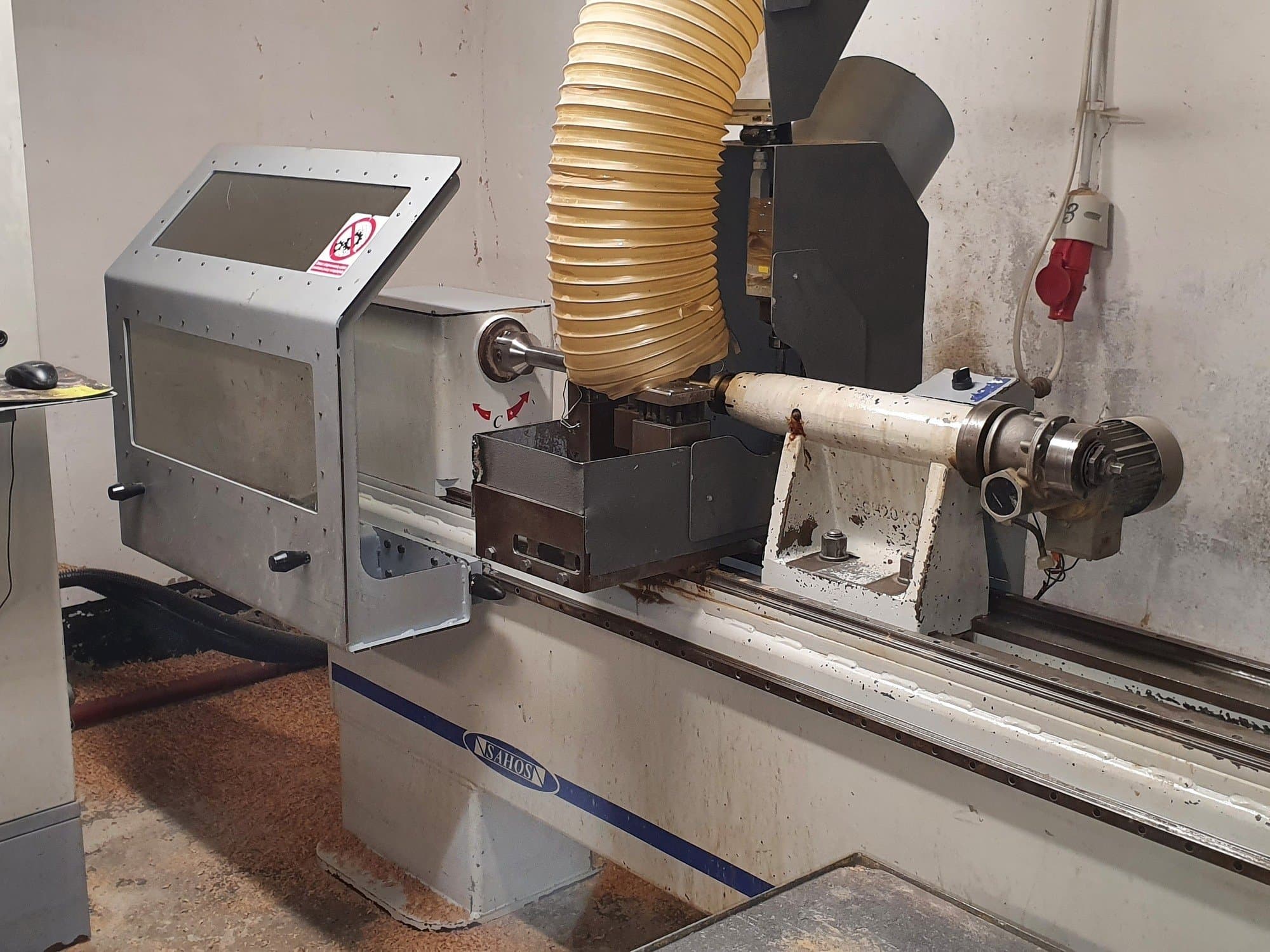

This SAHOS GALAXY SH1800 CNC Wood Lathe was manufactured in the year 2006 in Czech Republic. It is equipped with a Sahos control unit and has 3 axis. The machine has a spindle speed of 3750 rpm.
Overview
- brand: Sahos
- year: 2006
- MODEL: GALAXY SH1800 CNC
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Router
- availability: Sold
- control unit brand: SAHO
Technical Information - Sahos GALAXY SH1800 CNC
General Data
- Measurements width: 4300 mm
- Measurements depth: 1900 mm
- Measurements height: 2100 mm
- Machine weight: 1600 kg
Control Unit
- Brand: SAHO
Main drive
- Spindle speed range: 3750 1/MIN
- Number of axis: 3
Movement
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Rapid traverse: 20 m/min
- Z-AXIS Rapid traverse: 20 m/min
Additional Information
- Technical Machine Benefits:
- - Maximum turning length: 1900 mm
- - Maximum diameter over bed: 540 mm
- - Maximum turning diameter: 270 mm
- - Maximum turning diameter with stay: 140 mm
- - Travel of cross-slide: 250 mm
- - Spindle electric motor: 5. 9 kw
- - Taper in spindle: morse 3
- Qualitative Machine Benefits:
- - Machine in good condition ready for tests. Due to the specific of the production, the machine is configured without an additional feeder.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
