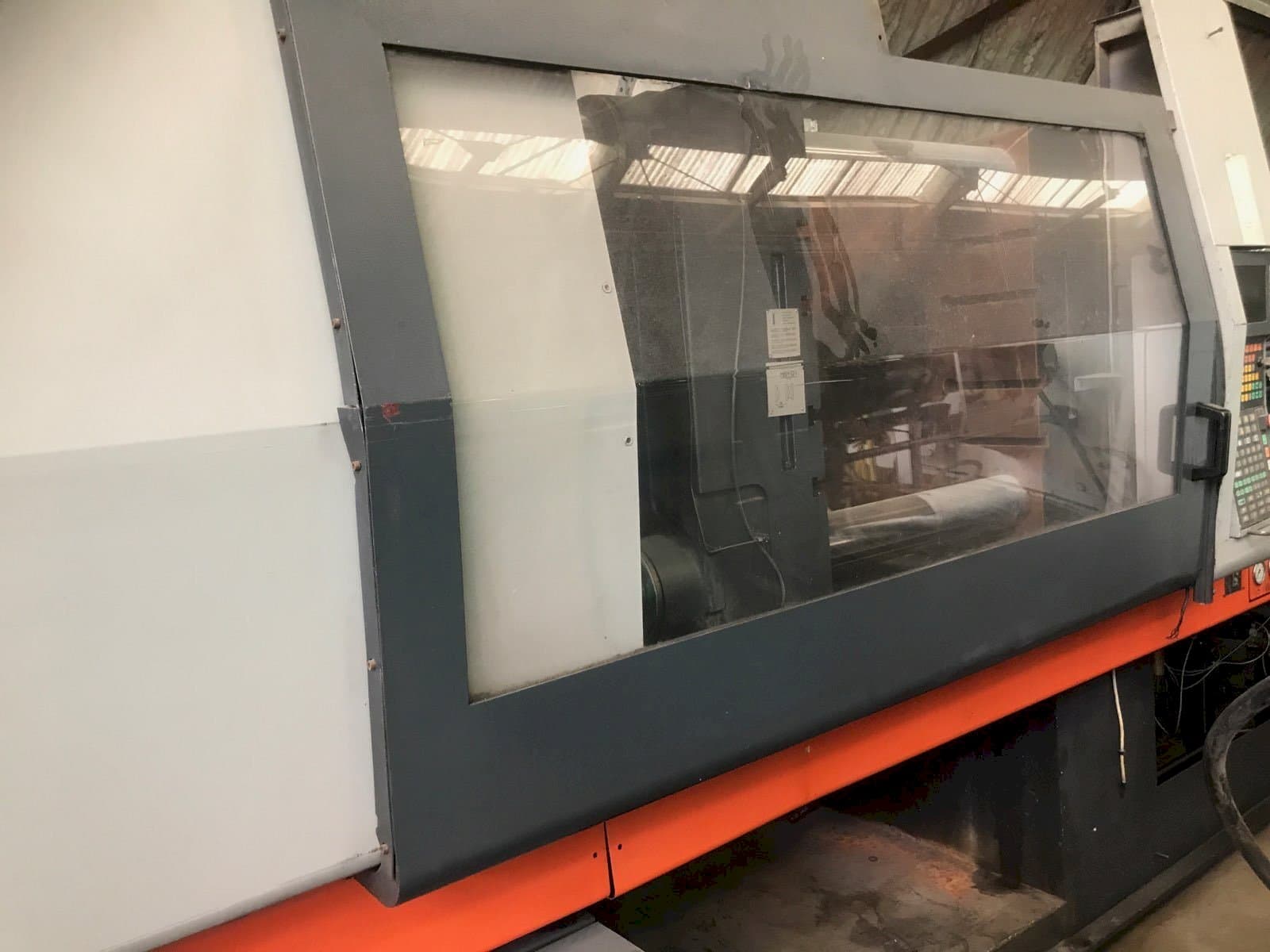

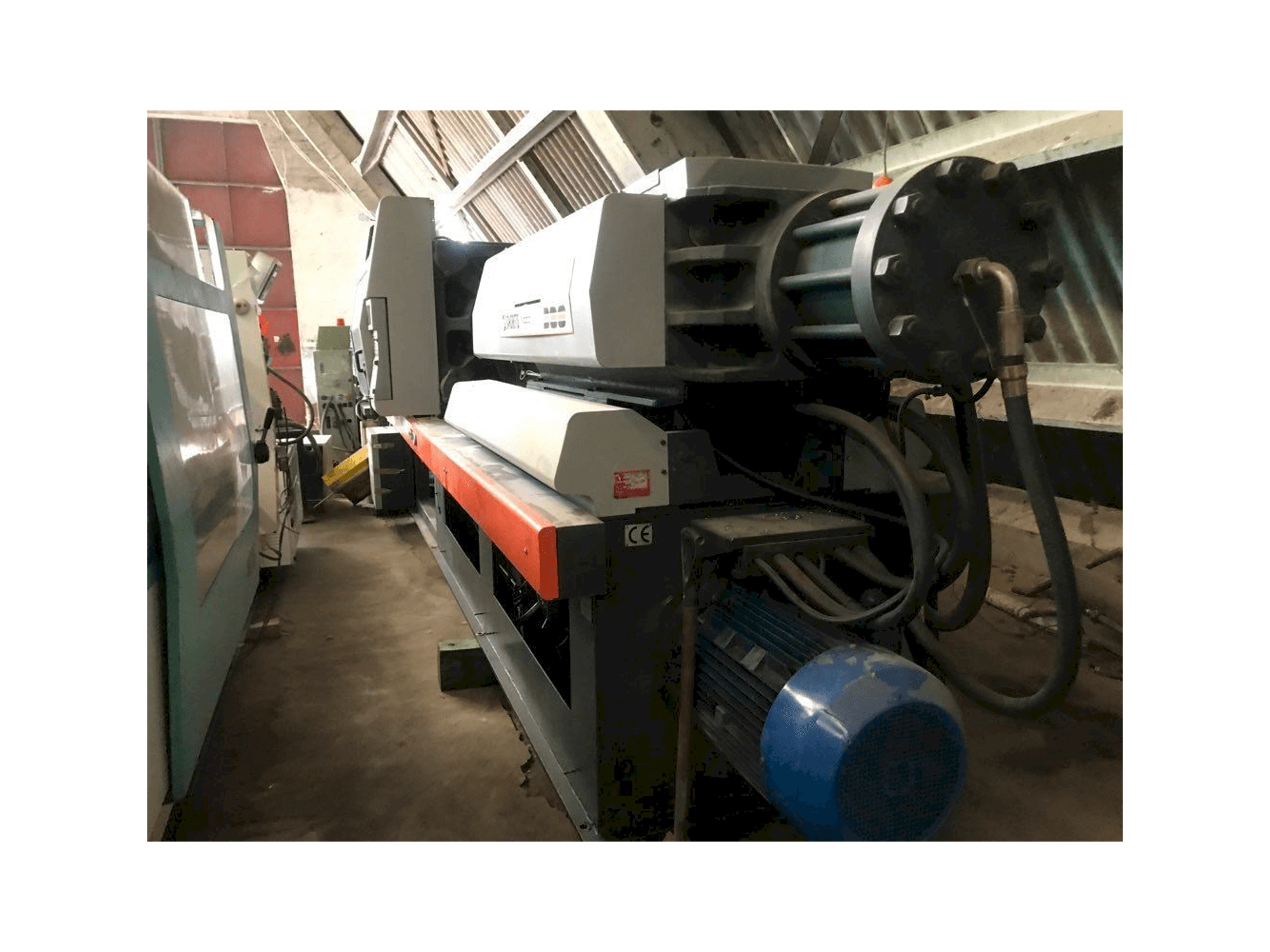

SANDRETTO Otto 2054/380 Injection Moulding Machine

This SANDRETTO Otto 2054/380 Injection Moulding Machine was manufactured in the year 1998. The model offers a 3800 kN clamping force, a screw diameter 75 mm, and an injection volume 1370 cm.

Overview

brand: SANDRETTO
year: 1998
MODEL: Otto 2054/380
application type: Injection Moulding
Location: Slovenia
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SANDRETTO Otto 2054/380

Injection Unit

Screw diameter: 75 mm
Stroke volume: 1370 cm CM³

Clamping unit

Clamping force: 3800 kN
Ejector force for / back: 87 kN

Additional Equipment

- Robot: Piovan StarT1000EP year: 1998
- Robot TecnoMatic Robot Del Machio 3P SE 1200 Mill DiPre 5,5kW year: 2006

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Screw lenght: 21 l/d
- - Plasticization capacity: 69,9 g/1"
- - Number of cylinders: 5
- - Tool installation height: 200=730 mm
- - Plate dimesions: 980x980 mm
- - Distance between tie - bars: 650x650 mm
- - Tie bar diameter: 130 mm
- - Oil tank volume: 580 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
