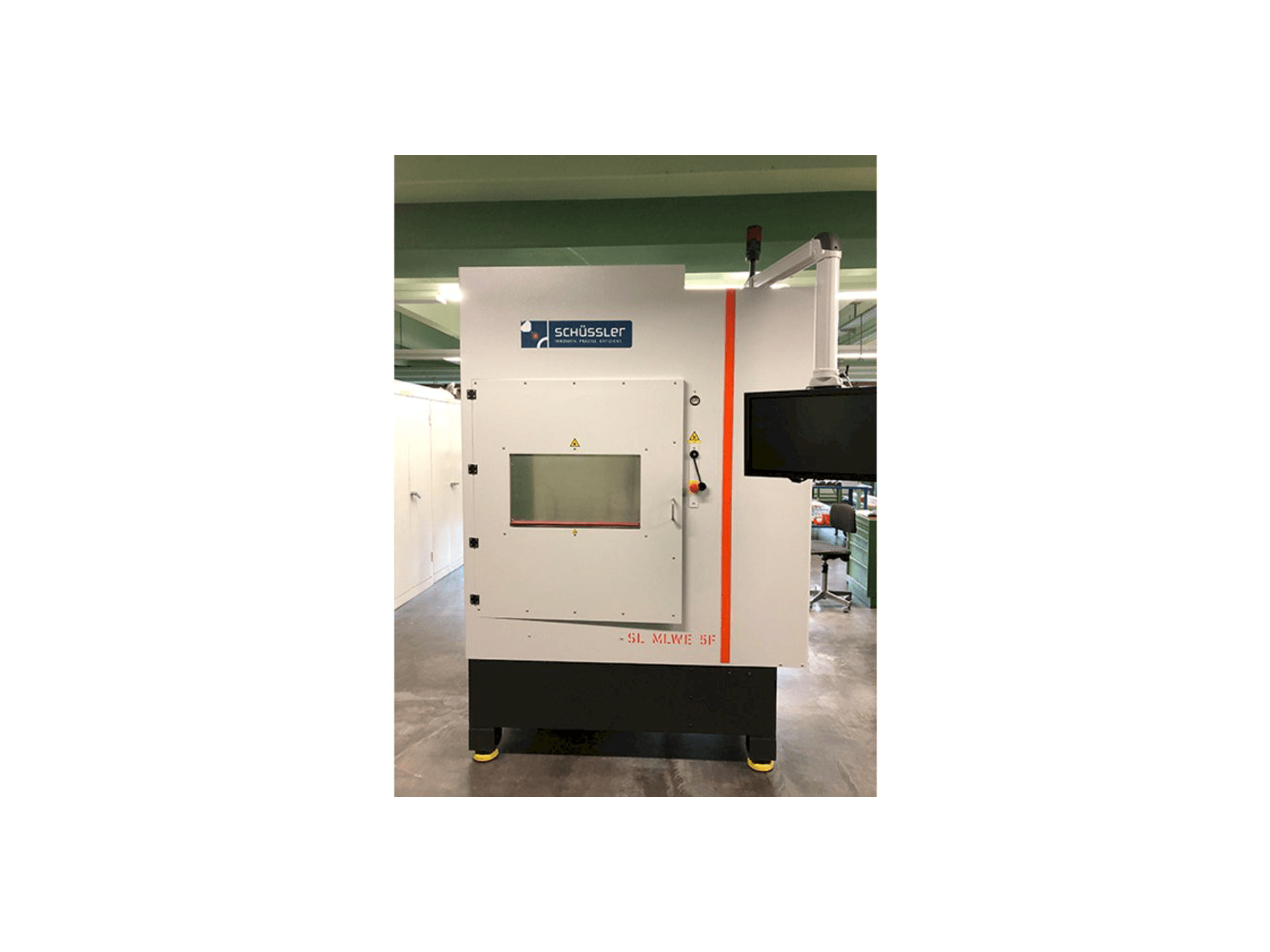

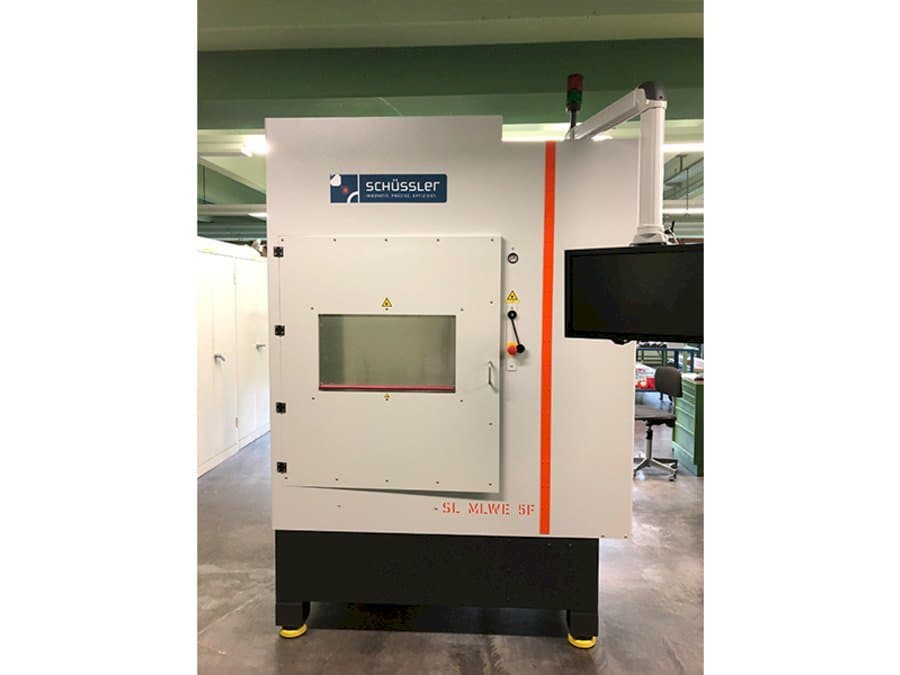

Schussler SL MLWE 5F Laser Welding machine

This Schussler SL MLWE 5F Laser Welding machine was manufactured in the year 2020. Operated through an Industrial touch monitor. This 5 axis works with a QCW laser (IPG) 150 kW. Machine is new, has 0 production hours.

Overview

brand: Schussler
year: 2020
MODEL: SL MLWE 5F
production hours: 0
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Laser Welding Machine
availability: Sold

Technical Information - Schussler SL MLWE 5F

General Data

Measurements width: 1700 mm
Measurements depth: 1260 mm
Measurements height: 2350 mm

Main drive

Number of spindles: 1
Laserpower: 150 kW
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 200 mm

Table

Table load: 25 kg

Media

Main electronic connection: 400V 50/60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece holder on the rotary-swivel unit
- - Led work area lighting
- - Door with automated loading window
- - Observation camera in the interior
- - Maintenance-free direct drives as linear and rotary axes
- - Switch cabinet with integrated control
- - Industrial touch monitor
- - Industrial pc (i7) with windows operating system data transfer via usb and network
- - Wavelength 1055-1070 nm
- - Pulse frequency 0-5 khz, cw
Qualitative Machine Benefits:
- - 5 machines available - each machine including the laser and the optic
- - The machines have a legal warranty of 12 months
- - 5 axis cnc laser machining center for microlaser welding with "fixed optics"
- - Basic machine flexible cnc laser machining center
- - Machine frame in stable steel-welded construction housing according to laser protection class 1
- - Compact design due to attached laser source
- - Objective f=150 mm
- - Rotation axis without clamping cylinder
- - Preparation protective gas supply in the machine consisting of valve and connection at the back of the machine for connection of gas supply by customer
- - Suction preparation consisting of sensor and flexible hose

Extra information

- Machine as new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
