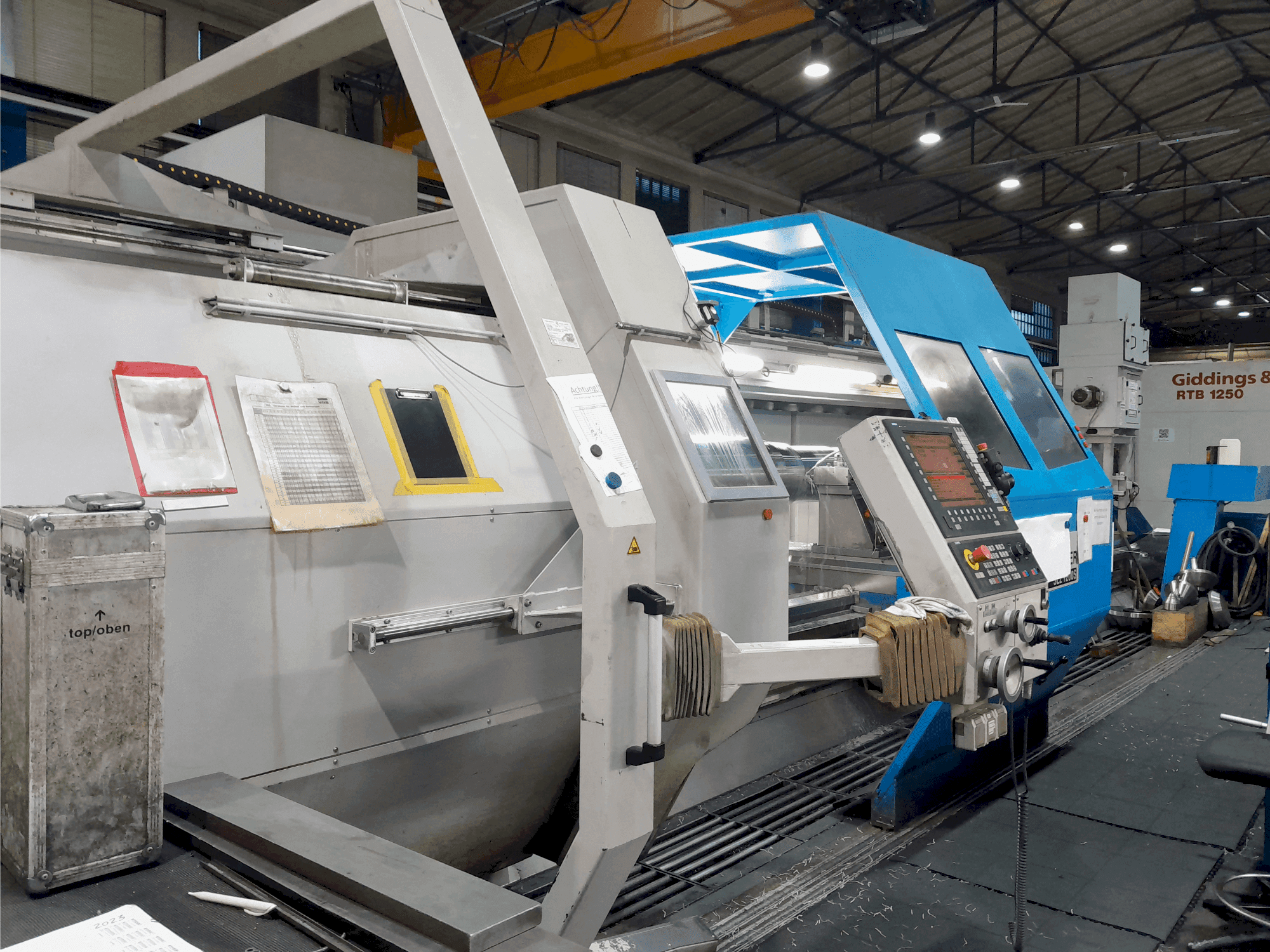

This horizontal turning machine was manufactured in 2013. The SEIGER SLZ 1200S features a peak width of 6000mm, circulation diameter over bed track 1250mm, and a spindle diameter in the front bearing of 240mm. It supports a maximum torque on the spindle of 12,000 Nm and a speed range of 5-710 min-1. Consider the opportunity to buy this SEIGER SLZ 1200S horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: SEIGER
- year: 2013
- MODEL: SLZ 1200S
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Immediately
Technical Information - SEIGER SLZ 1200S
General Data
- Measurements width: 5000 mm
- Measurements depth: 15000 mm
- Measurements height: 3000 mm
- Machine weight: 29000 kg
Main drive
- Spindle speed range: 5-710 min-1 1/MIN
- Spindle motor power: Max. torque on the spindle 12000 Nm
Additional Equipment
- - Tailstock with quill diameter 220mm and quill stroke 315mm
- - Steady rest with passage 450mm
- - Permissible workpiece dimensions: Between centre without steady rest: 7000 kg / Between centres with a steady rest: 8500 kg / Between centres with two steady rests: 10000 kg
- - Overhung in the face plate: 2200 kg
- - Column movement: 3500 kg
- - Electric control cabinet: 1000 kg
- - Machine centre width: 6000 mm: 125000 x 3400 x 2780 mm
Additional Information
- Technical Machine Benefits:
- - Peak width 6000 mm
- - Circulation diameter over bed track 1250 mm / circulation diameter over flat slide 870 mm
- - Sliding movement of the facing slide 700 mm
- - Bed width 900 mm
- - Spindle diameter in the front bearing 240 mm
- - Chuck diameter 110 mm
- - X feed force 100% ed 220 mm / z feed force 100% ed 315 m / y rapid traverse 4 m/min
- - Mx rapid traverse 6 m/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
