SMG - SCHULER DS 200 + Z 60DE-BEN-SMG-1976-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

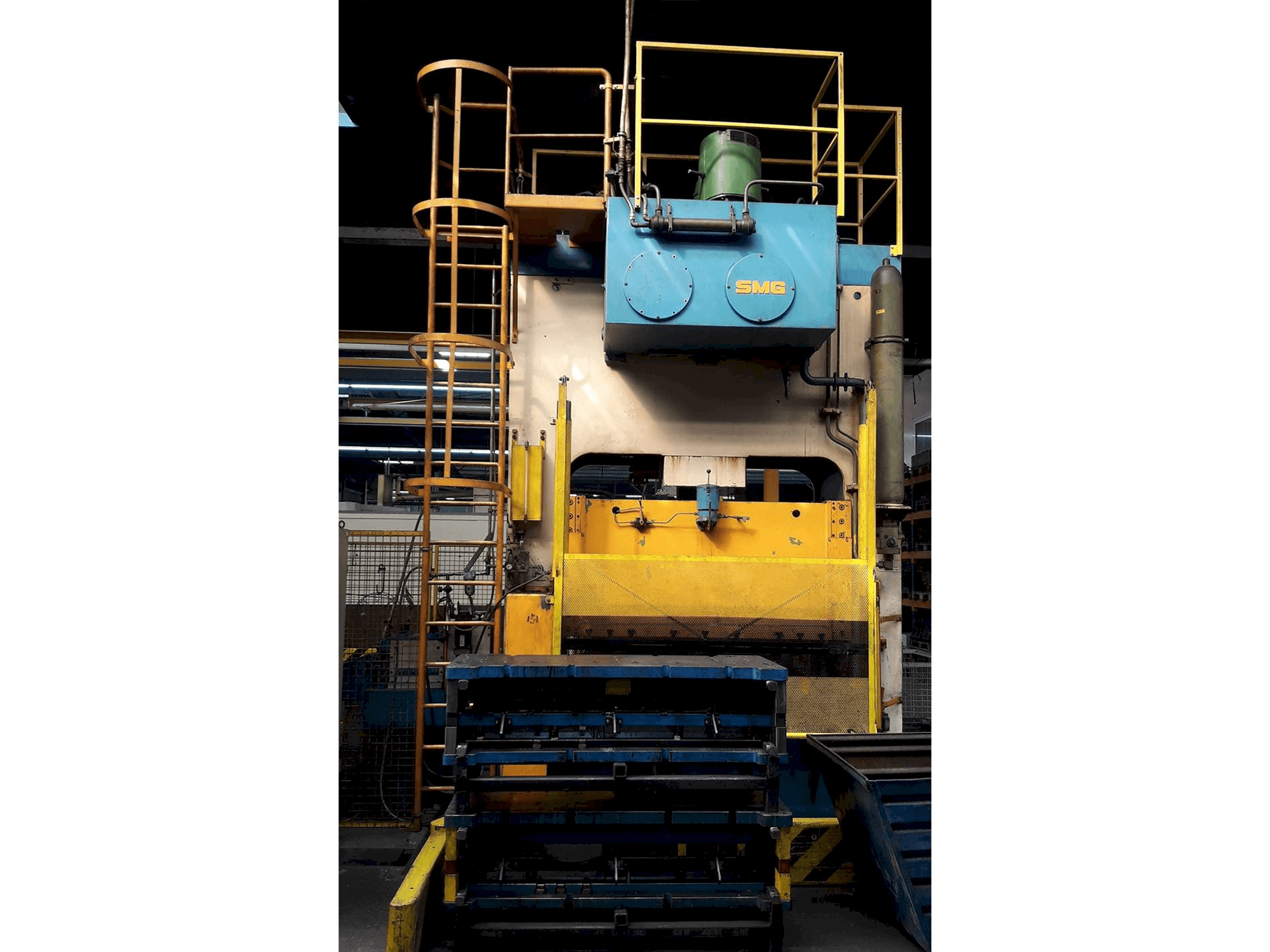

SMG SCHULER DS 200 + Z 60 Bending machines

This SMG SCHULER DS 200 + Z 60 Bending machines was built in 1976 in Germany. This machine works with a pressure force of 2000 kN and a drawing cushion of 600 kN. It's in very good mechanical and hydraulic condition.

Overview

brand: SMG
year: 1976
MODEL: SCHULER DS 200 + Z 60
application type: Bending
Location: Germany
machine type: Hydraulic Press
availability: Sold

Technical Information - SMG SCHULER DS 200 + Z 60

General Data

Machine weight: 22680 kg

Table

Outer length: 2000 mm
Outer width: 1000 mm

Media

Main electronic connection: 400 V, 50 Hz, 95 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pressure force: 200 ton.
- - Drawing cushion: 60 ton.
- - Column width: 2010 mm
- - Column width lateral 400 mm
- - Drawing cushion: 1. 600 x 750 mm
- - Installation height max. 500 mm
- - Ram stroke 300 mm
Qualitative Machine Benefits:
- - Light curtain, light barrier sick
- - Uvv vgb
- - Tool safety device
- - Machine documents and circuit diagrams available
- - Very good mechanical and hydraulic condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
