Sodick - AQ300LDK-EDM-SOD-2007-00001

Name: Sodick AQ300L
Brand: Sodick
SKU: DK-EDM-SOD-2007-00001
Price: 30000 EUR
Availability: InStock

30,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AQ300L - Wire EDM For Sale | gindumac.com

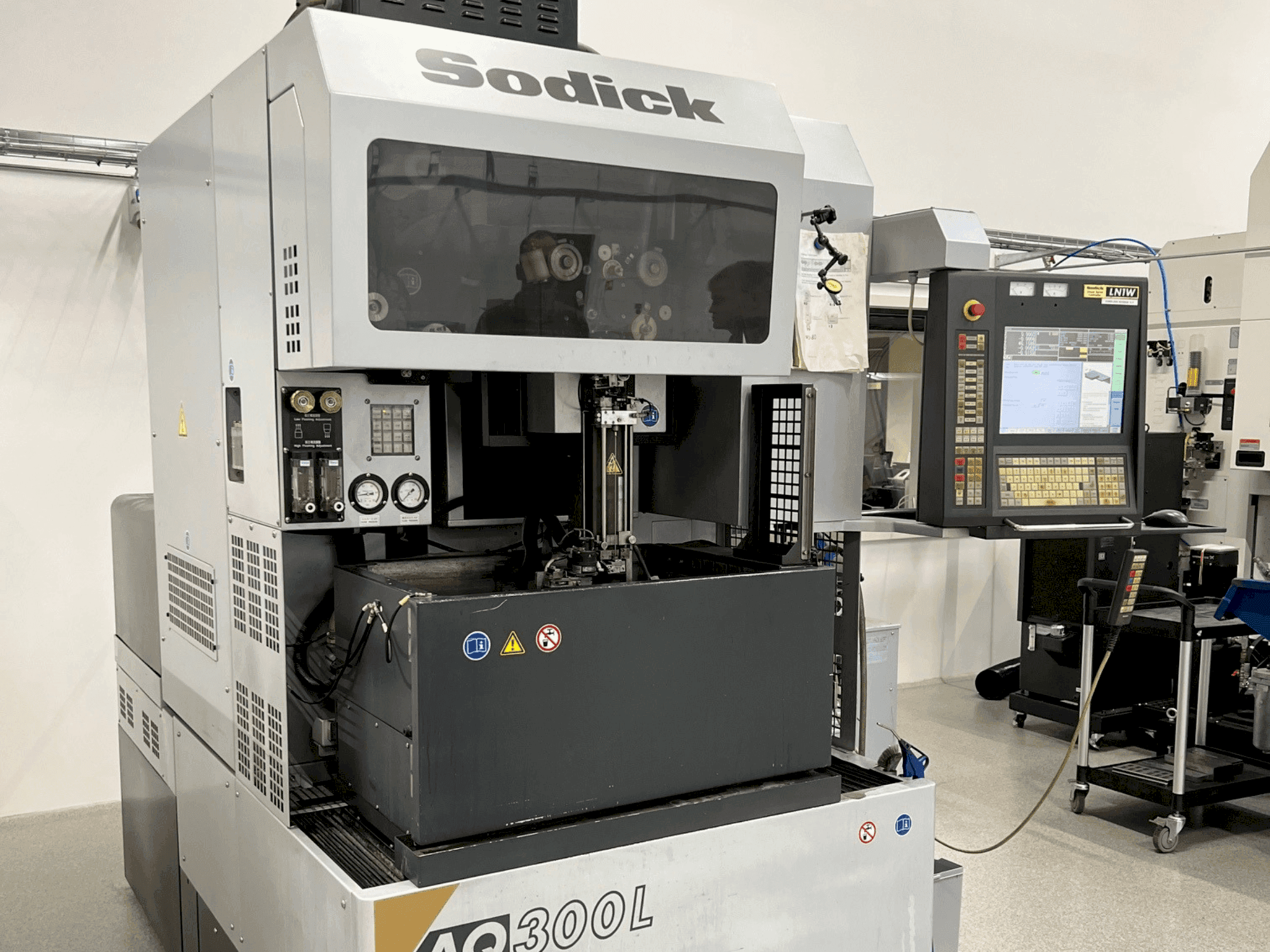

This 5-axis Sodick AQ300L wire EDM machine was manufactured in 2007. It features a travel range of 300 mm x 200 mm on the X and Y axes, and a Z-axis travel of 200 mm. The machine can handle workpieces up to 300 kg and offers a taper angle of ±20°. Ideal for precision machining with wire diameters ranging from 0.15 to 0.3 mm. If you are looking to get high-quality EDM capabilities, consider the Sodick AQ300L machine we have for sale. Contact us for more information.

Overview

brand: Sodick
year: 2007
MODEL: AQ300L
application type: EDM
Location: Denmark
machine type: Wire EDM Machine
availability: Immediately

Technical Information - Sodick AQ300L

General Data

Measurements width: 2400 mm
Measurements depth: 1300 mm
Measurements height: 2210 mm
Machine weight: 2700 kg

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 200 mm
V-Axis Movement: 80 mm
U-Axis Movement: 80 mm

Workpiece

Workpiece weight: 300 kg

Additional Equipment

- Electric Tank External Dimensions (W x D x H): 1300 mm x 900 mm x 2186 mm
- Electric Tank Weight (Empty): 550 kg
- Electric Tank Capacity: 380 liters
- Electric Tank Deionizer: Ion-exchange resin (10-liter type)
- Electric Tank Filtering System: 2 replaceable paper filters (internal-pressure type)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum height of workpiece: 200 mm (general), 180 mm (submerge)
- - Work table size (w x d): 536 mm x 337 mm
- - Work tank dimensions (w x d): 750 mm x 500 mm
- - Distance from floor to table top: 1000 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
