SPINNER - TC600-65-MCYDE-TUR-SPI-2022-00001

Name: SPINNER TC600-65-MCY
Brand: SPINNER
SKU: DE-TUR-SPI-2022-00001
Price: 119000 EUR
Availability: InStock

119,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC600-65-MCY Lathe For sale | gindumac.com

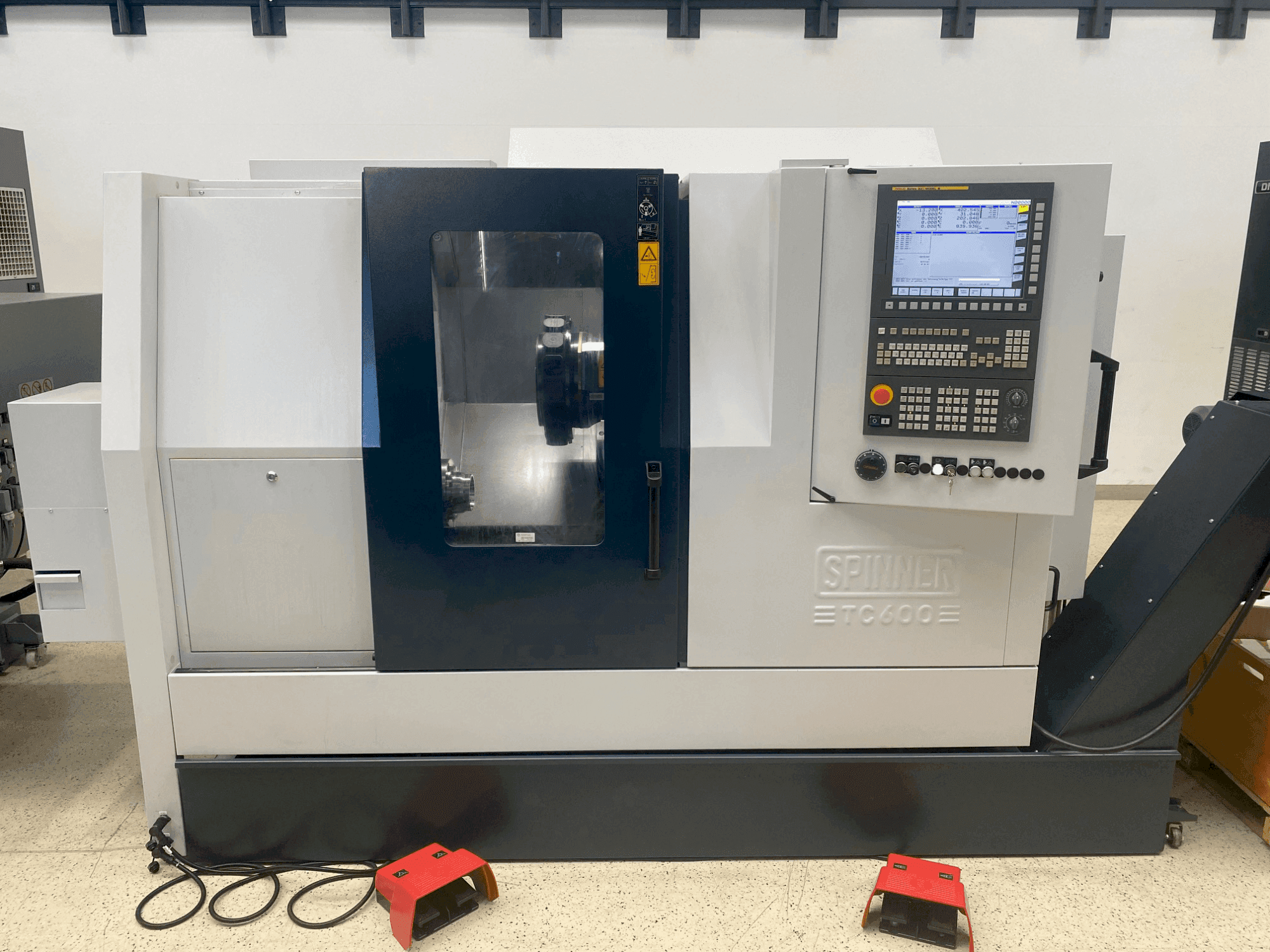

This 4-axis SPINNER TC600-65-MCY lathe was manufactured in 2022. Equipped with a Fanuc 32i TB control system, it features a main and counter spindle speed up to 4000 rpm, driven tools at 6000 rpm, and a 16-position tool turret. It supports a bar passage of 65mm and has a maximum turning length of 650mm. Ideal for precision tasks, the SPINNER TC600-65-MCY machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: SPINNER
year: 2022
MODEL: TC600-65-MCY
production hours: 223
application type: Turning
Location: Germany
machine type: Lathe
availability: Immediately
control unit brand: Fanuc

Technical Information - SPINNER TC600-65-MCY

General Data

Measurements width: 4050 MM
Measurements depth: 2100 MM
Measurements height: 2300 MM
Machine weight: 5800kg

Control Unit

Brand: Fanuc
Model: 32i TB

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: +50/-40 mm
Z-AXIS Movement: 275 mm

Additional Equipment

- Hainbuch Spanntop Mini Axzug 65 A8 collet chuck
- Chip conveyor
- 16-position tool turret
- Tailstock
- Foot switch
- 15 bar high-pressure pump

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle speed range: 4000 rpm (main/counter spindle), 6000 rpm (driven tools)
- - High spindle speeds, advanced control system, robust build
Qualitative Machine Benefits:
- - Low operational hours, high-pressure pump for efficient operations

Extra information

- Traverse paths: Y +50/-40, X 700, Z 275 Bar passage: 65mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
