SPINNER - TC600DE-TUR-SPI-2007-00001

Name: SPINNER TC600
Brand: SPINNER
SKU: DE-TUR-SPI-2007-00001
Price: 37000 EUR
Availability: InStock

37,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC600 For Sale | gindumac.com

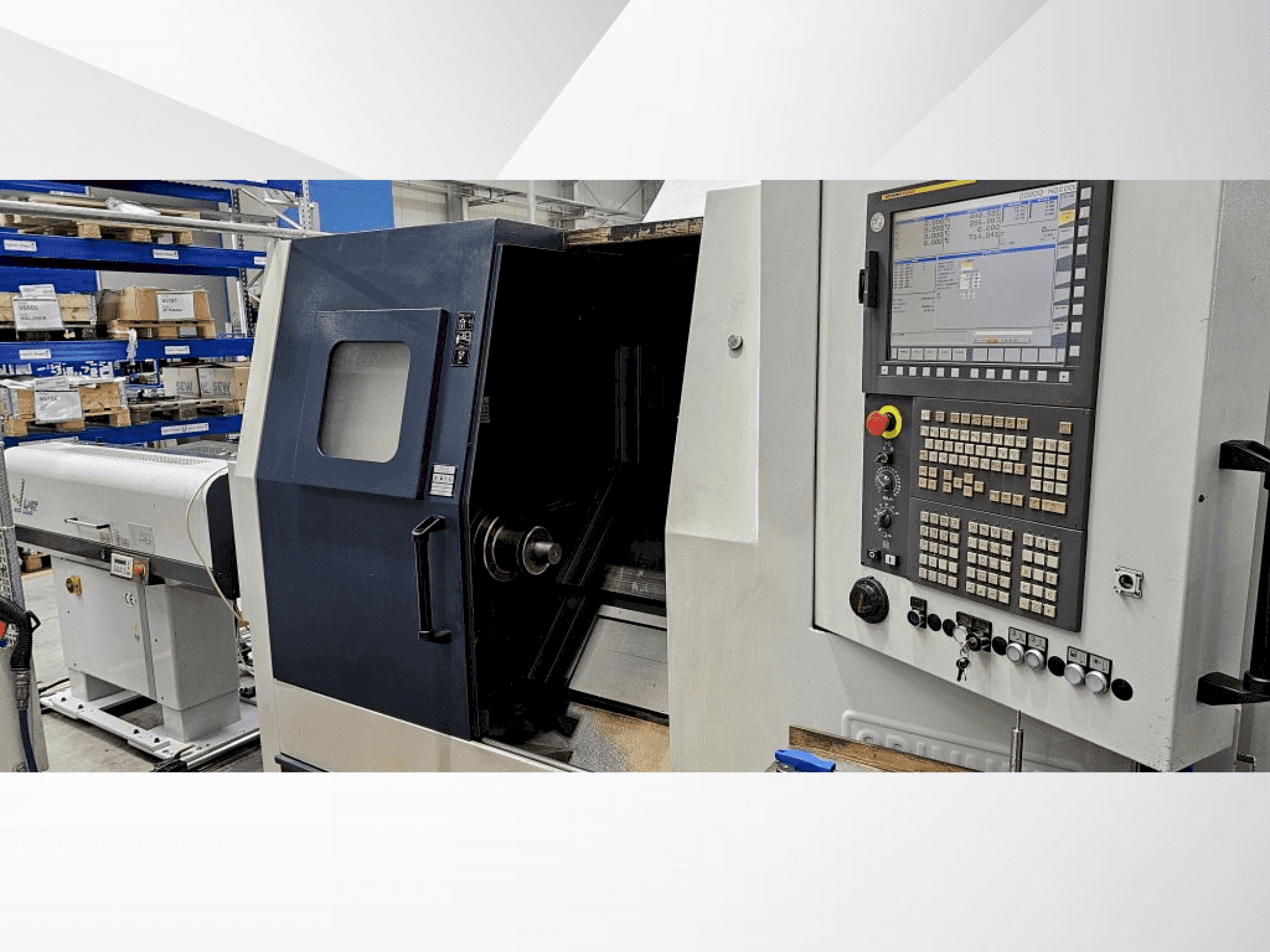

This 3-axis SPINNER TC600 horizontal turning machine was manufactured in 2007. It features a GE Fanuc 31iTA control system, a 16-position revolver, and a spindle speed of up to 4,000 rpm with a power output of 22kW. The travel range is X=275mm, Y=700mm. It includes a high-pressure pump, tool setter, and a chip conveyor, enhancing its operational efficiency. If you are looking to get high-quality turning capabilities consider the SPINNER TC600 machine we have for sale. Contact us for more information.

Overview

brand: SPINNER
year: 2007
MODEL: TC600
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - SPINNER TC600

Control Unit

Brand: FANUC
Model: 31iTA

Main drive

Spindle speed range: Up to 4000 rpm 1/MIN
Spindle motor power: 22kW / 250Nm

Movement

X-AXIS Movement: 275 MM
Y-AXIS Movement: 700 MM

Media

Chip conveyor: Yes

Additional Equipment

- Includes software options for side machining and turning operations
- Turret: 16-position revolver for tool holders according to DIN69830/30mm / 16 tool stations for milling and drilling operations
- Tail Stock: CNC Tailstock Kir TC600 series
- Approximately 30 different VDI30 tools included
- Tool setter for TC600
- Hydraulic hollow clamping cylinder with infinitely adjustable clamping forces
- Electrical interface for connection of bar feeders
- Full splash guard and coolant system
- Work area light and pneumatic extraction system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chip conveyor for tg800
- - High-pressure pump, 13 bar
- - Two-tone paint ral 7035/5008
- - Documentation includes manuals in paper and digital forms

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
