DEMAG Ergotech 50-120 Injection Moulding

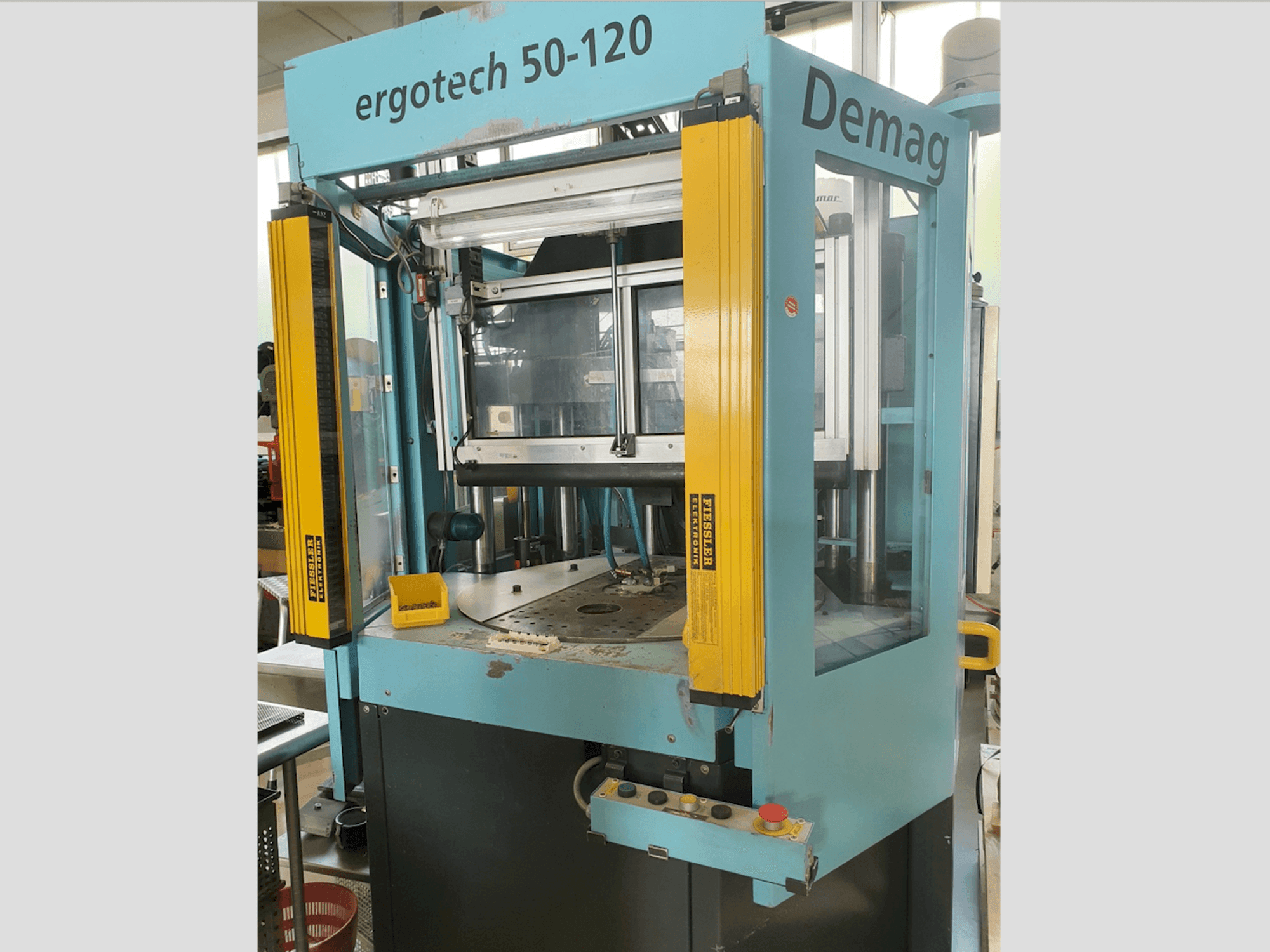

This DEMAG Ergotech 50-120 Injection Moulding Machine was built in 2001. This machine can perform with a clamping force of 500 kN and a screw diameter of 25 mm.

Overview

brand: SUMITOMO SHI DEMAG
year: 2001
MODEL: Ergotech 50-120
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech 50-120

General Data

Measurements width: 3650 mm
Measurements depth: 1450 mm
Measurements height: 1800 mm
Machine weight: 3100 kg

Main drive

Main motor power: 15 kW

Injection Unit

Injection pressure: Injection Pressure: 2400 bar

Clamping unit

Clamping force: 500 kN
Opening stroke: 400 mm
Max open daylight: 610 mm
Distance between bars: 355 mm x 355 mm
Mould height min: 210 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Screw diameter: 25 mm
- - Injection volume: 61 ccm / 54 gram ps
- - Heating power: 5,1 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
