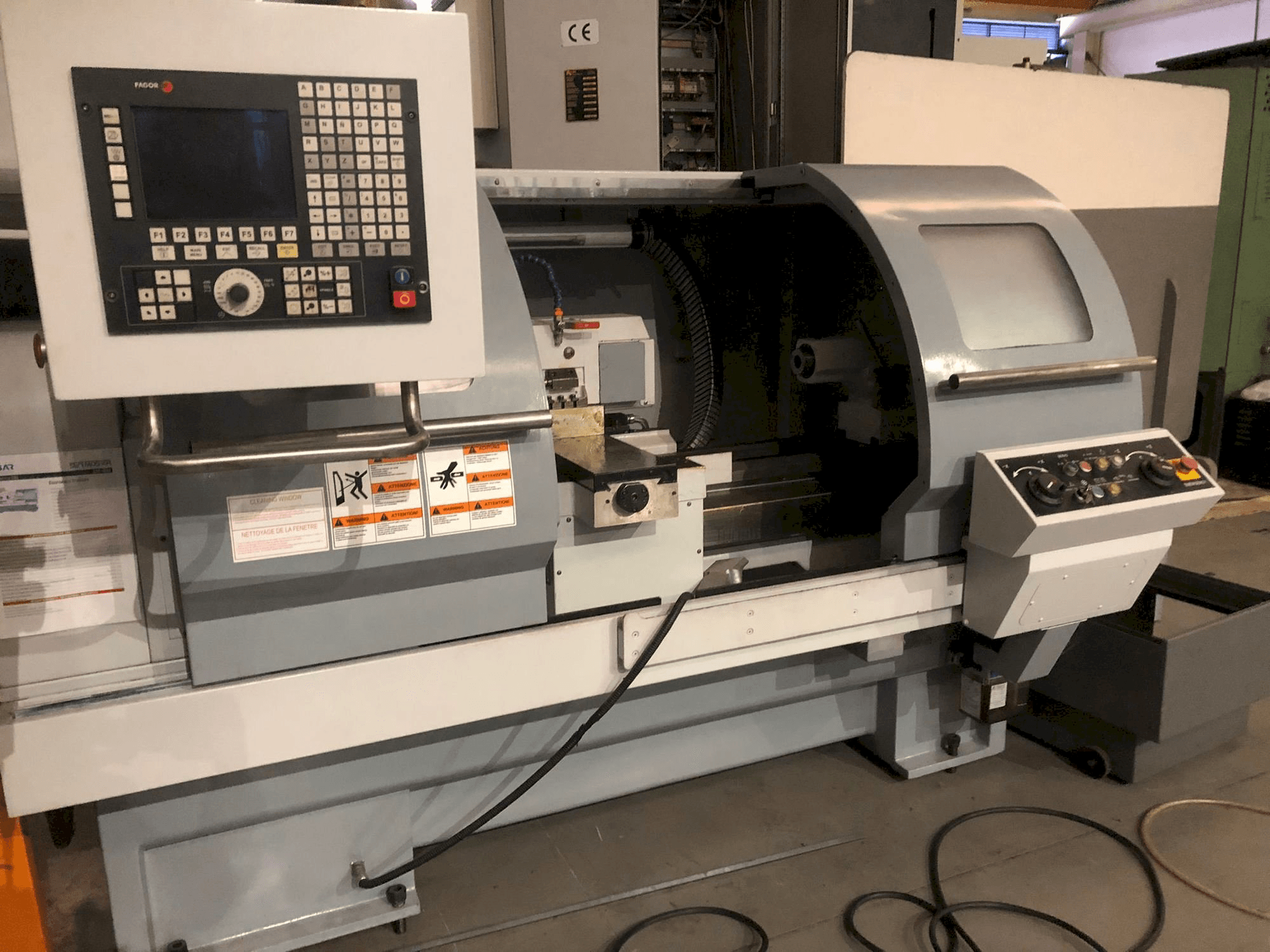

SUNMASTER CSR-1840 Lathe

This SUNMASTER CSR-1840 Lathe was manufactured in the year 2013 in Taiwan. It is equipped with a Fagor 8037 control unit and has 2 axis. The machine has a spindle speed of 27-2500 rpm.

Overview

brand: SUNMASTER
year: 2013
MODEL: CSR-1840
application type: Turning
Location: Portugal
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FAGOR

Technical Information - SUNMASTER CSR-1840

General Data

Measurements width: 4400 mm
Measurements depth: 1790 mm
Measurements height: 2000 mm
Machine weight: 2160 kg

Control Unit

Model: 8037
Brand: FAGOR

Main drive

Spindle speed range: 27-2500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 230 mm
Y-AXIS Movement: 850 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter on bed :460 mm
- - Distance between points: 900 mm
- - Max. Turning length with 4-position turret: 750 mm
- - Max. Turning length with hydraulic turret p8: 600 mm
- - Max. Turning diameter with 4-position turret: 260 mm
- - Maximum turning diameter with hydraulic turret p8 :250 mm
- - Bedplate length: 305 mm
- - 8" hydraulic chuck, a2-6
- - 8-position hydraulic turret
- - Bomba refrigeración de alta presion
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
