➤ Used Takamaz X-180 For Sale | gindumac.com

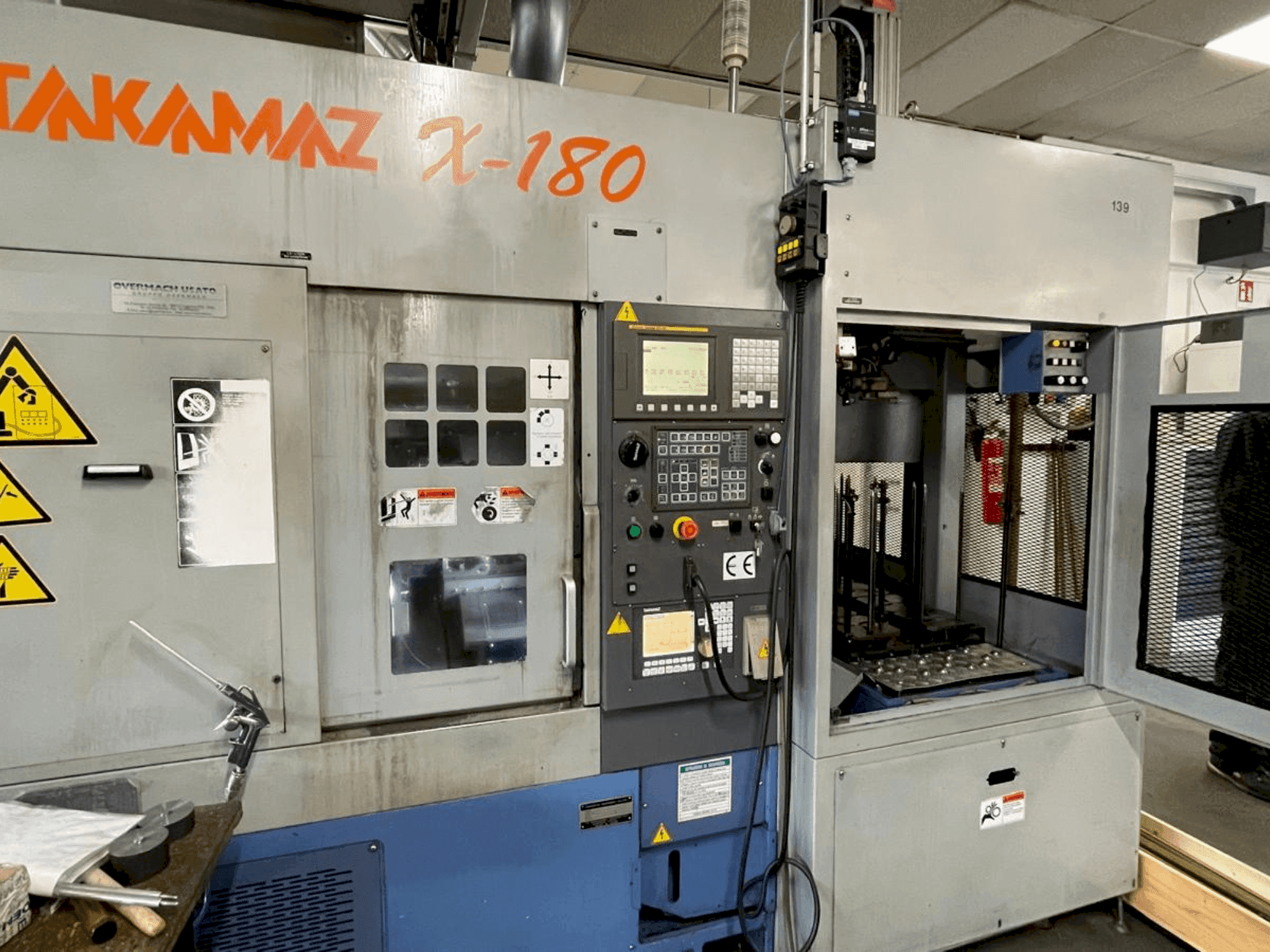

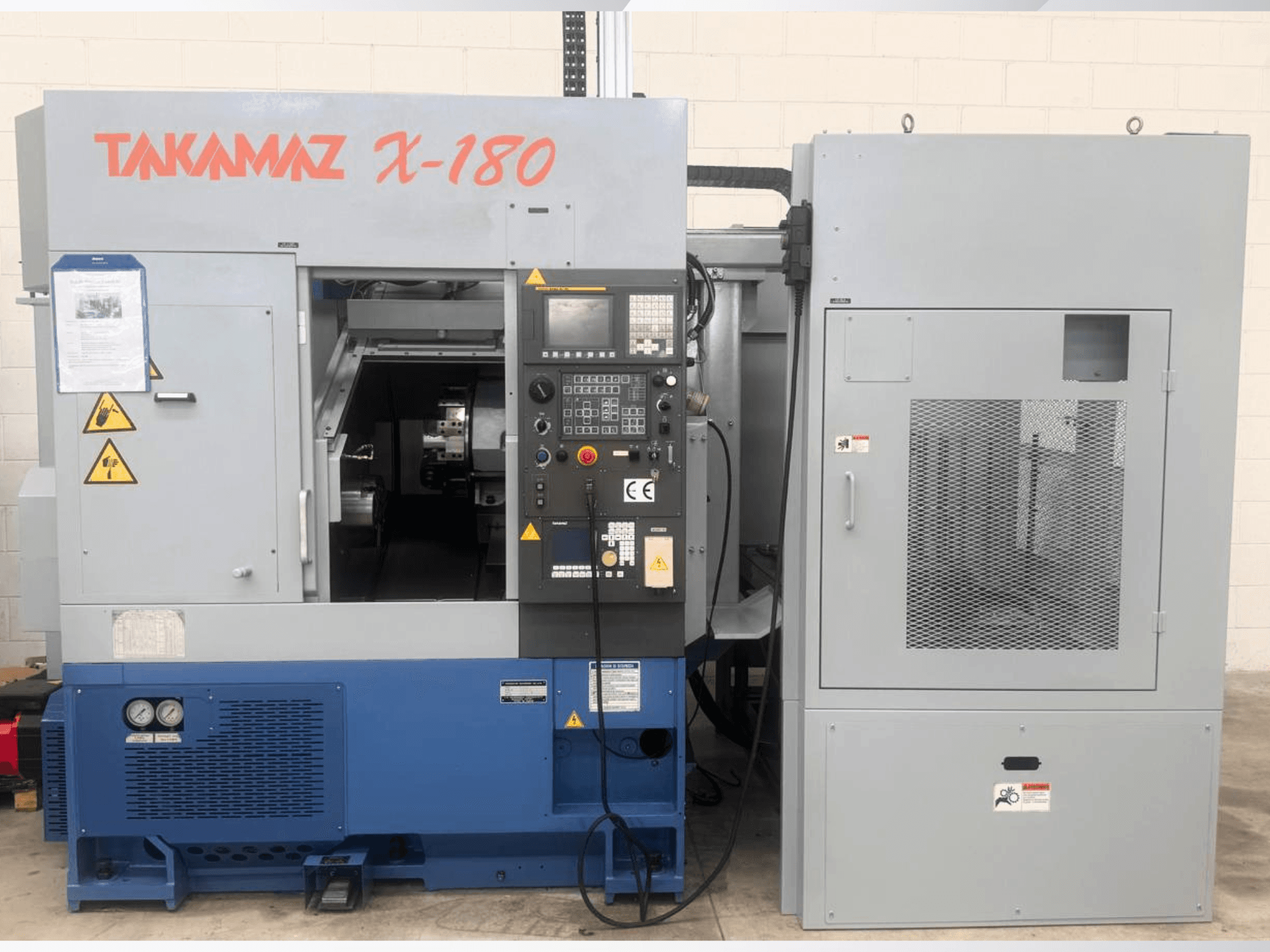

This 3-axis Takamaz X-180 horizontal turning machine was manufactured in 2008. It features a maximum turning diameter of Ø 210 mm, a turning length up to 230 mm, and a bar diameter capacity of Ø 51 mm. The spindle supports speeds up to 3,500 RPM, enhancing productivity. Ideal for precision machining, it includes a 12-station revolver turret and rapid traverse speeds of 24 m/min on both X and Z axes. Contact us for more information about this machine.

Overview

brand: Takamaz
year: 2008
MODEL: X-180
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Takamaz X-180

General Data

Measurements depth: 1835 mm
Measurements height: 1525 mm
Machine weight: 3500 kg

Control Unit

Brand: FANUC
Model: Series 0i-TC

Main drive

Spindle speed range: 3500 1/MIN
Spindle bore: 61 mm
Number of axis: 3

Movement

X-AXIS Movement: 175 mm
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 330 mm
Z-AXIS Rapid traverse: 24 m/min

Additional Equipment

- Chuck dimensions: 8 inches

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning diameter: Ø 210 mm // maximum turning length: 230 mm (collet 278 mm)
- - Maximum bar diameter: Ø 51 mm (Ø 42 mm)
- - Spindle nose: jis a2-6
- - Spindle bearing internal diameter: Ø 100 mm
- - Type: revolver with 12 stations
- - Tool dimensions: 25 mm²
- - Internal diameter of boring toolholder: Ø 32 mm
- - Tools maximum speed: max. 3600 min⁻¹
- - Drilling capacity: Ø 12 mm // milling cutter capacity: Ø 16 mm
- - Tapping capacity: m8

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
