Takisawa TA-25Y Lathe

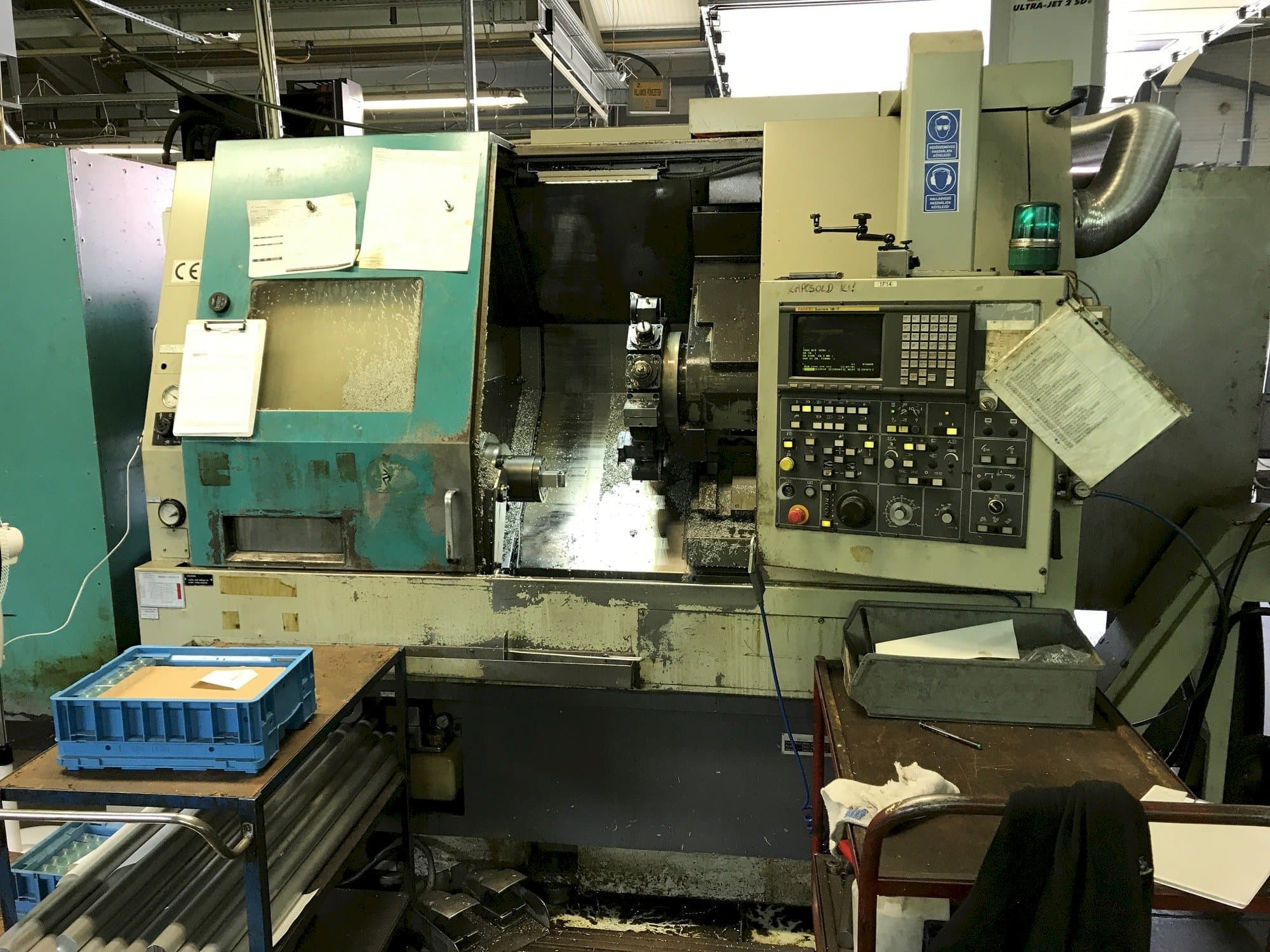

This Takisawa TA-25Y Lathe was manufactured in the year 2000 in Japan and has been operative for 16290 hours. Equipped with a FANUC Series 18-T Control unit, this machine can work with a spindle speed up to 4000 rpm. Additional equipment such as tools, tool holders and a chuck are included.

Overview

brand: Takisawa
year: 2000
MODEL: TA-25Y
production hours: 16290
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Takisawa TA-25Y

General Data

Measurements width: 2530 mm
Measurements depth: 2247 mm
Measurements height: 2210 mm
Machine weight: 5200 kg

Control Unit

Model: Series 18-T
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 185 mm
Y-AXIS Movement: 100 (+-50) mm
Z-AXIS Movement: 660 mm
C-AXIS Movement: 360° MM

Tools

Slots in storage: 10
Type of tool holder: AR32

Media

Power consumption: 33 kVA

Additional Equipment

- Tools
- Tool holders
- chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
