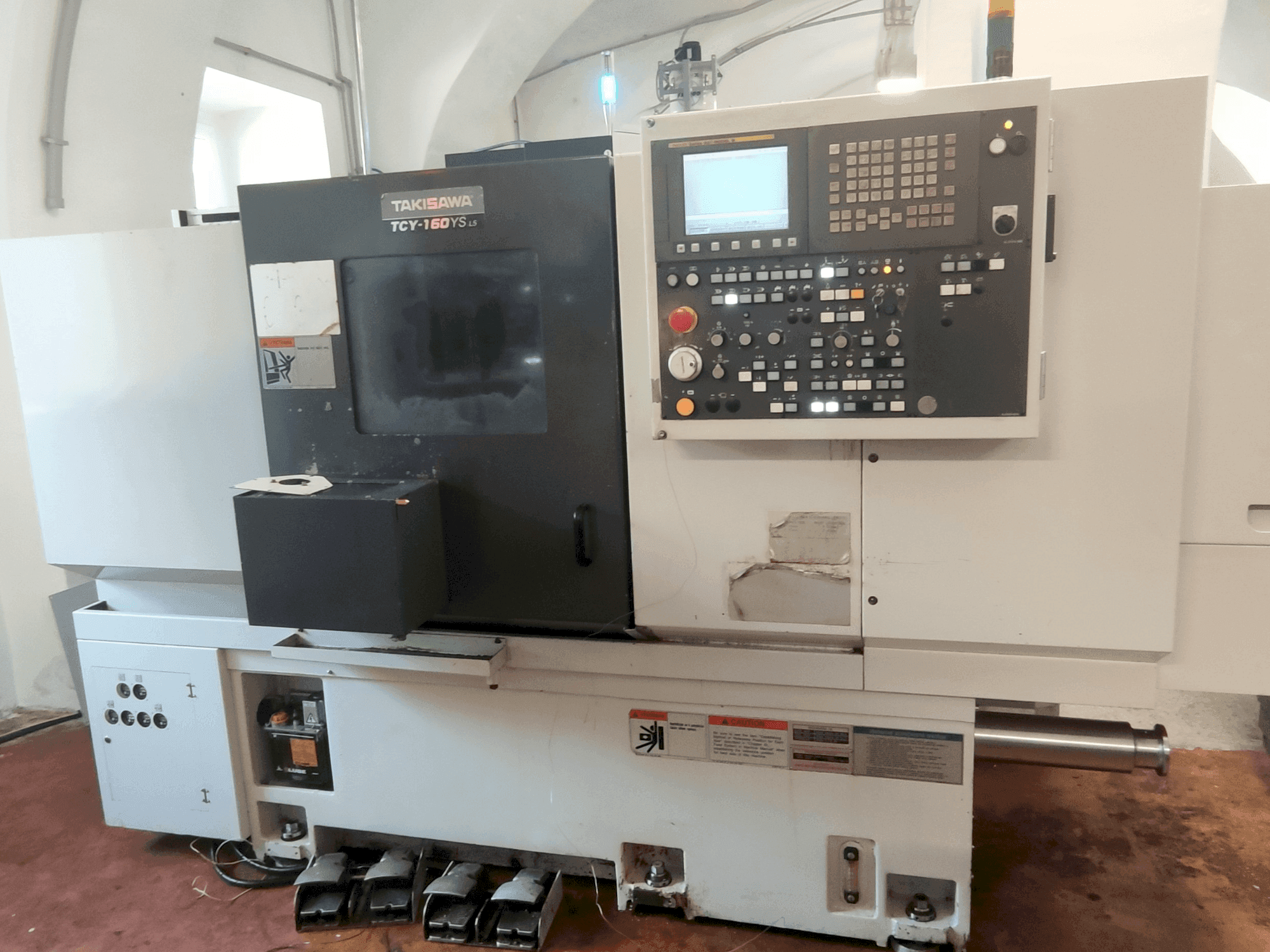

Takisawa TCY-160YS L5 Lathe

This Takisawa TCY-160YS L5 Lathe was manufactured in the year 2015. It is equipped with a FANUC Seris 32i B. The machine has a spindle speed of 6000 rpm. Simultaneous machining with spindle and counter spindle based on bar capacity of 42mm. As an Opposed Twin-Spindle CNC Lathe with a max. turning diameter of 220 mm and max. turning length of 491 mm it provides a solid turning solution for machinists.

Overview

brand: Takisawa
year: 2015
MODEL: TCY-160YS L5
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Takisawa TCY-160YS L5

General Data

Measurements width: 2760 MM
Measurements depth: 1695 MM
Measurements height: 1700 MM
Machine weight: 4100 KG

Control Unit

Model: Seris 32i B
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/min

Movement

X-AXIS Movement: 185 MM
Y-AXIS Movement: +/- 30 MM
Z-AXIS Movement: 530 MM

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity 42 mm
- - Max. Swing 340 mm
- - Max. Turning diameter 220 mm
- - Max. Turning length 491 mm
- - Main spindle power 5. 5/3. 7 kw
- - Sub-spindle speed 6000 rpm, power 3. 7/2. 2 kw
- - 3. 7/2. 2/1. 5 kw milling motor; 6,000 rpm milling speed
- - Air blow and coolant through spindle
- - Workpiece ejector / spring type
- - Incl. Tool holders
Qualitative Machine Benefits:
- - Good condition

Extra information

- Machine manual available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
