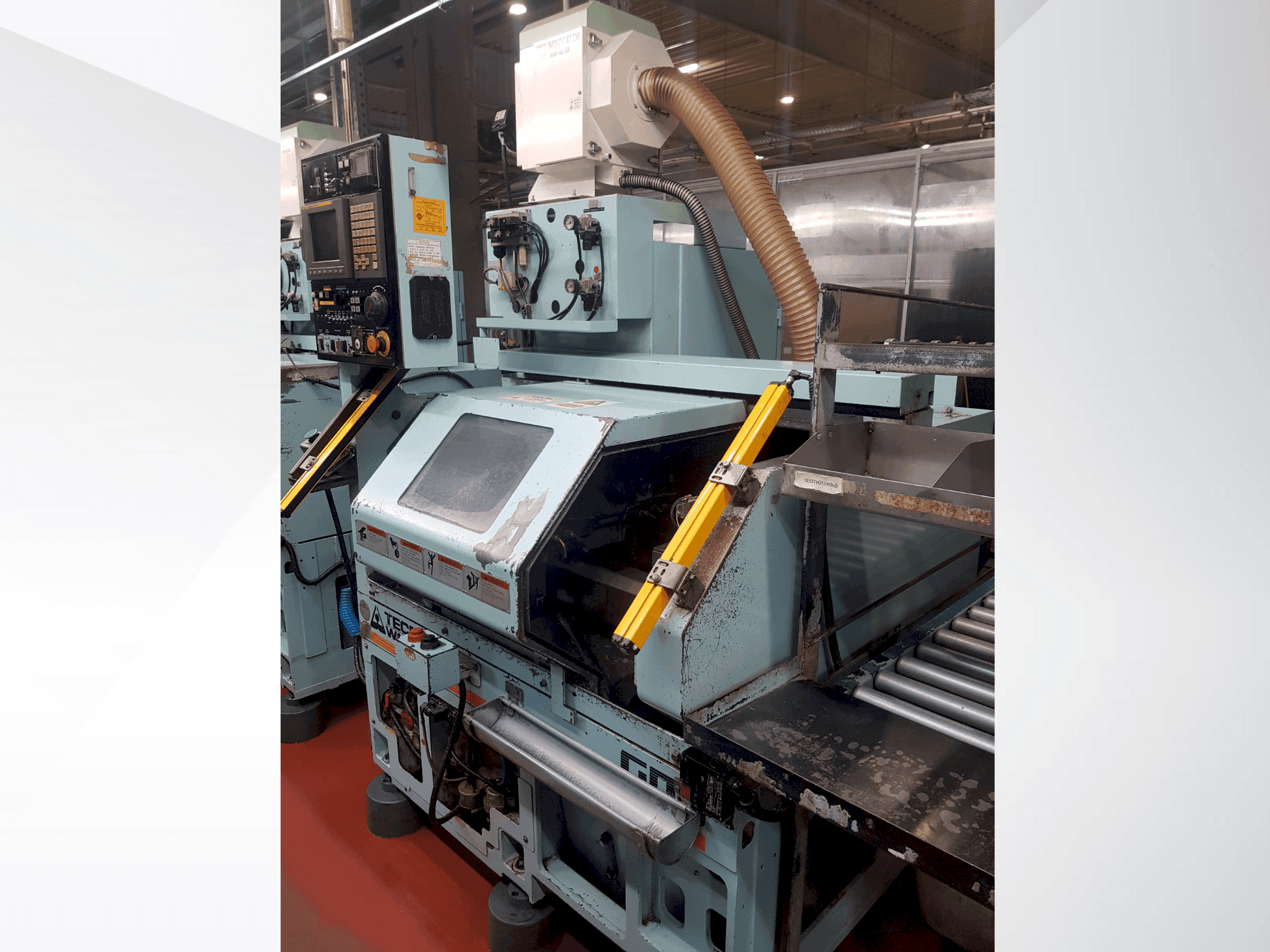

➤ Used TECNO WASINO G06 - Lathe For sale | gindumac.com

This TECNO WASINO G06 lathe was manufactured in 2005. It is equipped with a Fanuc controller and operates on a 200V, 3-phase system with a main breaker capacity of 50A. Designed for turning applications, it ensures reliability with a main air pressure of 0.4 MPa. This machine tool provides robust performance for precision machining tasks. The TECNO WASINO G06 machine we have for sale is an excellent opportunity for enhancing your production capabilities. Contact us for more information.

Overview

brand: TECNO WASINO
year: 2005
MODEL: Wasino G06
production hours: 120000
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - TECNO WASINO Wasino G06

General Data

Measurements height: 1670 mm

Control Unit

Model: Series 21i-TB
Brand: FANUC

Main drive

Spindle speed range: 6000 / 8000 rpm 1/MIN
Spindle bore: 45 mm
Number of axis: 2

Movement

X-AXIS Movement: 300 mm
X-AXIS Feed Force: 12 m/min
Z-AXIS Movement: 285 mm
Z-AXIS Feed Force: 20 m/min

Media

Air pressure: 0.4 MPa

Additional Equipment

- Standard chuck: Precision air chuck
- Tool Table

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Standard tool shank: 16 mm (5/8 in. )
- - Voltage required: 200 v
- - Phase: 3p
- - Main breaker: 50 a
- - Maximum swing diameter: 285 mm (11-7/32 in. )
- - Nominal workpiece dimensions: 60 mm (2-3/8 in. ) diameter x 60 mm (2-3/8 in. ) length
- - Bar capacity: 38. 1 mm (1-1/2 in. )
- - Center height from floor: 1000 mm (39-3/8 in. )
- - Spindle nose: 100 mm (3-15/16 in. ) flat
- - Machine floor space: 1400 x 1555 mm (55 x 61 in. )
Qualitative Machine Benefits:
- - Feed axes
- - Tooling type: gung-type
- - Spindle motor output

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
