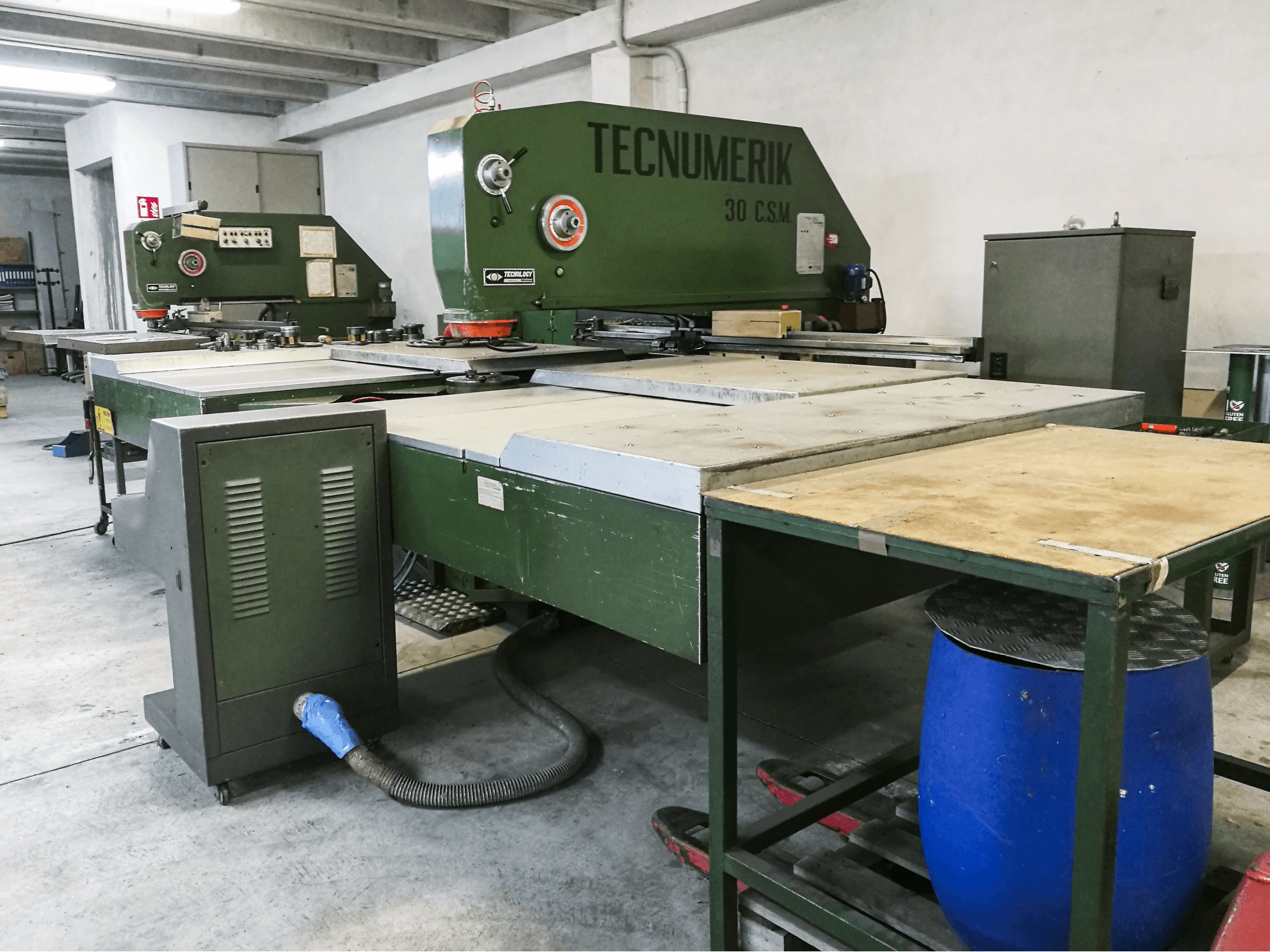

Tecnology Tecnumerik 30 C.S.M. Turret Punching Machine

This Tecnology Tecnumerik 30 C.S.M. Turret Punching Machine was manufactured in the year 1988 and has a working record of 25000 production hours. This machine is equipped with a FANUC OP control unit, operates with a punching force of 300 kN and includes a great variety of tools as additional equipment. In the past, this equipment has worked on up to 4 mm thick stainless steel, but can process up to 8 mm thick materials if required.

Overview

brand: Tecnology
year: 1988
MODEL: Tecnumerik 30 C.S.M.
production hours: 25000
application type: Punching
Location: Italy
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - Tecnology Tecnumerik 30 C.S.M.

General Data

Measurements width: 4400 mm
Measurements depth: 4640 mm
Measurements height: 2050 mm
Machine weight: 4200 kg

Control Unit

Brand: FANUC
Model: OP

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 40-1500 mm
Y-AXIS Movement: 40-1000 mm

Tools

Max tool diameter: 100 mm

Max Material thickness

Steel: 6 mm
Stainless steel: 5 mm
Aluminum: 8 mm

Media

Power consumption: 12 kW
Air pressure: 5 bar

Additional Equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
