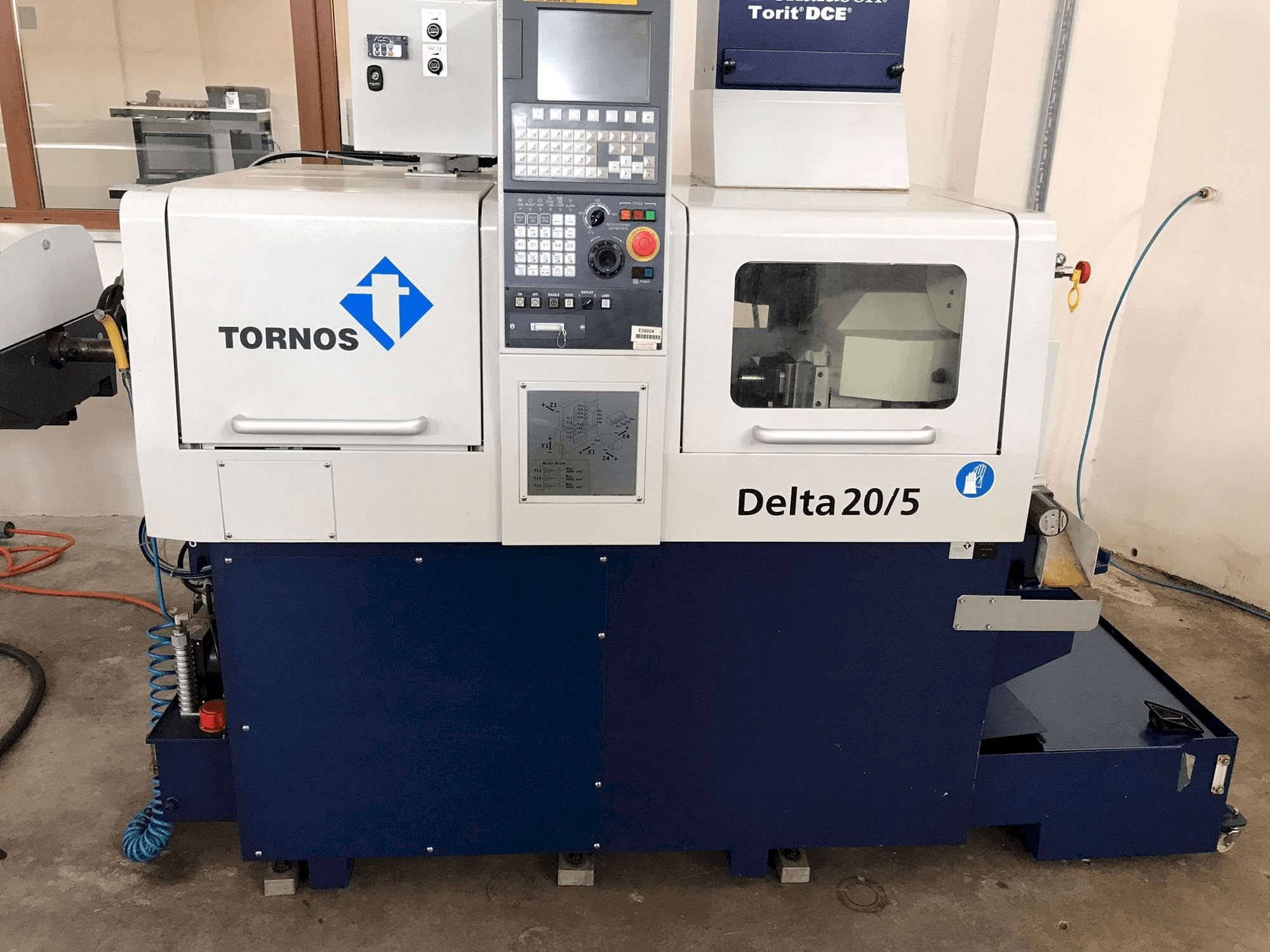

Tornos Delta 20/5 Lathe

This Tornos Delta 20/5 Lathe was manufactured in the year 2012. It has been working for 490 hour. It is equipped with a Fanuc Series Fanuc Oi TD control unit. This machine can work with a main spindle speed up to 10000 rpm, and a sub spindle speed up to 12000 rpm.

Overview

brand: TORNOS
year: 2012
MODEL: Delta 20/5
production hours: 490
application type: Turning
Location: Turkey
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - TORNOS Delta 20/5

General Data

Measurements height: 1725 mm
Machine weight: 1950 kg

Control Unit

Model: Series Oi TD
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 3.7 kW
Number of axis: 5

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle: max bar diameter 20 mm, maximum machining length 170 mm, c axis indexing precision : 0. 001°
- - Counter-spindle: max bar diameter 20 mm, z stroke, spindle speeds : 12000 rpm, spindle power : 2. 2 kw, c axis indexing precision : 1°
- - Number of guide bush holders : 1 guide bush holder 1
- - Number of positions : 8
- - Number of motorized positions : 3
- - Live tools speed : 8000 [rpm] end attachment
- - Number of positions : 4 secondary operation
- - Number of positions : 7 power supply
- - 3 colors status lamp
- - Rotating guide bush
Qualitative Machine Benefits:
- - Parts catcher
- - Parts conveying strip
- - Ejection of workpiece
- - Coolant tank
- - With high-pressure pump : 30 [bars]
- - With fire extinguisher and oil mist

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
