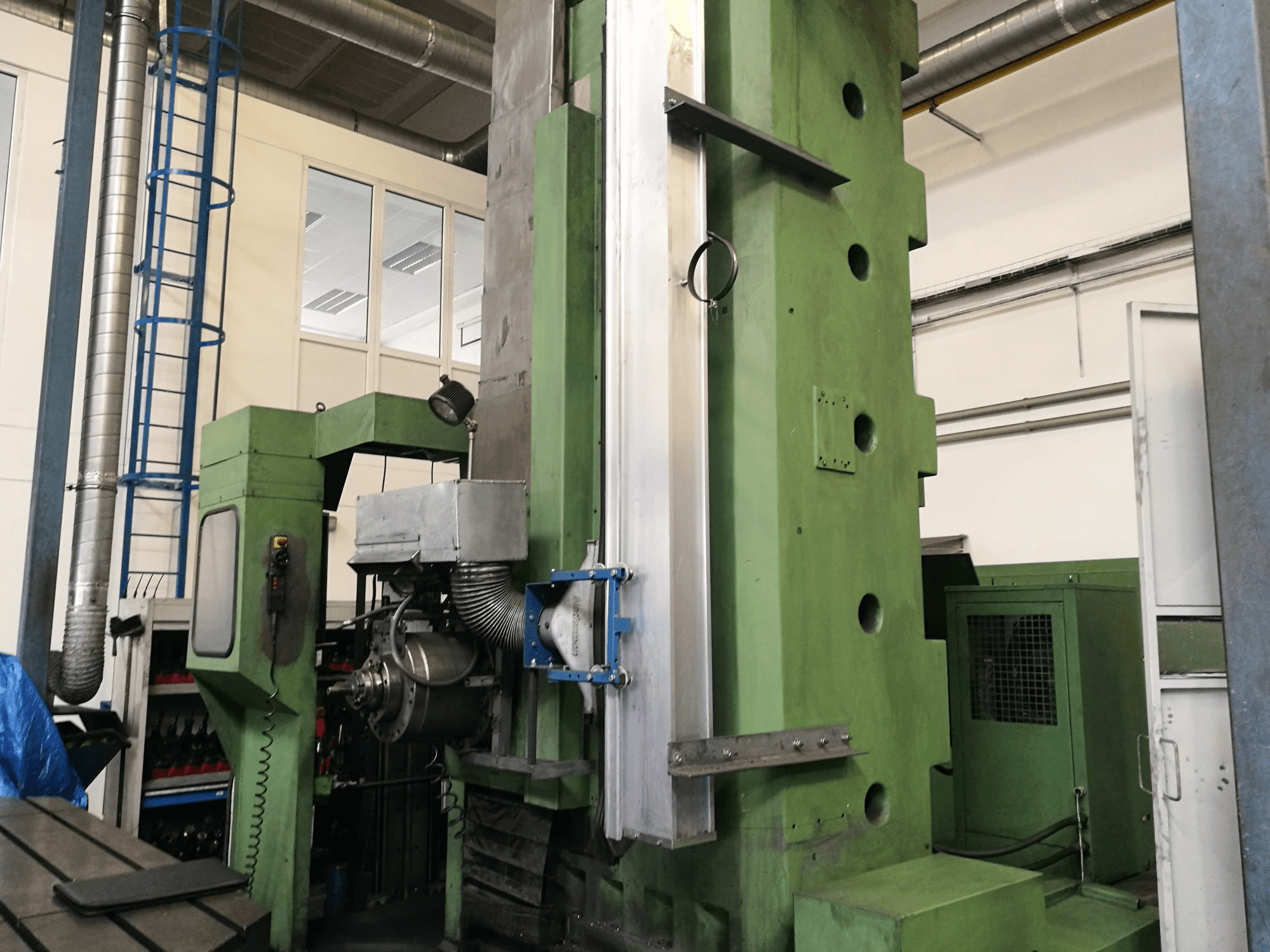

TOS WHN 130 Boring Machine

This TOS WHN 130 Boring Machine was manufactured in 2002 in the Czech Republic and has a production record of 52000 working hours. Equipped with a Heidenhain TNC 430 Control unit, this machine has mainly worked with steel during the past and got its spindle replaced in 2013. This model stands out due to its large table size and load and was regularly inspected. Several additional equipment is included in the delivery.

Overview

brand: TOS
year: 2002
MODEL: WHN 130
production hours: 52000
application type: Other Machine Tools
Location: Czech Republic
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TOS WHN 130

General Data

Measurements width: 7300 mm
Measurements depth: 6300 mm
Measurements height: 4550 mm
Machine weight: 38000 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 430

Main drive

Spindle speed range: 3000 1/min

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1600 mm
W-Axis Movement: 800 mm

Workpiece

Workpiece weight: 12000 kg

Table

Outer length: 1800 mm
Outer width: 2400 mm

Media

Power consumption: 86 kVA
Chip conveyor: Yes

Additional Equipment

- 1x Renishaw Probe
- 2x Angle Plate
- Toolset
- 151x Clamps
- Milling Head
- Spindle Accelerator

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
