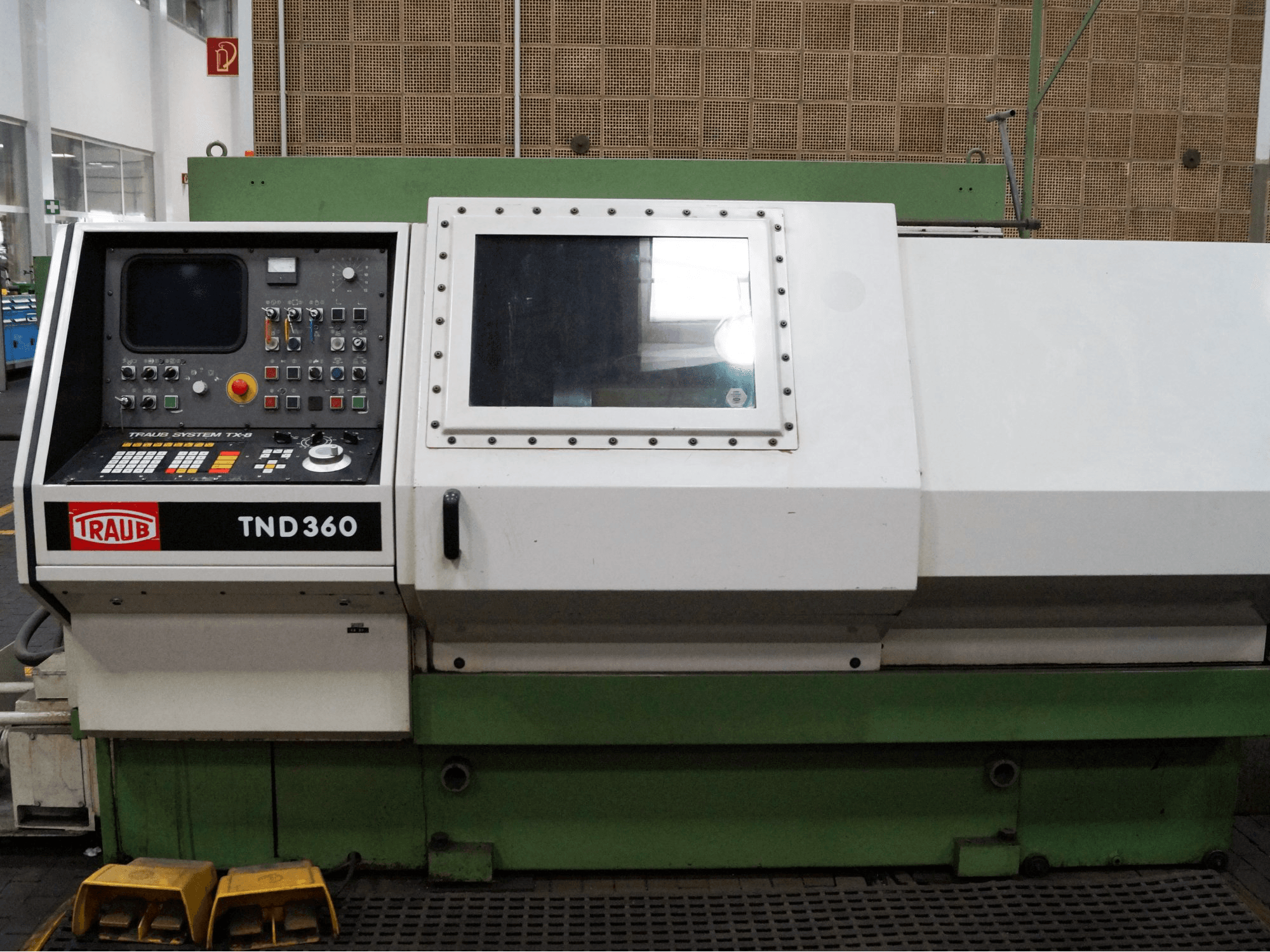

TRAUB TND 360 Lathe

This TRAUB TND 360 Lathe from 1988 has a production record of only 9500 hours. Operated through a Traub TX8 Control unit, the equipment stands outs for its 8 Tool turret as well as for its wide variety of toolholders.

Overview

brand: TRAUB
year: 1988
MODEL: TND 360
production hours: 9500
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: TRAUB

Technical Information - TRAUB TND 360

General Data

Measurements width: 3270 mm
Measurements depth: 2005 mm
Measurements height: 1800 mm
Machine weight: 3500 kg

Control Unit

Brand: TRAUB
Model: TX8

Main drive

Number of spindles: 1
Spindle speed range: 7-3150 1/min
Spindle motor power: 27 kW
Spindle bore: 61 mm

Movement

X-AXIS Movement: 205 mm
X-AXIS Working Feed: 0-10000 mm/min
X-AXIS Feed Force: 5000 N
X-AXIS Rapid traverse: 10 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Working Feed: 0-10000 mm/min
Z-AXIS Feed Force: 8000 N
Z-AXIS Rapid traverse: 10 m/min

Workpiece

Workpiece drm over bed: 360 mm
Workpiece drm over support: 160 mm
Workpiece z: 800 mm

Turret

Number of turrets: 1
Number of tool slots: 8

Tail Stock

Pinol diameter: 85 mm
Pinol force: 9000 N
Pinol way: 110 mm
Pinol tool taper: MK 5 DIN229

Media

Power consumption: 38 kVA

Additional Equipment

- 6x Tool holder cylindric D=32
- 2x Tool holder cylindric D=25
- 2x Tool holder cylindric D=20
- 2x Tool holder MK 4
- 2x Tool holder MK 3
- 1x Tool holder MK 2
- 2x reduction sleeve D32 -> D20
- 1x reduction sleeve D25 -> D20
- 1x reduction sleeve D20 -> D10
- 3x special Tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
