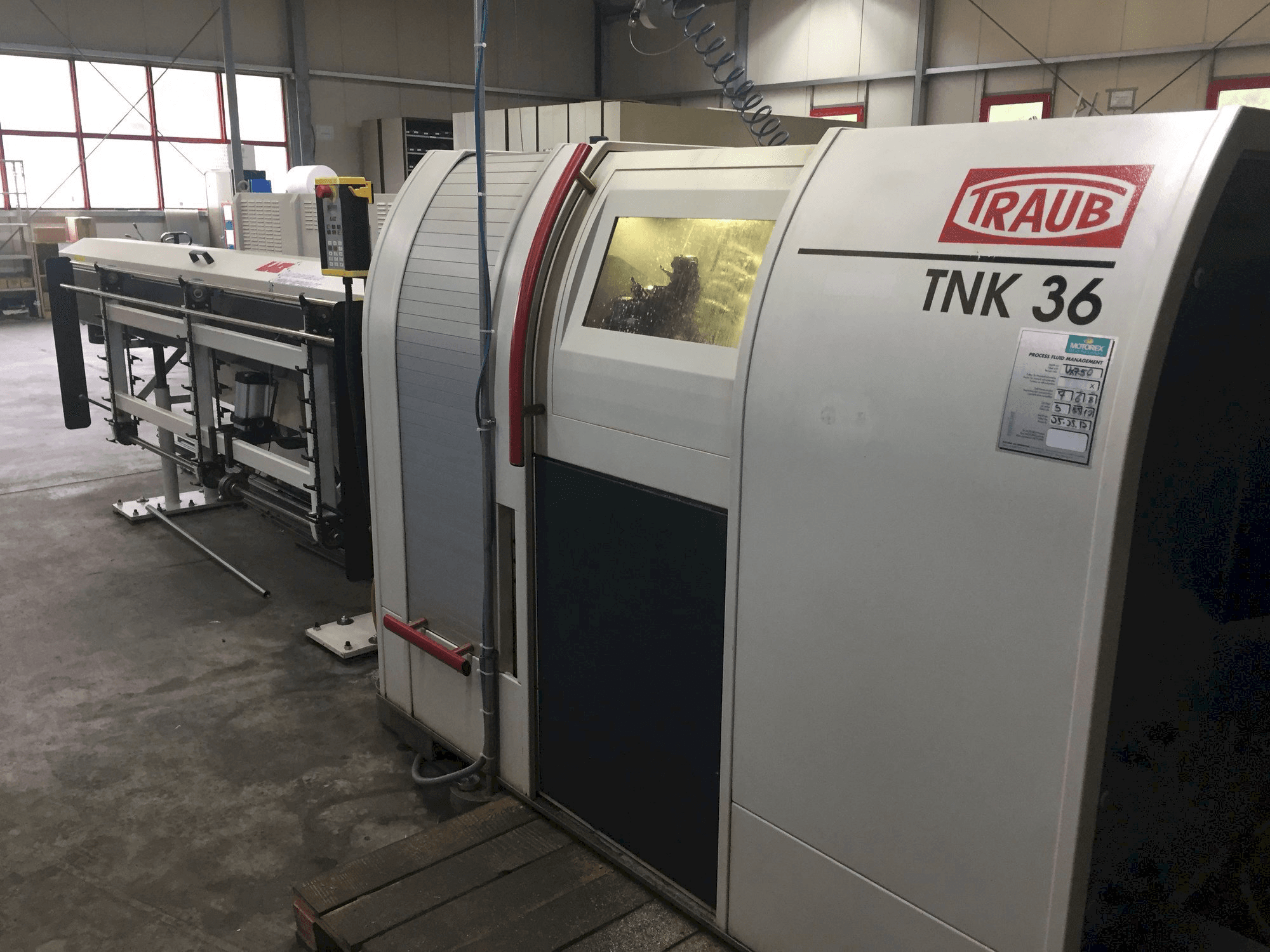

TRAUB TNK 36 Lathe

This TRAUB TNK 36 Lathe was manufactured in 2001 in Germany and has been operative for 59222 hours. Equipped with a TRAUB Control unit, this machine operates with a spindle speed up to 6300 rpm. A Bar feeder is included as additional equipment.

Overview

brand: TRAUB
year: 2001
MODEL: TNK 36
production hours: 59222
application type: Turning
Location: Switzerland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: TRAUB

Technical Information - TRAUB TNK 36

General Data

Measurements width: 2090 mm
Measurements depth: 1130 mm
Measurements height: 1680 mm
Machine weight: 3200 kg

Control Unit

Brand: TRAUB
Model: TX 8I

Main drive

Number of spindles: 2
Spindle speed range: 6300 1/MIN

Workpiece

Workpiece drm: 36 mm
Workpiece x: 50 mm
Workpiece z: 100 mm
Workpiece weight: 20 kg

Turret

Number of turrets: 1
Max tool length: 42 mm

Tools

Max weight: 25 kg
Max tool diameter: 6 mm
Max tool length: 250 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 24 kW
Chip conveyor: Yes

Additional Equipment

- Bar feeder: LNS Hydrobar mini sprint

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
