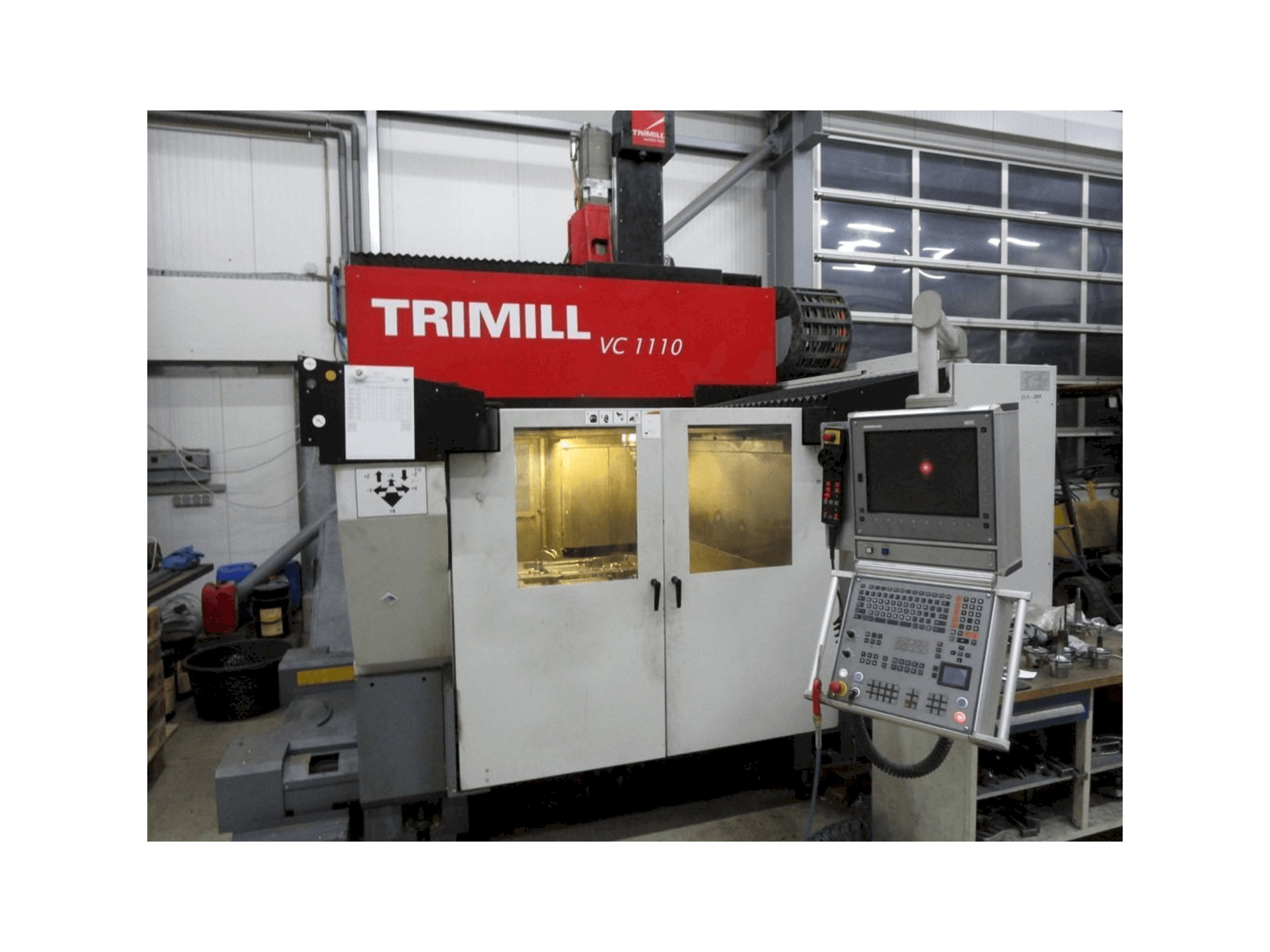

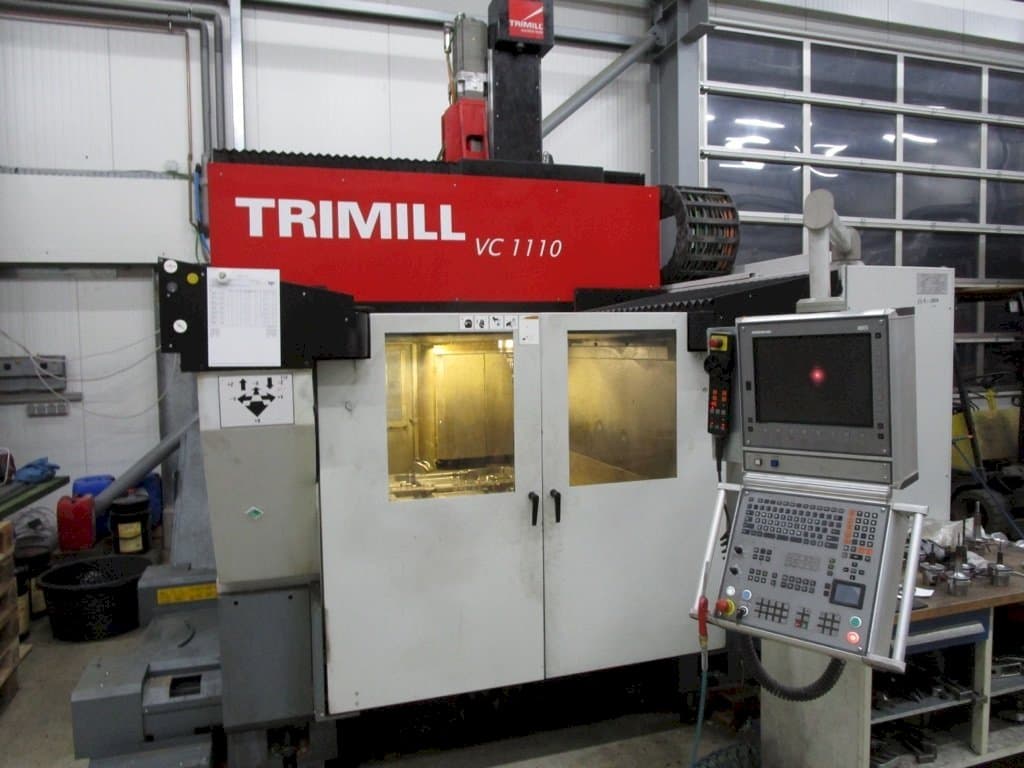

TRIMILL VC1110 milling machine

This TRIMILL VC1110 milling machine was made in the year 2011 in the Czech Republic. It is operated with a Heidenhain TNC530 control unit. It has approximately 12000 spindle hours. This machine has a spindle speed up to 14000 rpm. This 3 axis machine especially developed for the tool, die and mould industry.

Overview

brand: TRIMILL
year: 2011
MODEL: VC1110
production hours: 12000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TRIMILL VC1110

General Data

Measurements width: 4300 mm
Measurements depth: 3550 mm
Measurements height: 3810 mm
Machine weight: 15000 kg

Control Unit

Model: TNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 14000 1/MIN
Spindle motor power: 25 kW
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Movement: 1110 mm
Y-AXIS Rapid traverse: 30000 mm/min

Table

Outer length: 1500 mm
Outer width: 1300 mm
Table load: 8000 kg

Tools

Type of tool holder: HSK80

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Heavy duty 3-axes machine, especially developed for the tool-, die- and mould industry
- - Closed design of the double-beam and cross-slide (box in box design) with internal, quadruple guided ram-type milling unit
- - Constantly perfect cutting results by means of load- and thermo symmetric design
- - Execution as overhead gantry, therefore controlled dynamic and accuracy
- - Stationary work piece for constantly good surface qualities
- - High productivity by means of roughing and finishing in one set-up
- - Very compact machine, large working area in spite of extreme small floor-space
- - Customized distance between spindle nose and clamping surface
- - Ergonomic operation by means of floor-level access to the machine tool
- - Convincing cost-performance ratio
Qualitative Machine Benefits:
- - Laser measurement
- - 10 compartment changer
- - 3-d probe
- - Top equipped

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
