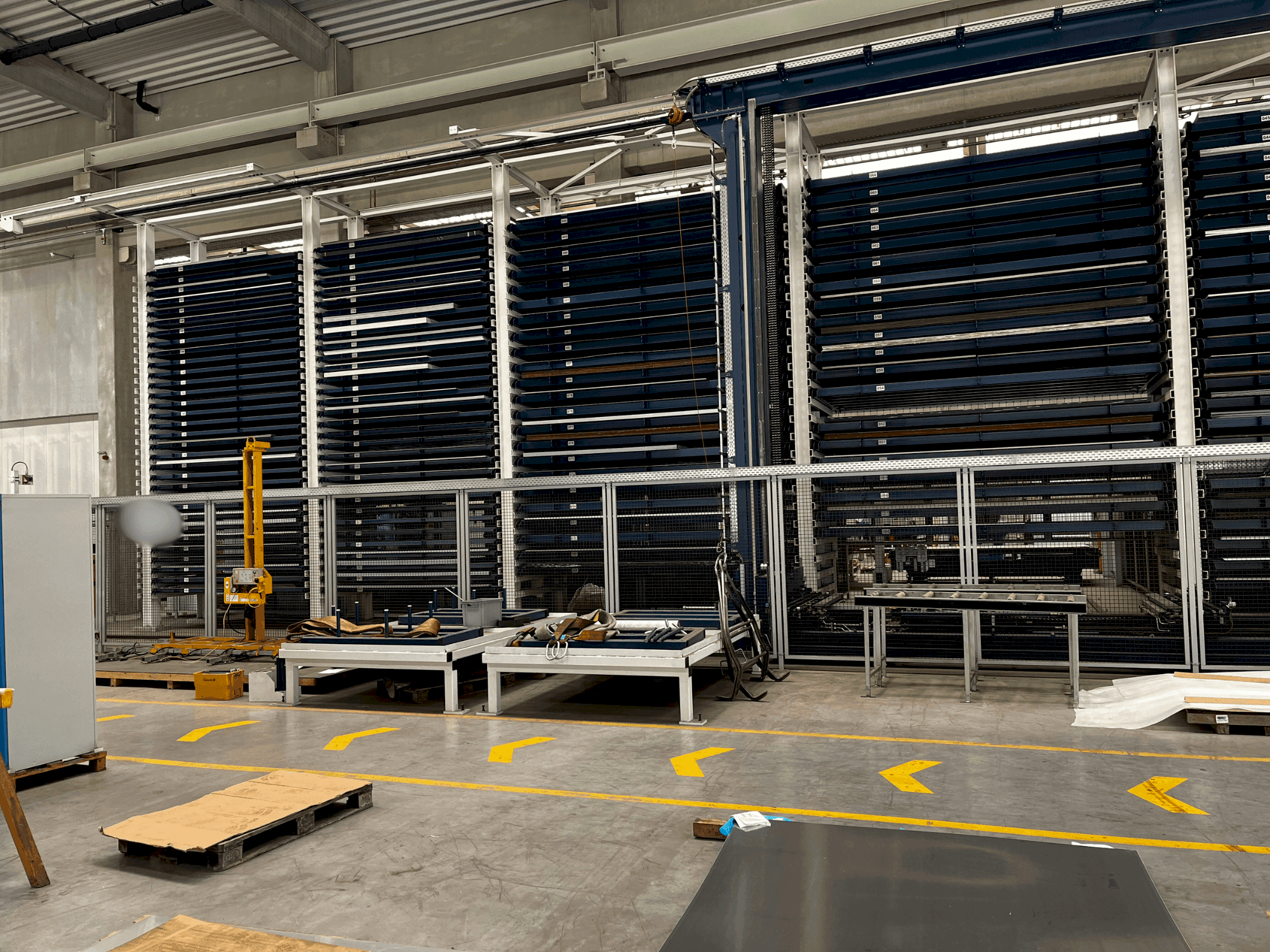

TRUMPF - STOPADE-OTH-TRU-2019-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Payload per pallet:sf/xf: max. 5,000 kg gf: max. 3,000 kg
  • - Usable pallet area:sf: max. 6,096 x 2,032 mm xf: max. 4,064 x 2,032 mm gf: max. 3,050 x 1,525 mm
  • - Loading height per pallet:sf: max. 55 mm xf/gf: max. 90 mm
  • - Gross number of storage locations:sf: 24 pcs xf: 72 pcs gf: 64 pcs
  • - Net number of storage locations (loading height 1):sf: 21 pcs xf: 69 pcs gf: 64 pcs
  • - Longitudinal travel: 100 m/min
  • - Hoist: 23 m/min
  • - Pull: 20 m/min
  • - Station 2 manual loading trulaser 6030, long side sf/xf transport carriage with fixed height pneumatic trolley lock 2 x pneumatic pallet locks height top edge of pallet: approx. 900 mm max. Loading height sf: 55 mm max. Loading height xf: 90 mm 8 m rail above floor
  • - Station 3 loading trumatic 7000 sheetmaster connection, lengthwise xf/gf transport carriage with fixed height pneumatic trolley lock 2 x pneumatic pallet locks height top edge of pallet: approx. 850 mm max. Loading height xf: 90 mm max. Loading height gf: 90 mm 10 m track above ground
• Qualitative Machine Benefits:
  • - Racking block configuration 6 x rack blocks, arranged in single rows (0 + 6) 1 x sf rack blocks, arranged in single rows (0 + 1) 3 x xf shelf blocks, arranged in single rows (0 + 3) 2 x gf shelf blocks, arranged in single rows (0 + 2)
  • - Scissor lift table pluggable stops for common coordinate corner pneumatic carriage lock 3 x pneumatic pallet locks height top edge of pallet: approx. 1,200 mm
  • - Assembly requirements: at least 200 mm assembly clearance or at least 500 mm clearance with a crane passing over.
  • - Versatile loading options for manual and automated processes.

Payment Terms

• Payment in advance

•
