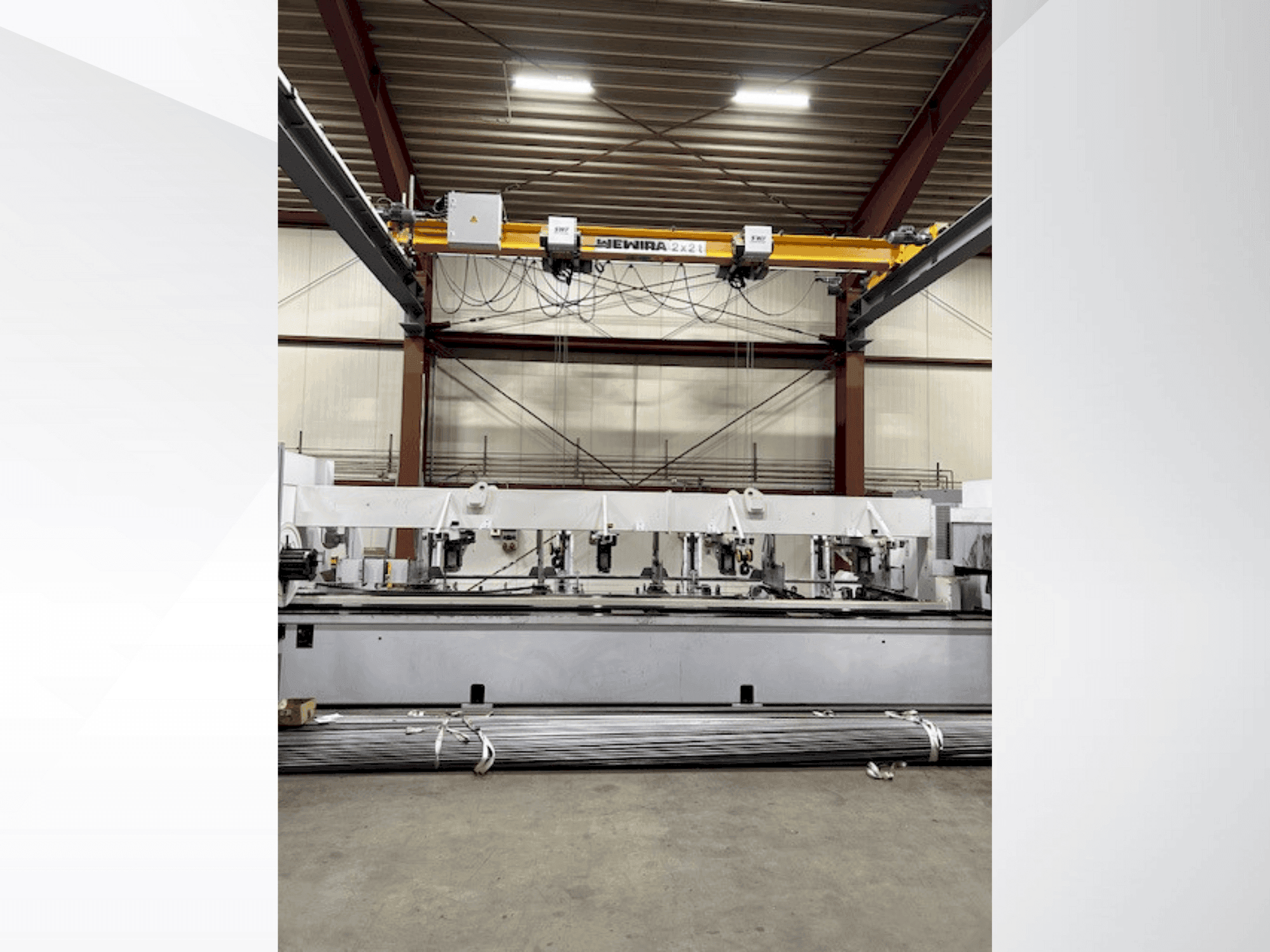

TRUMPF - Tru Laser Tube 3000 FiberDE-LAS-TRU-2020-00001

Additional Equipment

• - Cutting head: lens cutting head 150mm focal length
• - TruFibre2001 solid-state laser
• - machine bed for 6.5m material length
• - Loadmaster Tube for 6.5m raw material length
• - Laser cooling unit
• - Compact dust extractor
• - AdjustLine / NitroLine / FocusLine / ControlLine

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Machine can proces up to diameter 170mm
  • - Raw material length for automatic loading: 6500 mm (loadmaster tube 6. 5 m), 8000 mm (loadmaster tube 8. 0 m)
  • - Finished part length: 3000 mm (unloading unit 3 m), 4750 mm (unloading unit 4. 75 m), 6500 mm (unloading unit 6. 5 m)
  • - Maximum path weight: 18. 5 kg/m (standard/optional)
  • - Maximum raw material weight with automatic loading: 120 kg (loadmaster tube 6. 5 m), 148 kg (loadmaster tube 8. 0 m)
  • - Capable of processing a wide range of materials with varying thicknesses
  • - Copper: 3 mm
  • - Brass: 3 mm
  • - Max ingoing lengths 6500mm
  • - Max uitgoing lengths 4500mm
• Qualitative Machine Benefits:
  • - Versatile tube processing capabilities with options for larger diameters and longer raw material lengths

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
