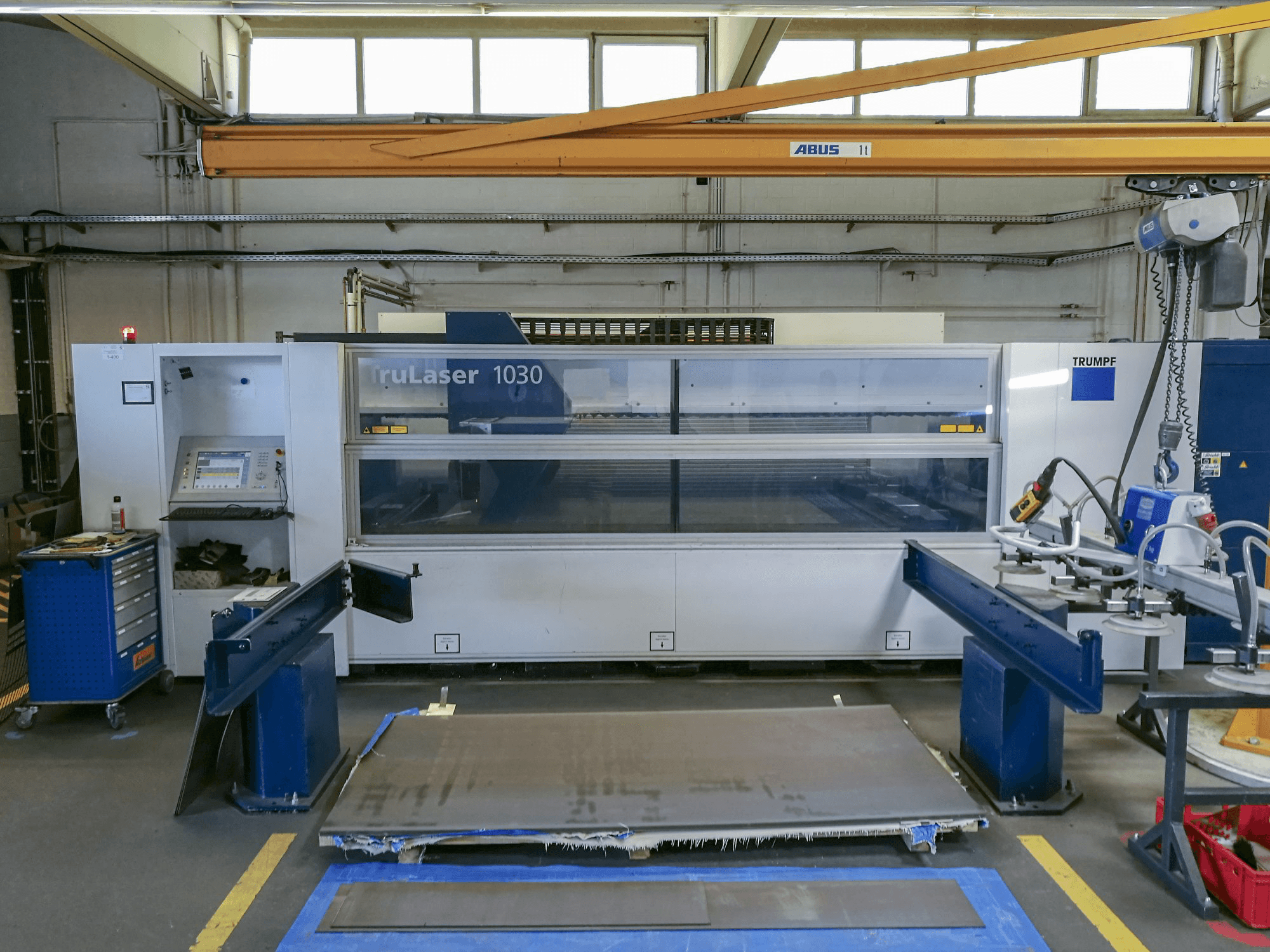

Trumpf TruLaser 1030 (L22) Laser Cutting Machine

This Trumpf TruLaser 1030 (L22) Laser Cutting Machine was manufactured in Germany in 2010 and has been operative for approximately 20000 production hours ever since. Operated through a B&R Automation PC620 Control unit, this machine has handled mainly steel of up to 8 mm of thickness in the past. With maintenance inspections every 6 months run by Trumpf, the equipment has a recently replaced tube, UV lamp, gas bottle and a new spare cutting head.

Overview

brand: TRUMPF
year: 2010
MODEL: TruLaser 1030 (L22)
production hours: 20000
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF TruLaser 1030 (L22)

General Data

Measurements width: 7369 mm
Measurements depth: 2723 mm
Measurements height: 2291 mm
Machine weight: 8900 kg

Control Unit

Model: Automation PC620

Main drive

Laserpower: 2 kW
Laser type: CO2
Laser brand: Trumpf

Movement

X-AXIS Movement: 3048 mm
Y-AXIS Movement: 1524 mm
Z-AXIS Movement: 76 mm

Workpiece

Workpiece weight: 575 kg

Max Material thickness

Steel: 15 mm
Stainless steel: 6 mm
Aluminum: 5 mm

Media

Main electronic connection: 400 V
Power consumption: 65 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
