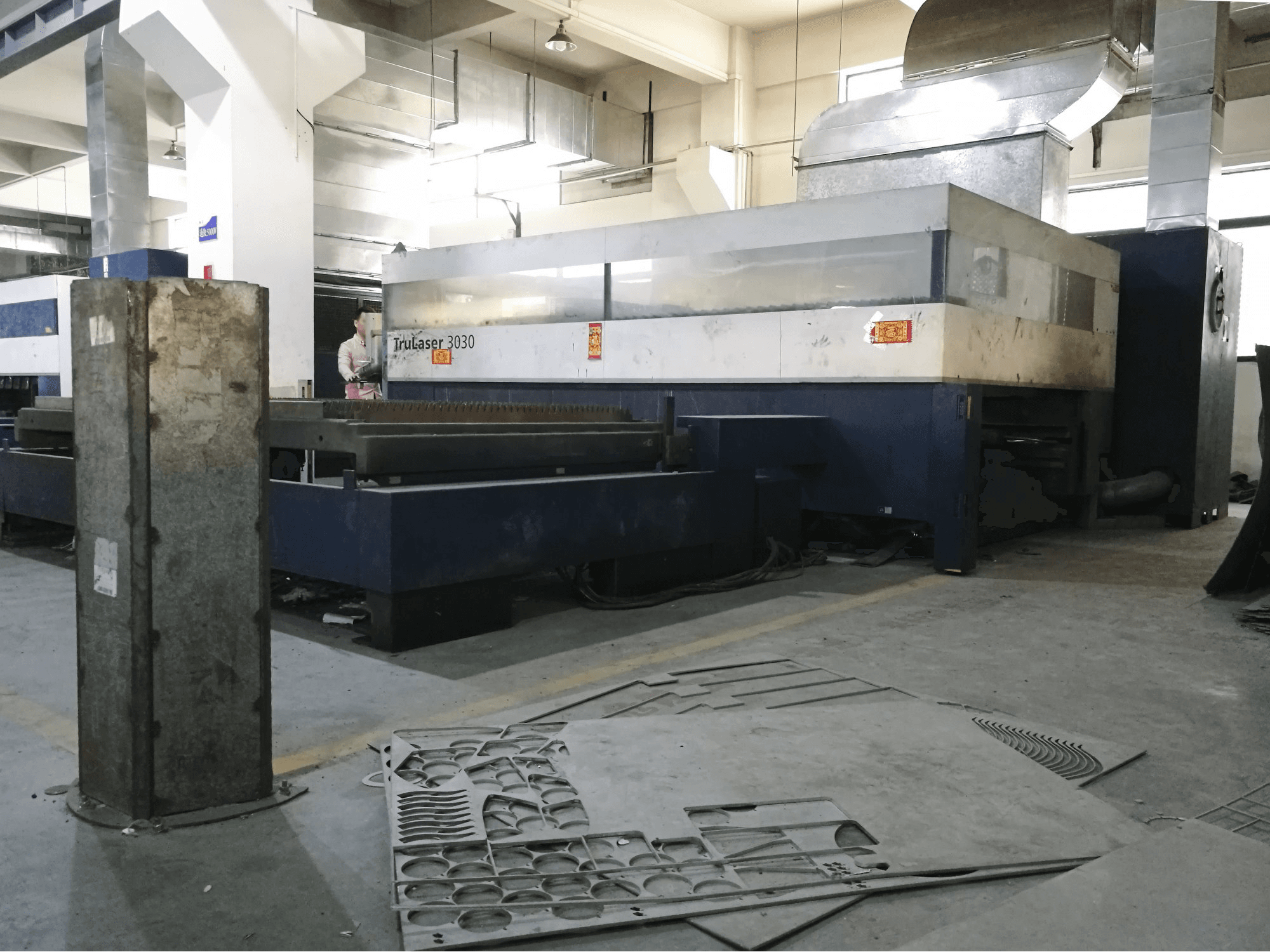

Trumpf TruLaser 3030 Laser Cutting Machine

This Trumpf TruLaser 3030 Laser Cutting machine from 2009 is the perfect equipment for heavy metal work. With a production record of 39178 hours, the model is operated through a SIEMENS SINUMERIK 840D Control unit and features a high-power German-manufactured quality laser. Two laser-cutting heads (of f=130 and f=250) are included as additional pieces.

Overview

brand: TRUMPF
year: 2009
MODEL: TruLaser 3030
production hours: 39178
application type: Cutting
Location: China
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

General Data

Measurements width: 9155 mm
Measurements depth: 3400 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Model: SINUMERIK 840D
Interface: USB, Ethernet
Brand: SIEMENS

Main drive

Number of spindles: 1
Laserpower: 5 kW

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 60 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Working Feed: 60 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 60 m/min
X-Y-Simultaneous Working Feed: 85 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 108 kW
Air pressure: 6 bar
He consumption: 13.1 l/h
CO2 consumption: 1.1 l/h
N2 consumption: 5.8 l/h
Lubrication tank: 95 L
Chip conveyor: Yes

Additional Equipment

- Laser cutting head f = 130
- Laser cutting head f = 250

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
