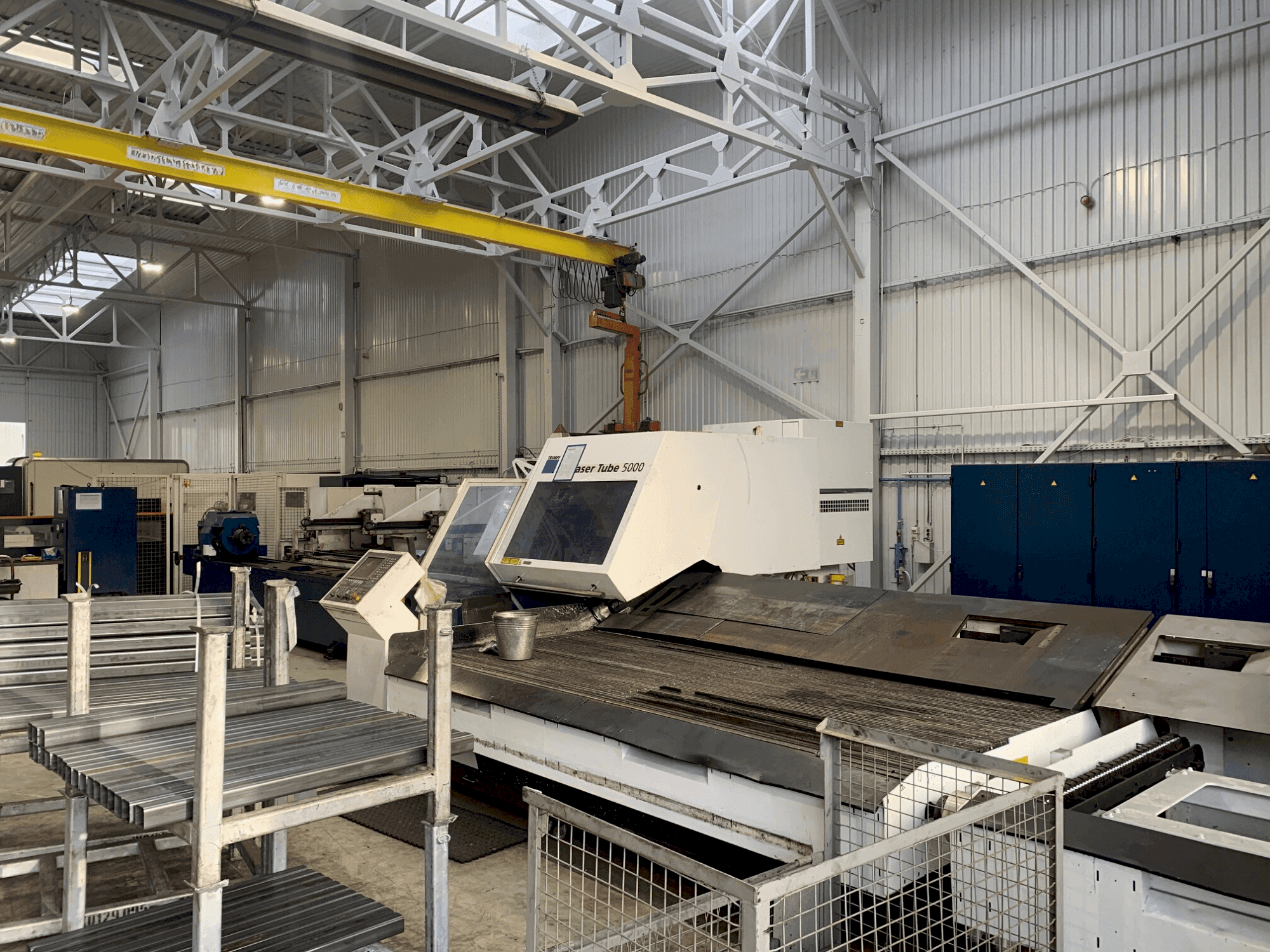

TRUMPF TruLaser Tube 5000 (2010) Laser cutting machine

This TRUMPF TruLaser Tube 5000 Laser cutting machine was manufactured in 2010 in Germany and has 16681 laser hours (63477 Operating hours). Dispose of a Trutops (version: 17.0.0.161) used Software. This machine has these laser gas consumption (Purity): He (4.6): 13 l/h, CO2 (4.5): 1 l/h, N2 (5.0): 6 l/h.

Overview

brand: TRUMPF
year: 2010
MODEL: TruLaser Tube 5000
production hours: 16681
application type: Cutting
Location: Hungary
machine type: Tube Cutting Machine
availability: Sold

Technical Information - TRUMPF TruLaser Tube 5000

General Data

Measurements width: 15800 mm
Measurements depth: 8100 mm
Measurements height: 2400 mm
Machine weight: 17500 kg

Main drive

Laserpower: 3200 KW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum machinable tube length: 6450mm
- - Minimum raw material length for automatic feeding: 3000mm
- - Minimum remaining tube length: 141mm
- - Maximum profile that can be cut; tube: dia 20-150 mm
- - Closed section: 95x95 mm
- - Max. Sheet thickness (carbon steel): 6 mm (safely 5mm in current condition)
- - Used software: trutops (version: 17. 0. 0. 161)
- - Tubedesign (version: 6. 0. 0. 1560 13 nov 2015)
- - Laser gas consumption (purity): he (4. 6): 13 l/h // co2 (4. 5): 1 l/h // n2 (5. 0): 6 l/h
- - Operating hours: 63477 // laser hours: 16681

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
