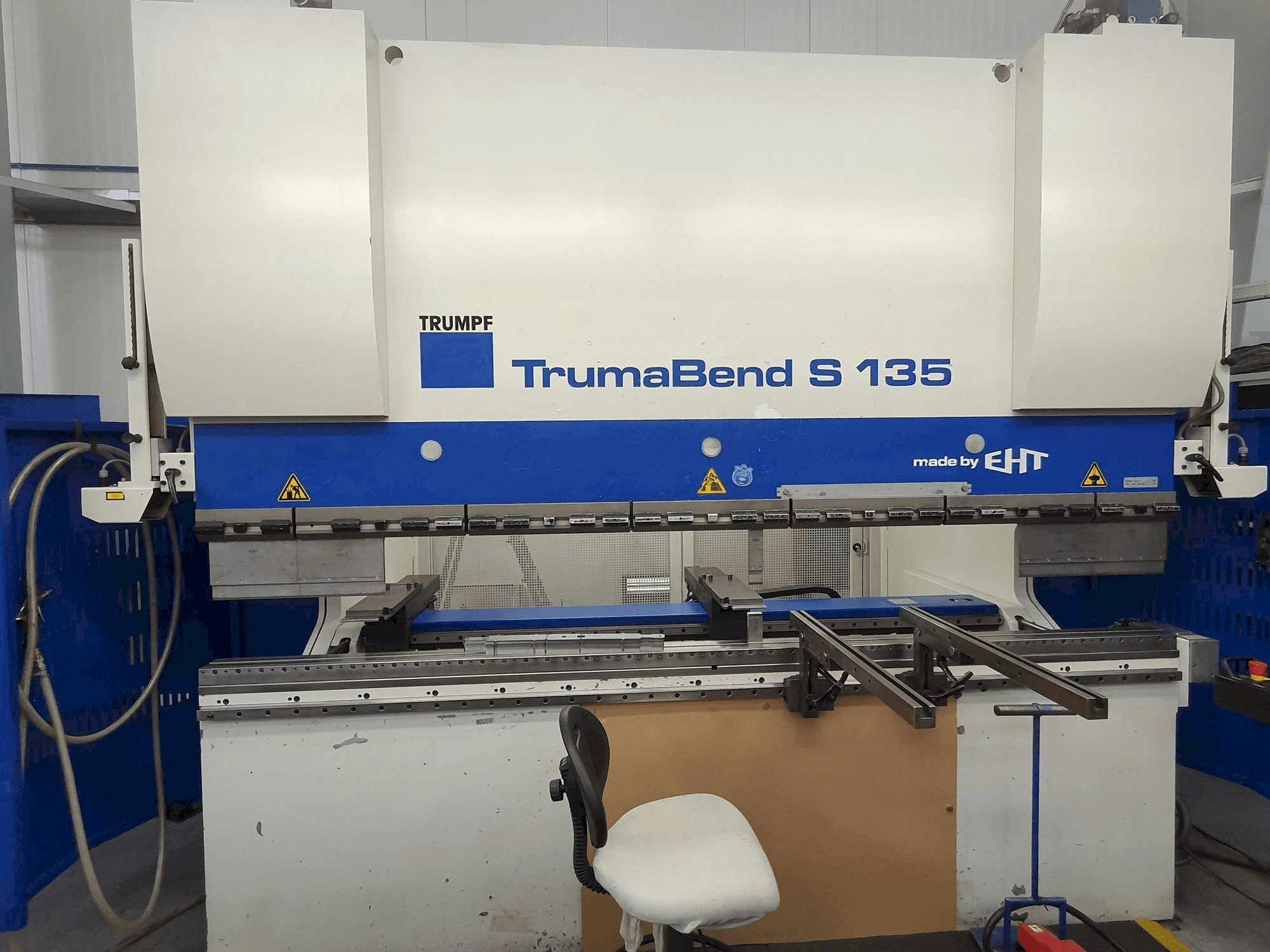

This Trumpf TrumaBend S135 Bending Machine was manufactured in Germany in the year 2005. It has a record of approximately 75000 power on hours. This 7 axis machine is equipped with a Delem DA-69DW control unit. It can work with a pressing force up to 135 kN and a bending length 3050 mm. This machine includes in the offer the upper tools. It is in very good working condition, still at production, with its full documentation available and ready for tests.

Overview

brand: TRUMPF
year: 2005
MODEL: TrumaBend S135
production hours: 75000
application type: Bending
Location: Poland
machine type: Press Brake
availability: Sold
control unit brand: DELEM

Technical Information - TRUMPF TrumaBend S135

General Data

Measurements width: 4300 mm
Measurements depth: 2200 mm
Measurements height: 3300 mm
Machine weight: 11260 kg

Control Unit

Model: DA-69DW
Brand: DELEM

Main drive

Bending length: 3050 mm
Stroke: 600 mm
Number of axis: 7

Media

Main electronic connection: 3 x 400 V / 50 Hz
Power consumption: 22 kW
Oil tank: 300 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc machine (y1, y2, x1 x2, r z1, z2 + v-crowning)
- - Cnc axis: y1, y2, x1, x2, r, z1, z2, v
- - Bending force: 135 kn
- - Back gauge fingers 2 pcs.
- - Distance between columns: 2550 mm
- - Distance table-slider: min. 320, max. 720 mm
- - Automatic clamping system for upper tools
- - Manual clamping system for dies
- - Upper tooling style: eht
- - Dies tooling style: trumpf
Qualitative Machine Benefits:
- - Machine in very good working condition.
- - Some tooling included in the offer (upper tools only).
- - It is still at the production.
- - Full documentation available
- - Ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
