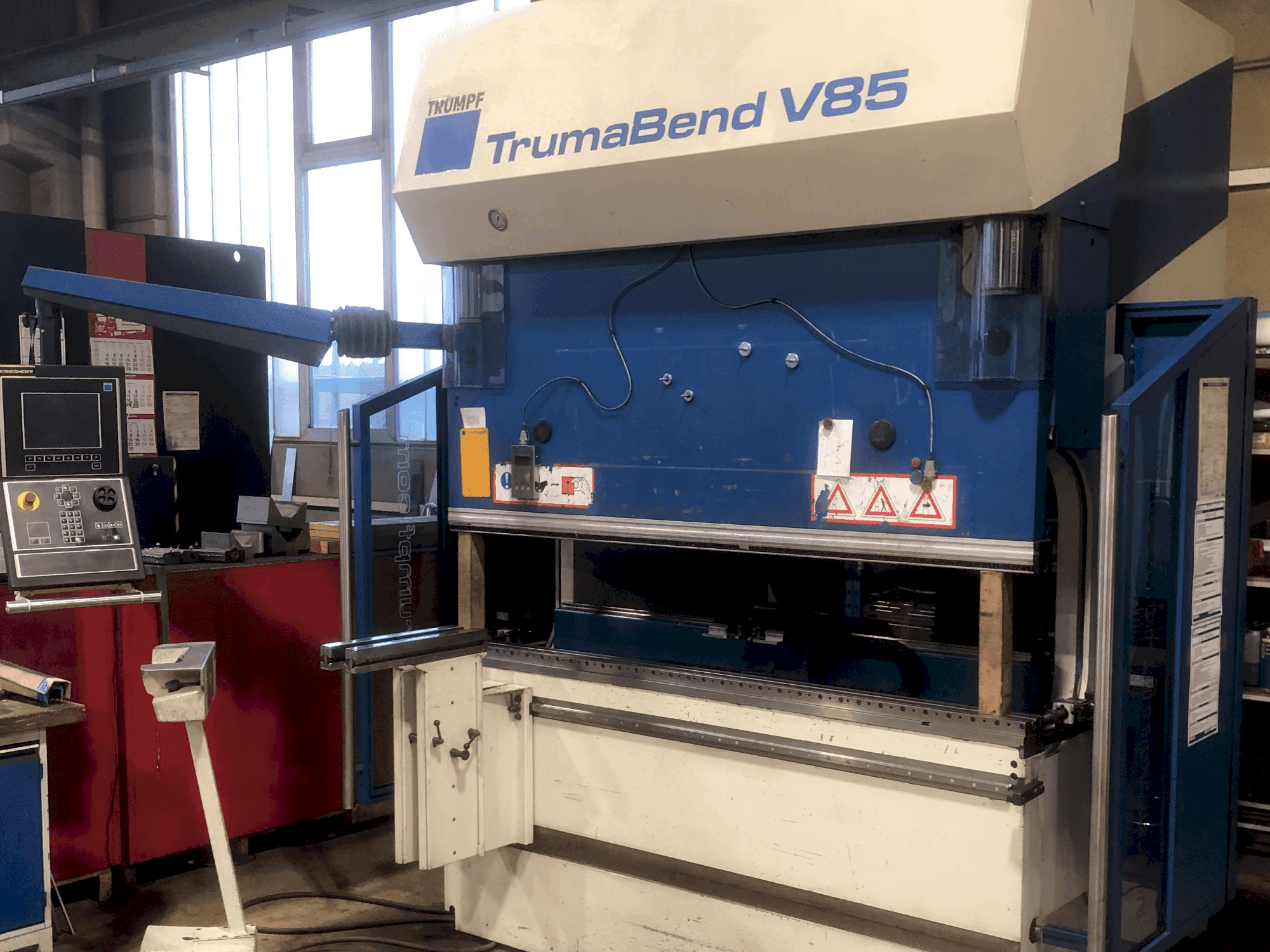

TRUMPF TrumaBend V85X Bending machine

This TRUMPF TrumaBend V85X Bending machine was manufactured in 2003 in Germany. It has a press force of 850 kN and a bending length of 2050 mm. Free upright clearance is 1750 mm. The standard equipment covers a sturdy machine frame, pressure beam with high bending strength and CNC backgauge with rack and pinion drive for X- and R-axis. As special features the machine has an increased installation height and stroke by 150 mm each to 535 mm, a 5-axes backgauge system, a hydraulic and hardened upper tool clamping, a hydraulic lower tool clamping, CNC crowning, a BendGuard safety device, a support front console and control cabinet climatization (for 2-, 4-axis backgauge systems). It comes with a bending tool package. License for software, ToPs 600 for bending, included. See attached original tech specs positions as PDF (German).

Overview

brand: TRUMPF
year: 2003
MODEL: TrumaBend V85X
production hours: 34599
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TrumaBend V85X

Control Unit

Brand: TRUMPF
Model: 2D graphic control
Interface: 10.4" color screen

Main drive

Pressing force: 850 kN
Bending length: 2050 mm
Crowning available: Yes
Number of axis: 5

Additional Equipment

- Tool Package
- Software ToPs 600 for bending: License included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Free upright clearance 1750 mm
- - Installation height 385 mm
- - Electrical equipment for three-phase current 400 v / 50 hz
- - Modern block hydraulics
- - Cnc backgauge with rack and pinion drive, for x- and r-axis, danger-free movement of the stop fingers from the front
- - "modufix" upper tool holder system, manual
- - Bottom tool holder for ev dies, manual clamping, displacement programmable
- - Safety device
Qualitative Machine Benefits:
- - Installation height and stroke increased by 150 mm each to 535 mm
- - Back gauge system 5 axes
- - Hydraulic and hardened upper tool clamping
- - Hydraulic lower tool clamping
- - Cnc crowning
- - Bendguard safety device
- - Support console
- - Front control cabinet
- - Climatization (for 2-, 4-axis backgauge systems)
- - Preparation for acb®

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

TRUMPF TrumaBend V85X (2007) - Tech Specs (GERMAN).pdf
