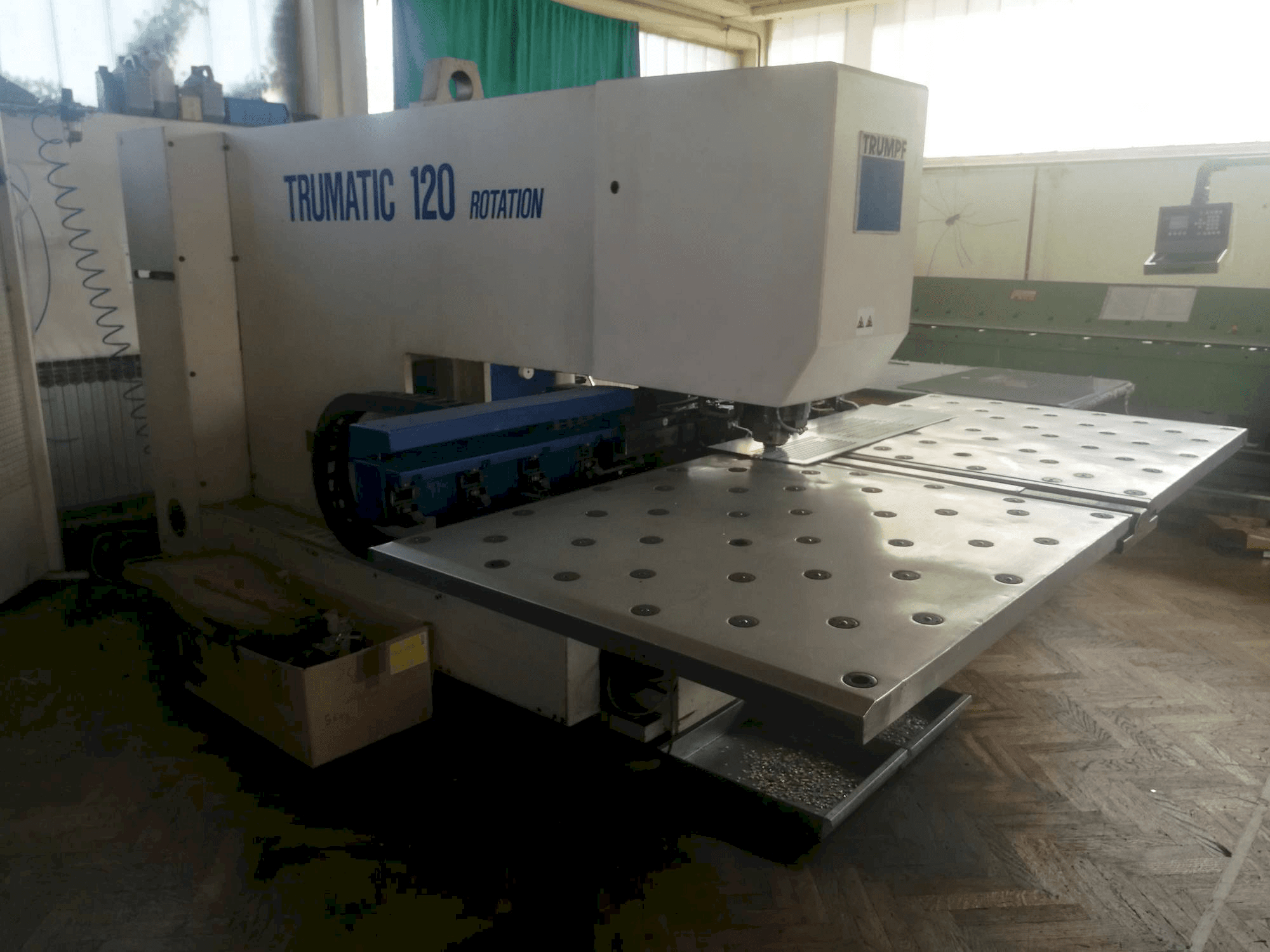

Trumpf Trumatic 120R Punching Machine

This Trumpf Trumatic 120R Punching Machine from 1990 was manufactured in Germany. It counts with a production record of 35000 working hours. Operated through a Bosch Trumagraph control unit. Works with a punching force of 150 kN.

Overview

brand: TRUMPF
year: 1990
MODEL: Trumatic 120R
production hours: 35000
application type: Punching
Location: Croatia
machine type: Turret Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 120R

General Data

Measurements width: 3500 mm
Measurements depth: 2360 mm
Measurements height: 2000 mm
Machine weight: 4300 kg

Control Unit

Model: Trumagraph
CNC main language: English
Brand: BOSCH

Main drive

Punching force: 150 kN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm

Tools

Number of index: 1
Number of stations: 1
Slots in storage: 9+2

Max Material thickness

Steel: 4 mm

Media

Main electronic connection: 420V 50Hz
Power consumption: 9 kVA

Additional Information

Machine history

Material type: Steel
material thickness: 1 mm
End product: Kitchenware
Industries: Kitchen elements, interiors

Machine Benefits

Technical Machine Benefits:
- - Fast sheet perforation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
