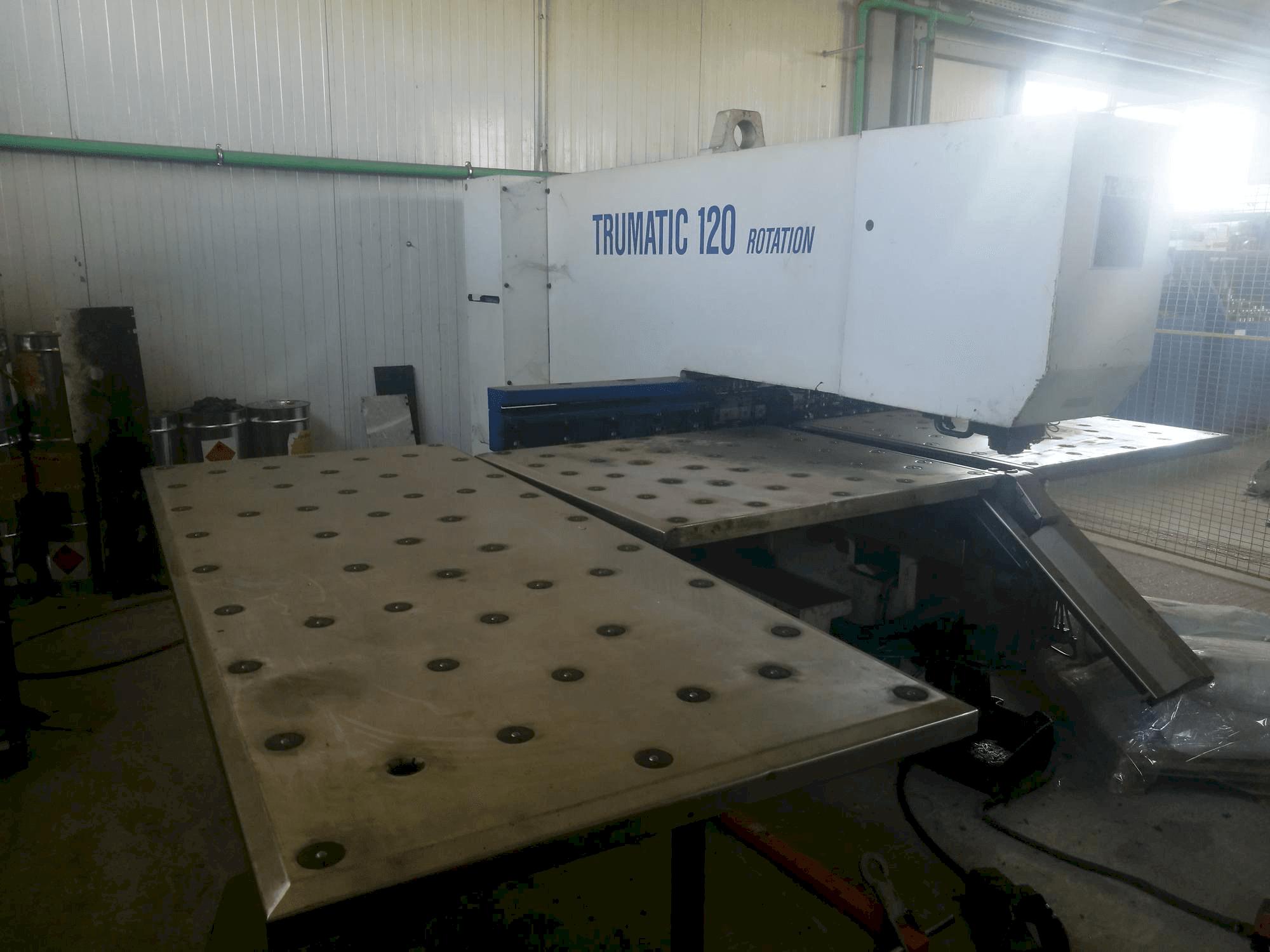

Trumpf Trumatic 120R Punching Machine

This Trumpf Trumatic 120R Punching Machine from 1992 was made in Germany. It counts with 32000 production hours since then. Operated through a BOSCH 220 control unit. This machine includes a punching force of 150 kN. During the past, it has mainly worked with steel up to 4 mm of thickness. Additional tools of 20 pcs and an extra side table.

Overview

brand: TRUMPF
year: 1992
MODEL: Trumatic 120R
production hours: 32000
application type: Punching
Location: Croatia
machine type: Turret Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 120R

General Data

Measurements width: 3800 mm
Measurements depth: 3500 mm
Measurements height: 2000 mm
Machine weight: 4300 kg

Control Unit

Model: 220
CNC main language: English
CNC language customizable: Yes
Brand: BOSCH

Main drive

Punching force: 150 kN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm

Tools

Number of index: 1
Number of stations: 1
Slots in storage: 9+2

Max Material thickness

Steel: 4 mm
Stainless steel: 2 mm

Media

Main electronic connection: 380V 50Hz
Pump drive power: 9 kVA

Additional Information

Machine history

Material type: Steel
material thickness: 1 mm
End product: Metal cabinets
Industries: Industrial interiors

Machine Benefits

Technical Machine Benefits:
- - Tool 20 pcs
- - Extra side table 2200x900mm
- - Fast sheet perforation
- - Have repositioning in x axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
